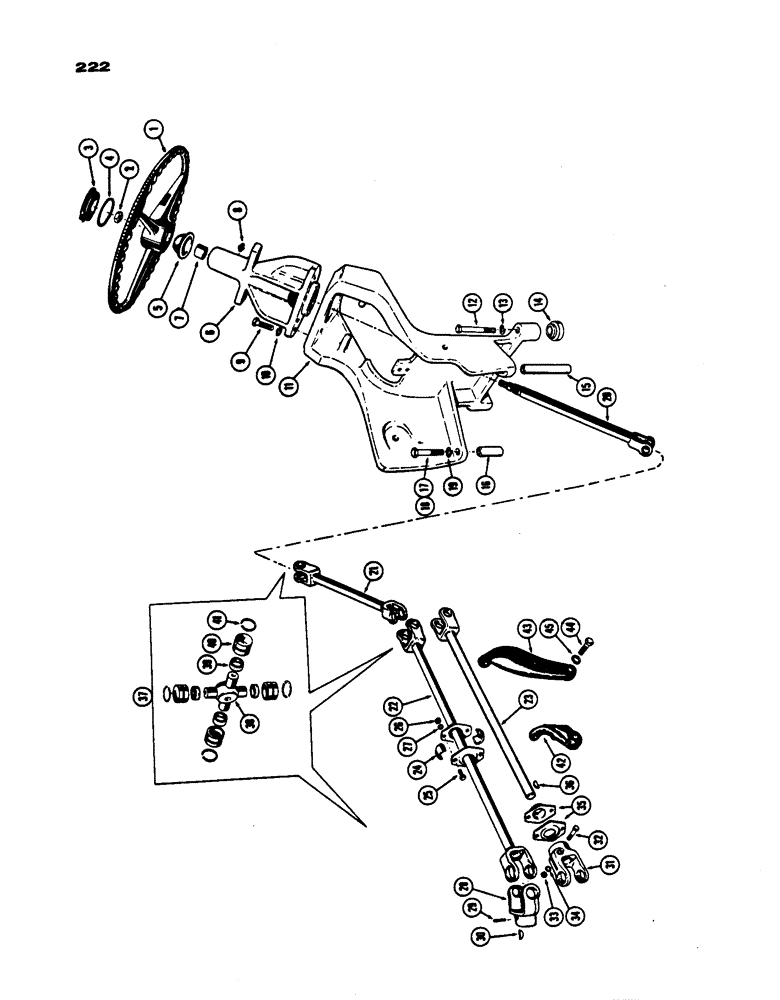

Запчасти Case IH 530 (222) - STEERING WHEEL AND LINKAGE, MODEL 530 GAS, PRIOR TO S/N 8262800 (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. half hex

1шт.

3

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel

1шт.

3

A20475

CAP

MEDALLION - (w/Power Steering)

1шт.

4

O10984AB

X

"O" RING - medallion

1шт.

5

G10742

SEAL

DUST, steering column

1шт.

6

G30258

COLUMN - steering (Before SN8218393) (incl. ref. 7)

1шт.

6

A36525

COLUMN - steering (SN8218393 and after) (incl. ref. 7)

1шт.

7

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft

2шт.

8

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4"-28 str.

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

G1332

SUPPORT - steering (Before SN8218393)

1шт.

11

A36178

SUPPORT - steering (SN8218393 and after)

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex hd.

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

A35627

BUSHING

- support (After SN8218393)

4шт.

15

G49614

PIPE - support (5" high) Before SN 8218393)

2шт.

15

G49624

SPACER

PIPE - support (4-7/8" High) SN8218393 and after

2шт.

16

G49613

PIPE - support (1-3/8" high) Before SN8218393 w/Case-O-Matic

1шт.

16

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

PIPE - support (1-1/4" high) SN8218393 and after w/Case-O-Matic

1шт.

17

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - 3/8" x 5-1/2" N.C. hex hd.

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

G45261

SHAFT - steering, upper section

1шт.

21

G45262

SHAFT - intermediate (w/o Power Steering)

1шт.

22

G45263

SHAFT - lower (See ref. 24)

1шт.

23

G45324

SHAFT - lower (Gen. Purpose w/power steering)

1шт.

24

G17025

CYLINDER END CAP

BEARING - lower shaft

2шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bearing Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

G10897

YOKE

- front universal (w/G45263)

1шт.

29

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

30

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - universal to steering gear

1шт.

31

G4517

YOKE - front universal (Gen. Purpose w/power steering)

1шт.

32

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8' x 1-1/2" N.F. hex hd.

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

G17024

FLANGE - bearing (only w/G45342)

2шт.

36

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Yoke to G45342 shaft #9, 3/16" x 3/4"

1шт.

37

VTA3227

X

KIT - universal joint (incl. ref. 38 - 41)

3шт.

38

NSS

NOT SOLD SEPARAT

SPIDER (Order VTA3227)

1шт.

39

V20414

WASHER - cork

4шт.

40

NSS

NOT SOLD SEPARAT

BEARING

4шт.

41

V20955

X

SNAP RING

4шт.

42

G1342

SUPPORT - bearing (w/Case-O-Matic)

1шт.

43

G1343

SUPPORT - bearing (w/dry clutch drive)

1шт.

44

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
