(148) - INSTRUMENT CLUSTER, AUTO-LITE, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE

Запчасти Case IH 530 (148) - INSTRUMENT CLUSTER, AUTO-LITE, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

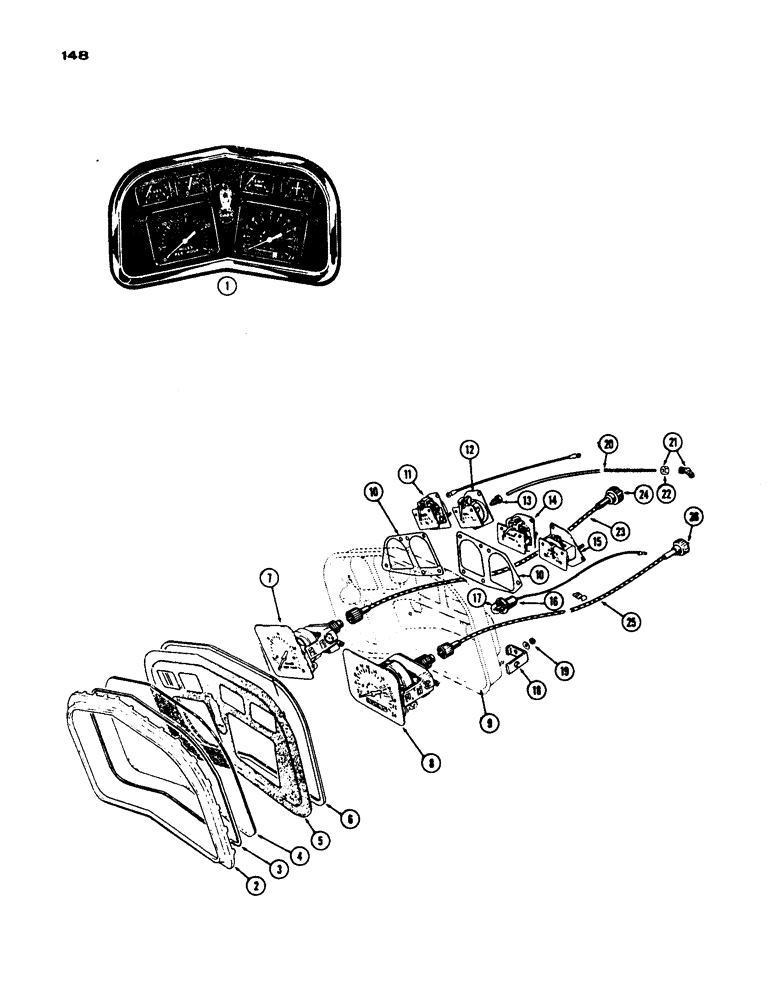

Схема запчастей Case IH 530 - (148) - INSTRUMENT CLUSTER, AUTO-LITE, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
21
4
3
8
5
1
12
16
26
10
7
13
19
15
9
18
11
24
2
25
17
22
14
10
20
6
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G44883

CLUSTER ASSY. - instrument (incl. ref. 2 - 17)

1шт.

2

A21488

X

RIM - glass clamp

1шт.

3

A21490

GASKET

- clamp

1шт.

4

A21489

LENS

GLASS

1шт.

5

A21491

PANEL

FACE

1шт.

6

A21492

GASKET - face

1шт.

7

A21500

GAUGE

SPEEDOMETER

1шт.

8

G44886

TACHOMETER

(includes hour meter)

1шт.

9

NSS

NOT SOLD SEPARAT

CASE

1шт.

10

A21498

GASKET - instrument case

2шт.

11

A21496

GAUGE

- fuel

1шт.

12

A21494

GAUGE

- engine oil pressure

1шт.

13

A21503

TUBE NUT

- tube to oil gauge

1шт.

14

A21497

GAUGE

- engine temperature

1шт.

15

A21495

AMMETER

1шт.

16

G44887

SOCKET - instrument lamp (incl. ref. 17)

3шт.

17

A14553

BULB

- 12 v (Mfrs. #57)

1шт.

18

G46038

CLAMP - cluster mounting

4шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex

4шт.

20

G46299

TUBE,0.125" OD x 57" L

- eng. block to oil guage (57")

1шт.

21

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- tube to block, 1/8" O.D. x 1/8" P.T. (incl. ref. 22)

1шт.

22

222-500

TUBE NUT,5/16" - 24 NPT

NUT

1шт.

23

G45230

HOUSING

CABLE ASSY.- speedometer drive (46") (incl. ref. 24)

1шт.

24

A24523

KIT

CABLE - replacement

1шт.

25

G45357

CABLE

- tach. drive (50-1/2") (incl. ref. 26)

1шт.

26

A24523

KIT

CABLE KIT - replacement

1шт.
