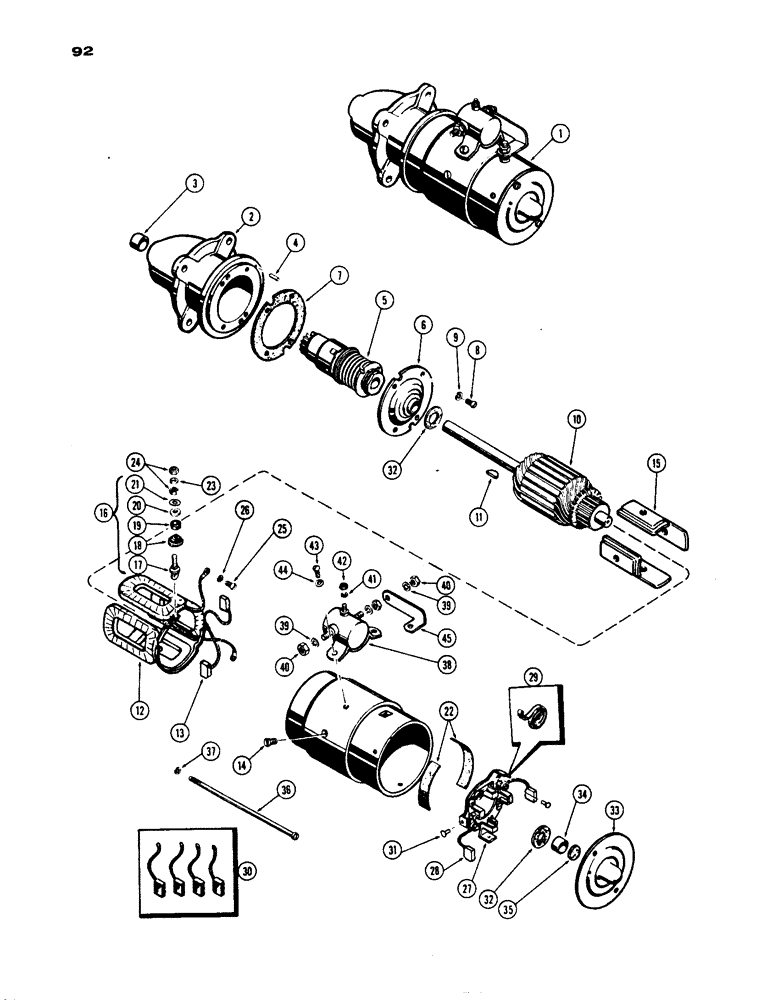

Запчасти Case IH 530 (092) - STARTING MOTOR PARTS, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A36581

STARTING MOTOR - (Auto-Lite #MDU-7102A) (incl. ref. 2 - 45)

1шт.

1

G44880

STARTING MOTOR - (Auto-Lite #MDU-7102) Order A36581 (incl. ref. 2 - 45)

1шт.

2

A25779

HOUSING ASSY. - drive end (incl. ref. 3 & 4)

1шт.

3

A25611

BEARING

- armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - housing locating

1шт.

5

A40272

DRIVE

ASSY. - bendix (for A36581) (incl. ref. 6 - 45)

1шт.

5

87421537

REMAN-STARTER DRIVE

Remanufactured Stater

1шт.

5

87421538

CORE-STARTER

Return Part Number, Starter

1шт.

5

A25600

X

DRIVE ASSY. - bendix (for G44880) (incl. ref. 6 - 45)

1шт.

6

G45478

PLATE

BEARING ASSY. - intermediate

1шт.

7

G46910

GASKET

- intermediate bearing

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- inter. brg. (#10-32 x 7/16" rd. hd.)

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A25607

ARMATURE

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

12

A25604

PACKAGE

COIL ASSY. - field (incl. ref. 13 & 14)

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) (See item 30)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

16

A40278

KIT

TERMINAL KIT - field (incl. ref. 17 - 22)

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating (in housing)

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - term. stud (metal)

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- term. stud (#8-32 x 5/16" rd. hd.)

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSY. - brush carrier (incl. ref. 28 & 29)

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) (See item 30)

2шт.

29

A40275

SPRING

SET - brush (Set of 4)

1шт.

30

A25603

BRUSH SET

- (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - (not illust.) (use thrust washers as required) (incl. ref. 32)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - inter. brg. & comm. end (1/32" thick)

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (3/64" thick)

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (5/64" thick)

2шт.

33

A40274

HEAD

ASSY. - commutator end (for A36581) (incl. ref. 34 - 45)

1шт.

33

A25605

HEAD

ASSY. - commutator end (for G44880) (incl. ref. 34 - 45)

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT - oiler

1шт.

36

NSS

NOT SOLD SEPARAT

BOLT - thru

2шт.

38

A20145

X

SOLENOID ASSY.

1шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Incl. ref. 39, 40, 41 & 42) 1/4"

2шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- solenoid (#10-32 x 1/4" rd. hd.)

2шт.

44

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

G46297

CONNECTOR, ELEC

CONNECTOR -, Serial Range: solenoid-field

1шт.
