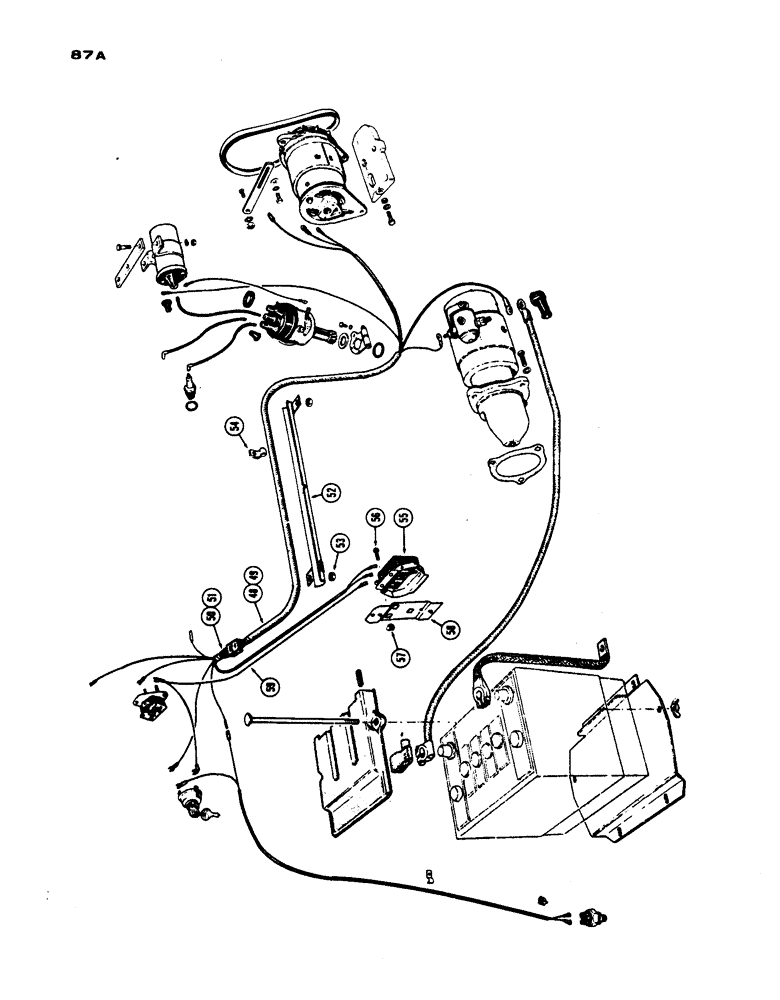

Запчасти Case IH 530 (087A) - ELECTRICAL SYSTEM, CONTD, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

48

G44063

CABLE - master, lower half (w/Auto-Lite) instrument cluster)

1шт.

49

A35304

HARNESS

CABLE - master, lower half (w/Stewart-Warner instrument cluster)

1шт.

50

G44062

CABLE

- master, upper half (w/Auto-Lite instrument cluster)

1шт.

51

A35305

CABLE

- master, upper half (w/Stewart-Warner instrument cluster)

1шт.

52

A20411

CONDUIT - master cable (gasoline tank)

1шт.

53

25-104

NUT,1/4"-20, G5

2шт.

54

O6193AB

CLIP - master cable (L.P.G. tank)

2шт.

55

G44878

REGULATOR

- voltage (Auto-Lite #VBO-6201C-1) Before SN8233766

1шт.

55

A36194

REGULATOR

- voltage (Prestolite #VBO-4201-H1) SN8233766 and after

1шт.

56

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4" x 1/2" truss hd. (plated)

3шт.

57

131-102

SPRING NUT,Ret, 1/4"-20

3шт.

58

G15617

BRACKET - voltage regulator

1шт.

59

G44051

CABLE PULLING GRIP

WIRE - voltage regulator to ammeter and starting switch (w/Auto-Lite cluster)

1шт.
