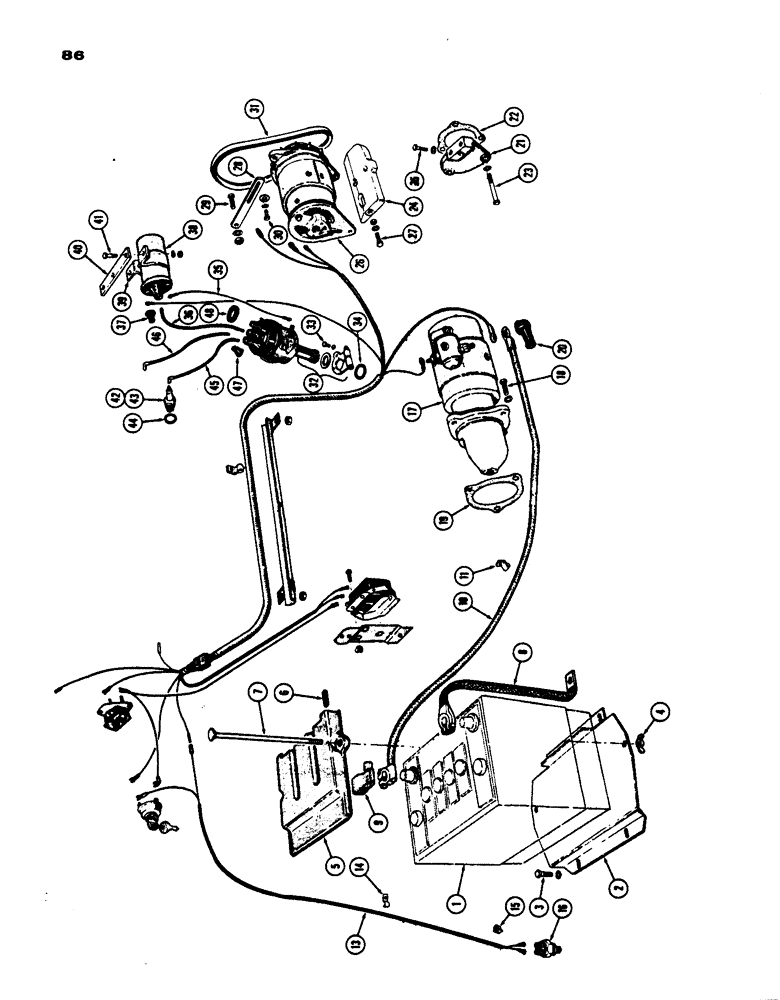

Запчасти Case IH 530 (086) - ELECTRICAL SYSTEM, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

11MS

BATTERY - 12 volt

1шт.

2

G30267

BASE

- battery

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

4шт.

4

G49020

NUT

- cover bolt (5/16" N.C. wing)

2шт.

5

G30268

COVER

- battery (incl. ref. 6)

1шт.

6

G46164

MOLDING - rubber

2шт.

7

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16" x 9" rd. hd. sq. neck

2шт.

8

VT2336

X

STRAP - ground (Before SN. 8233766)

1шт.

8

A36368

STRAP

- ground (SN 8233766 and after)

1шт.

9

G46879

COVER

- battery terminal

1шт.

10

G44049

CABLE

- batt. to solenoid (Before SN8233766)

1шт.

10

O9999AB

X

CABLE - batt. to solenoid (SN 8233766 and after)

1шт.

11

O3092AB

CLIP - cable to torque tube

1шт.

13

G44066

CABLE

- safety starting switch

1шт.

14

O7532

CLIP - cable to fuel tank

1шт.

15

G46047

CLIP - cable to battery hose

1шт.

16

A20990

SWITCH

- safety, neutral start (See Figure 198)

1шт.

17

G44880

STARTING MOTOR (Auto-Lite #MDU-7102) Order A36581.

1шт.

17

A36581

STARTING MOTOR - (Prestolite #MDU-7102A) For repairs see Figure 92)

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

19

G46873

GASKET

- starting motor (w/Case-O-Matic only)

1шт.

20

A21753

CAP

NIPPLE - terminal

1шт.

21

G2098

SUPPORT - gen. bracket (w/o power steering)

1шт.

22

VT3691

X

GASKET - support

1шт.

23

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

24

G2131

X

BRACKET - generator mounting

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

1шт.

26

G44879

GENERATOR - (Auto-Lite #GJT-7104A)Before SN8233766

1шт.

26

A36195

GENERATOR - (Prestolite #GJT-7403A)SN8233766 and after

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

28

G11344

STRAP - adjusting, generator

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

G46238

BELT,0.55" W x 17.78" L

Fan and Generator Drive 0.55" W x 17.78" L

1шт.

32

VTA2758

X

DISTRIBUTOR ASSY. - Prestolite #IAD-6003-2F Repair Figure 88

1шт.

33

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

34

VT4593

X

"O" RING -, Serial Range: distributor-block

1шт.

35

G13085

ELECTRICAL WIRE

CABLE - tension, coil to dist. (12")

1шт.

36

VT3534

X

CABLE - hi-tension, coil to dist. (11")

1шт.

37

G46803

BOOT

NIPPLE -, Serial Range: cable-coil

1шт.

38

A33438

COIL

- ignition (Prestolite #200758)

1шт.

39

G46106

BRACKET

CLAMP - coil

1шт.

187-540

SCREW - #10 x 1-1/2" self-tapping

1шт.

40

G11705

BRACKET

- coil mounting

1шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

42

G44840

SPARK PLUG

- 18 mm (gasoline) (incl. ref. 44)

4шт.

43

G44842

SPARK PLUG

- 18 mm (L.P.G.) (incl. ref. 44)

1шт.

44

G46839

GASKET

1шт.

45

VTA3354

X

WIRE - #2 and #3 spark plug (8-1/2")

2шт.

46

VT2879

X

WIRE - #1 and #4 spark plug (10-1/2")

2шт.

47

VT3561

X

NIPPLE -, Serial Range: wire-distributor

5шт.
