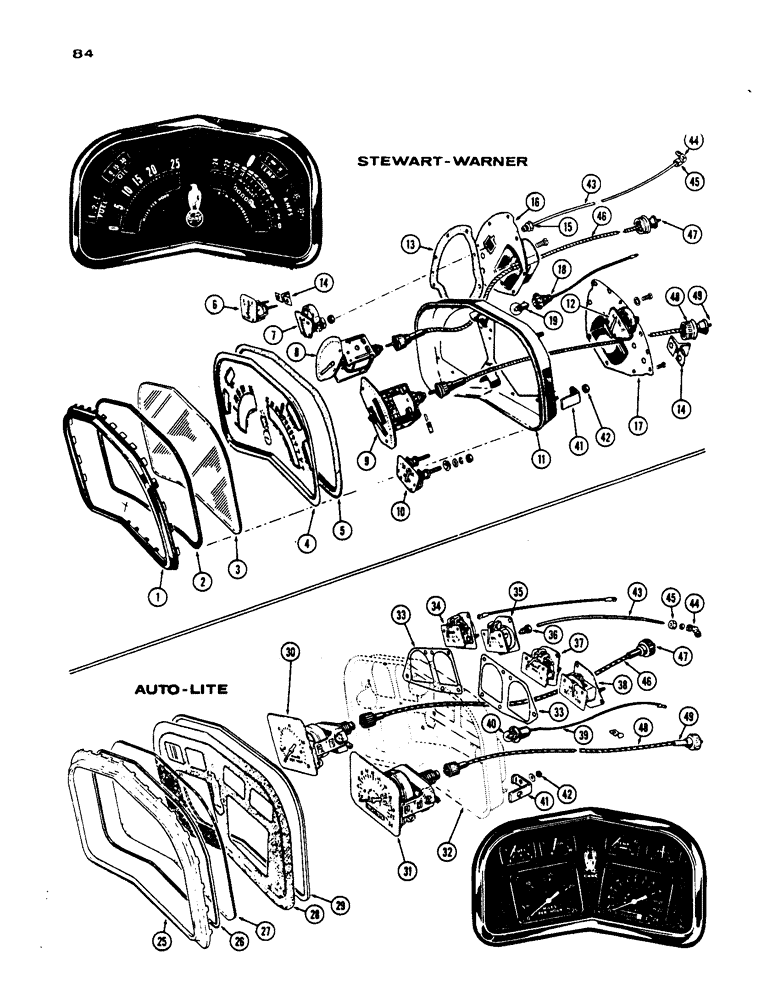

Запчасти Case IH 530 (084) - INSTRUMENT CLUSTER, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A35222

INSTRUMENT CLUSTER

CLUSTER ASSY. - (Stewart-Warner) (incl. ref. 1 - 17)

1шт.

1

G46028

RIM

- glass clamp

1шт.

2

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - clamp

1шт.

3

G46029

GLASS

1шт.

4

A23518

MAT

FACE

15шт.

5

G46033

GASKET

- face

1шт.

6

A23465

PANEL, INSTRUMENTS

GAUGE - fuel

1шт.

7

A35223

GAUGE - engine oil pressure

1шт.

8

A23458

SPEEDOMETER

1шт.

9

A23456

GAUGE

TACHOMETER (includes hour meter)

1шт.

10

A23464

PANEL, INSTRUMENTS

AMMETER

1шт.

11

G45018

CASE

- instrument

1шт.

12

A23459

PANEL, INSTRUMENTS

GAUGE - engine temperature

1шт.

13

G46034

GASKET - instrument case

2шт.

14

G46040

INSULATOR - gauge posts

3шт.

15

A21503

TUBE NUT

- tube to oil pressure gauge

1шт.

16

NSS

NOT SOLD SEPARAT

CASE - instrument

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - instrument

1шт.

18

A21501

ELECTRICAL WIRE

SOCKET - lamp

2шт.

19

A14553

BULB

- instrument (Mfrs. #57)

2шт.

G44882

CLUSTER ASSY. (Auto-Lite) (incl. ref. 25 & 26)

1шт.

25

A21488

X

RIM - glass clamp

1шт.

26

A21490

GASKET

- clamp

1шт.

27

A21489

LENS

GLASS (incl. ref. 28 - 40)

1шт.

28

A21491

PANEL

FACE

1шт.

29

A21492

GASKET - face

1шт.

30

A21500

GAUGE

SPEEDOMETER

1шт.

31

G44886

TACHOMETER

(includes hour meter)

1шт.

32

NSS

NOT SOLD SEPARAT

CASE

1шт.

33

A21498

GASKET -, Serial Range: instrument-case

2шт.

34

A21496

GAUGE

- fuel

1шт.

35

G44885

GAUGE - engine oil pressure

1шт.

36

A21503

TUBE NUT

- tube to oil gauge

1шт.

37

A21497

GAUGE

- engine temperature

1шт.

38

A21495

AMMETER

1шт.

39

G44887

SOCKET - instrument lamp (incl. ref. 40)

3шт.

40

A14553

BULB

- 12V. (Mfrs. #57)

1шт.

41

G46038

CLAMP - cluster mounting

4шт.

42

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex

4шт.

43

G46299

TUBE,0.125" OD x 57" L

- eng. block to oil gauge (57")

1шт.

44

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- tube to block, 1/8" O.D. x 1/8" P.T. (incl. ref. 45)

1шт.

45

222-500

TUBE NUT,5/16" - 24 NPT

NUT - 1/8" tube

1шт.

46

G45230

HOUSING

CABLE ASSY. - speedometer drive (46" long) (incl. ref. 47)

1шт.

47

A24523

KIT

CABLE KIT - replacement

1шт.

48

G45357

CABLE

ASSY. - tach. drive (50-1/2" long) (incl. ref. 49)

1шт.

49

A24523

KIT

CABLE KIT - replacement

1шт.
