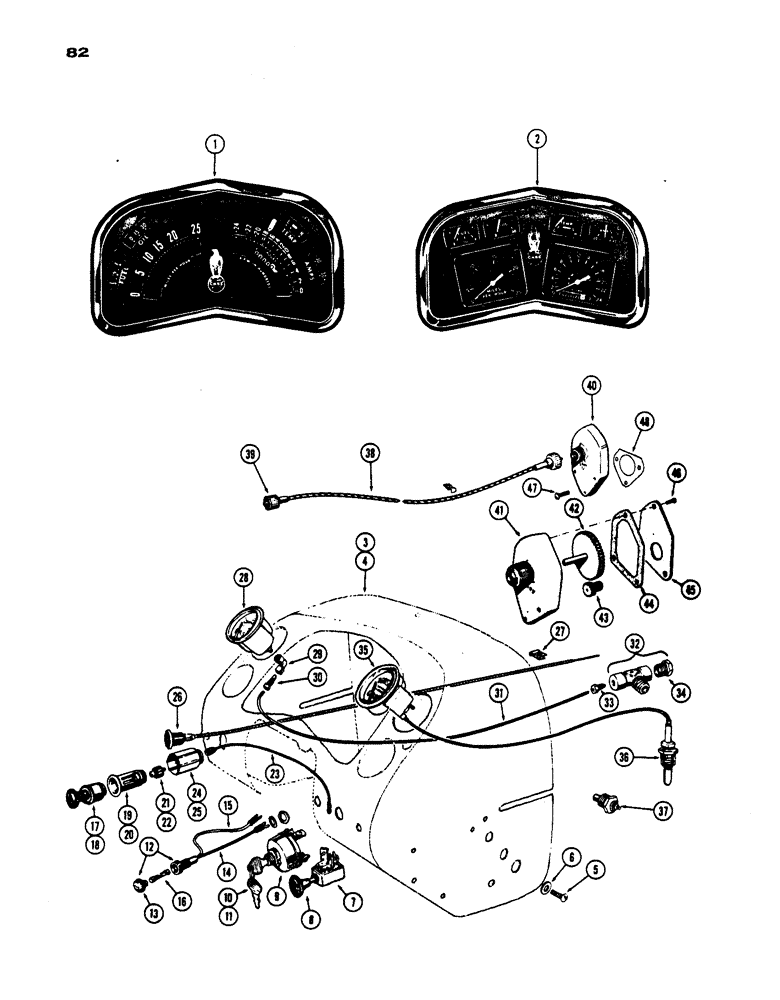

Запчасти Case IH 530 (082) - INSTRUMENT PANEL, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A35222

INSTRUMENT CLUSTER

CLUSTER ASSY. (Stewart-Warner) Repairs Figure 84

1шт.

2

G44882

CLUSTER ASSY. (Auto-Lite) Repairs Figure 84

1шт.

3

A35841

PANEL - instrument mounting (SN8218393 and after)

1шт.

4

G30394

PANEL - instrument mounting (Before SN8218393)

1шт.

5

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 1/4" x 3/8" N.F. truss hd.

3шт.

6

195-518

WASHER,1/4", SAE

- 1/4" plain

2шт.

7

G13142

IGNITION SWITCH

SWITCH - light (incl. ref. 8)

1шт.

8

G13141

KNOB

1шт.

9

A24511

SWITCH

- starting w/key (Gas) (incl. ref. 10)

1шт.

10

A24509

KEY

- ignition switch (set of 2) (See ref. 11)

1шт.

11

A20621

KEY

- starting "Indak" (Before SN8201105)

1шт.

12

G44876

HOLDER

FUSE HOLDER (includes wires) See A22874 (incl. ref. 13)

1шт.

12

A22874

HOLDER

FUSE HOLDER (wires separate) (incl. ref. 13)

1шт.

13

A10958

CAP

1шт.

14

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch (4")

1шт.

15

A22876

ELECTRICAL WIRE

WIRE - fuse to starting switch (8-1/2")

1шт.

16

223-20

FUSE,20 Amp, Type SFE

- (SFE 20)

1шт.

17

G13345

UNIT

LIGHTER UNIT - (Before SN8191147)

1шт.

18

G44919

LIGHTER UNIT - (SN8191147 and after)

1шт.

19

G13344

SOCKET - lighter (Before SN8191147) (incl. ref. 21 - 23)

1шт.

20

G44916

SOCKET

- lighter (SN8191147 and after) (incl. ref. 21 - 23)

1шт.

21

G44803

FUSE - lighter (Before SN8191147)

1шт.

22

G44918

FUSE - lighter (SN8191147 and after)

1шт.

23

G44022

ELECTRICAL WIRE

CABLE

1шт.

24

G46107

PIN

SHELL - clamping (Before SN8191147)

1шт.

25

G46381

SHELL - clamping (SN8191147 and after)

1шт.

26

A36578

ROD

- choke

1шт.

27

O4599AB

CLIP - choke rod to fuel tank

1шт.

28

G45257

GAUGE ASSY.

GAUGE - oil pressure, Case-O-Matic

1шт.

29

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- tube to gauge, 1/8" O.D. x 1/8" P.T. (incl. ref. 30)

1шт.

30

222-500

TUBE NUT,5/16" - 24 NPT

NUT - 1/8" tube

1шт.

31

G46292

TUBE,0.125" OD x 28" L

- gauge to Case-O-Matic valve

1шт.

32

G48005

TEE

- Case-O-Matic valve (incl. ref. 33 & 34)

1шт.

33

222-500

TUBE NUT,5/16" - 24 NPT

NUT - 1/8" tube

1шт.

34

222-506

TUBE NUT,11/16"-16

NUT - 1/2" tube

1шт.

35

G45258

ELECTRICAL GAUGE

GAUGE - oil temperature Case-O-Matic (incl. ref. 36)

1шт.

36

A23599

TUBE NUT

ADAPTER - temperature bulb

1шт.

37

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

38

G45357

CABLE

ASSY. - tach. drive (50-1/2" long) (incl. ref. 39)

1шт.

39

A24523

KIT

CABLE - (Replacement Kit)

1шт.

40

A36818

DRIVE

ASSY. - tachometer (incl. ref. 41 - 46)

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - (Order A36818)

1шт.

42

A36522

GEAR WHEEL

GEAR - driven

1шт.

43

G46306

GEAR WHEEL

GEAR - drive

1шт.

44

G46882

GASKET

- cover

1шт.

45

G46307

COVER

1шт.

46

182-1108

SCREW - #8-32 x 3/8" pan hd.

3шт.

47

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- drive to gen., #8-32 x 1" pan hd.

3шт.

48

G46878

GASKET

-, Serial Range: drive-generator

1шт.
