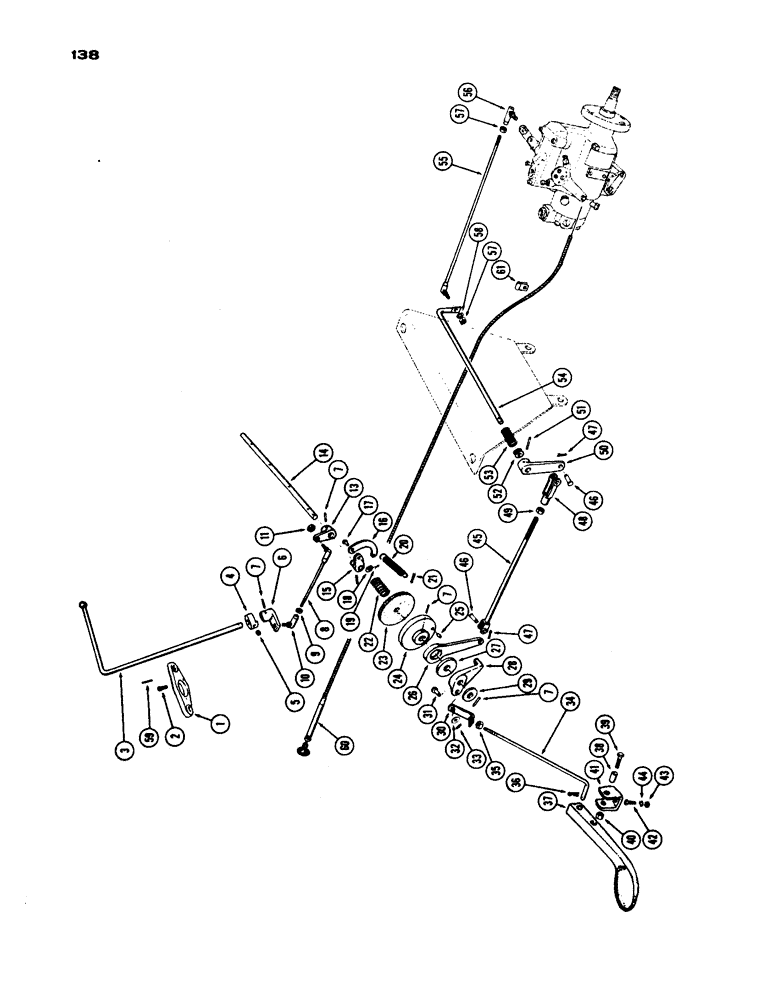

Запчасти Case IH 530 (138) - THROTTLE LINKAGE,BEFORE S/N 8218393, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

G1367

PLATE - lever support (Gen. Purp. w/power steering)

1шт.

2

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - support, 5/16" x 1" socket hd.

2шт.

3

G15828

HANDLE

LEVER - throttle control

1шт.

4

G30521

COLLAR - throttle lever (incl. ref. 5)

1шт.

5

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - set, 1/4" x 1/2" socket hd.

2шт.

6

G1337

LEVER

- lower, hand lever

1шт.

7

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

6шт.

8

G45232

BALL

LINK - ball-joint, lever to cross shaft (incl. ref. 9 & 10)

1шт.

9

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

10

G45350

BALL JOINT

BALL - joint

1шт.

11

131-902

NUT,1/4"-28

- lock, 1/4' N.F.

2шт.

13

G1335

LEVER - cross shaft actuating

1шт.

14

G15593

SHAFT - cross, rear

1шт.

15

G1334

LEVER - spring balance

1шт.

16

G15595

LEVER - over-center

1шт.

17

O1267FH

PIN - drilled

1шт.

18

95-4

WASHER,1/4"

- plain 1/4"

1шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

20

O1294FS

X

SPRING - over-center

1шт.

21

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22

G46214

SPRING

- compression, friction disc

1шт.

23

G10786

DISC

- friction

1шт.

24

G1333

PLATE - friction

1шт.

25

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

26

G15594

LEVER, main, throttle

1шт.

27

O369B

WASHER - spacer (1-11/16" O.D. x 57/64" I.D. #10 ga.)

1шт.

28

G1336

LEVER - actuating, foor throttle

1шт.

29

95-7

WASHER,7/16"

- plain 7/16"

1шт.

30

G16898

LINK - foot throttle lever

1шт.

31

O1403CH

RIVET - drilled

1шт.

32

95-6

WASHER,3/8"

- plain 3/8"

1шт.

33

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

34

G15696

ROD - foot throttle

1шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

36

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

37

G15692

PEDAL

- foot throttle

1шт.

38

G49618

BUSHING

- pedal pivot

1шт.

39

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex hd.

1шт.

40

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

41

G15694

BRACKET

- pedal

1шт.

42

77-512

SCREW

- 5/16" x 3/4" truss hd.

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

G46294

ROD - rear cross, Serial Range: shaft-front

1шт.

46

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

47

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

48

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod to front lever

1шт.

49

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

1шт.

50

G1356

LEVER - front cross shaft

1шт.

51

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

52

G49665

BUSHING - nylon, front cross shaft

1шт.

53

G48504

SPRING

- torsion, cross shaft

1шт.

54

G15642

SHAFT - cross, front

1шт.

55

G46293

ROD -, Serial Range: shaft-pump

1шт.

56

G11152

X

BALL JOINT -, Serial Range: rod-pump

1шт.

57

25-114

NUT,1/4"-28, G5

- 1/4" N.F. HEX.

3шт.

58

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

59

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , High idle stop 3/16" x 3/4", Slotted

1шт.

60

A36573

CONTROL

WIRE - fuel shut-off

1шт.

61

O2825AB

X

CLIP - shut-off wire

1шт.
