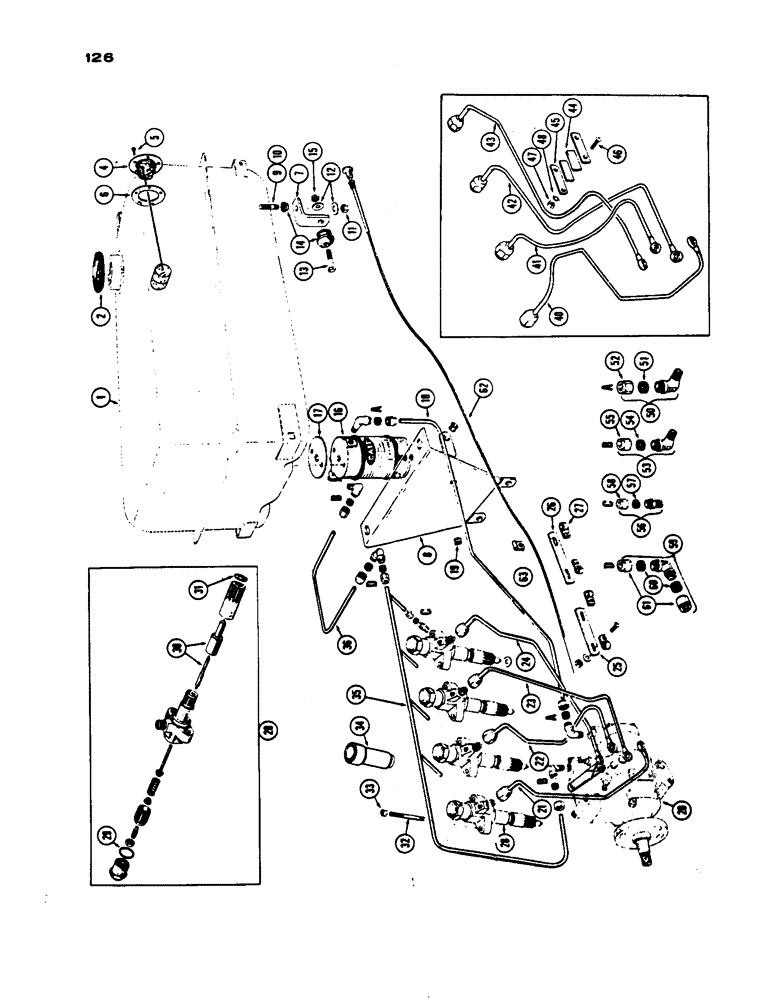

Запчасти Case IH 530 (126) - FUEL SYSTEM, BEFORE S/N 8212357, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

G30293

TANK - fuel

1шт.

2

A33558

CAP

- fuel tank

1шт.

4

A21438

X

SENDER - fuel gauge

1шт.

5

193-501

SCREW - #10-32 x 7/16" rd. hd. headers pt.

5шт.

6

A11822

GASKET

-, Serial Range: sender-tank

1шт.

7

G15765

SUPPORT - rear, fuel tank

1шт.

8

G30294

SUPPORT - front, fuel tank

1шт.

9

G10710

STUD

- front, fuel tank (3/8" x 1-3/4")

2шт.

10

O6328AB

STUD - rear, fuel tank (3/8" x 1-3/8")

1шт.

11

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.F. hex

3шт.

12

O30577HT

X

WASHER - tank stud

4шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

G45344

BUSHING

- support

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

16

G45254

SET OF PARTS

FILTER ASSY. - fuel (Repairs Figure 132)

1шт.

17

G46874

GASKET

-, Serial Range: filter-tank

1шт.

18

G45377

SPARE PART

LINE - fuel, Serial Range: filter-pump

1шт.

19

G49665

BUSHING - nylon, fuel line

1шт.

20

A35773

PUMP, FUEL INJECTION

PUMP ASSY. - (w/dry clutch) (Repairs page 135)

1шт.

20

A35774

PUMP

ASSY. - (w/Case-o-Matic) (Repairs page 135)

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE - #1 injector (Order ref. 40 thru 46)

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE - #2 injector (Order ref. 40 thru 46)

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - #3 injector (Order ref. 40 thru 46)

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE - #4 injector (Order ref. 40 thru 46)

1шт.

25

G15969

STRAP - tube support (Before eng. #2003318)

1шт.

26

G15970

STRAP - tube support (Before eng. #2003318)

1шт.

27

G46395

CLAMP - injection tube (Before eng. #2003318)

4шт.

28

A49056

NOZZLE CAP

INJECTOR ASSY. - fuel (incl. ref. 29, 30 & 31)

4шт.

29

G46885

GASKET

- injector cap

1шт.

30

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

31

G49068

GASKET

- seat, nozzle

1шт.

32

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

33

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

34

G11724

LINER

- injector nozzle

4шт.

35

G45376

TUBE - manifold, leak-off

1шт.

36

G45378

TUBE -, Serial Range: leak-off-filter

1шт.

40

A35058

TUBE

- #1 injector

1шт.

41

A35059

TUBE

- #2 injector

1шт.

42

A35060

TUBE

- #3 injector

1шт.

43

A35061

TUBE

- #4 injector

1шт.

44

O9973AB

X

CUSHION - tube clamp

2шт.

45

O9970AB

X

CLAMP - tube

2шт.

46

169-102

SCREW,Sl Fil Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

47

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

48

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

50

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T. (incl. ref. 51 & 52)

2шт.

51

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

52

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

53

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/8" P.T. (incl. ref. 54 & 55)

2шт.

54

222-103

SLEEVE,5/16" Tube

1шт.

55

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

56

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes Ref. 57 & 58 7/16"-24 x 1/8" NPTF

4шт.

57

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

58

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

59

222-133

ELBOW,90 Degree, 9/16"-24

- return tube, 5/16" tube (incl. ref. 60 & 61)

1шт.

60

222-103

SLEEVE,5/16" Tube

2шт.

61

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.

62

A36573

CONTROL

WIRE - fuel shut-off

1шт.

63

O2825AB

X

CLIP - shut-off wire

1шт.
