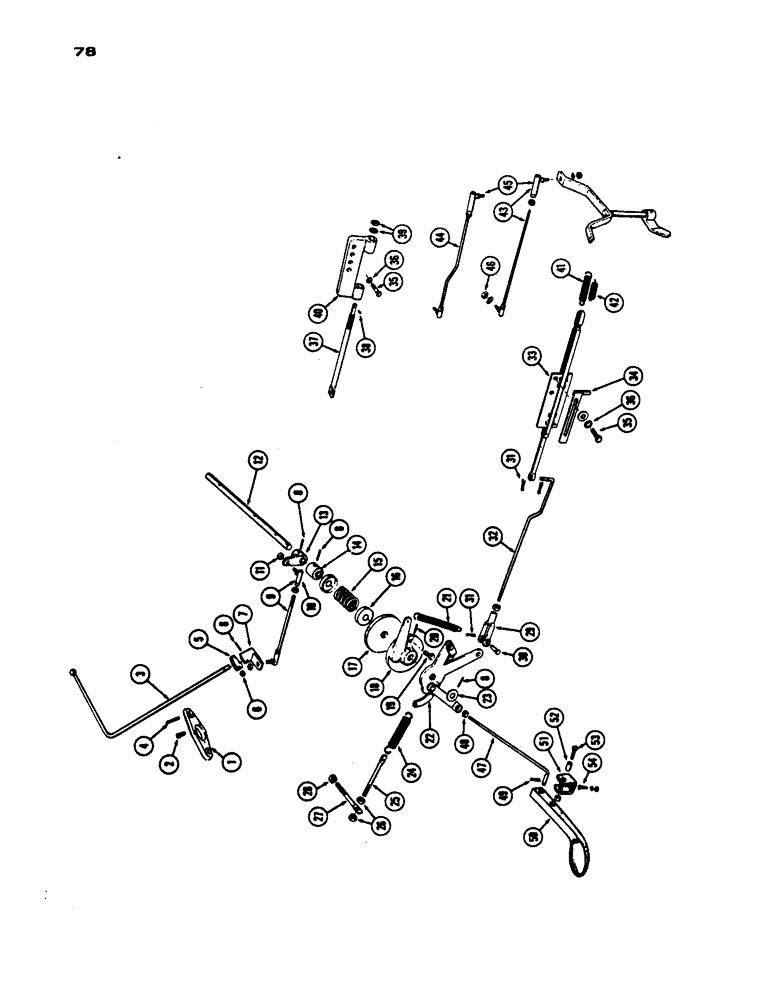

Запчасти Case IH 530 (078) - THROTTLE LINKAGE, S/N 6165270 THRU S/N 8218393 , PRIOR TO S/N 8262800530, MODEL, 159 SPARK IGN ENG (03) - FUEL SYSTEM

1

G1367

PLATE - support (Gen. Purpose w/power steering)

1шт.

2

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - 5/16" x 1" N.C. socket hd.

1шт.

3

G15828

HANDLE

- throttle control

1шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , High idle stop 3/16" x 3/4", Slotted

1шт.

5

G30521

COLLAR - lock

1шт.

6

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - set, 1/4" x 1/2" socket hd.

2шт.

7

G1337

LEVER

- lower, throttle handle

1шт.

8

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

4шт.

9

G45232

BALL

JOINT ASSY. - intermediate (incl. ref. 10)

1шт.

10

G45350

BALL JOINT

- adjusting

1шт.

11

131-902

NUT,1/4"-28

- lock, 1/4" N.F.

2шт.

12

G15593

SHAFT - cross

1шт.

13

G1335

LEVER - actuating, hand throttle

1шт.

14

G49633

SPACER - tension spring

1шт.

15

VT3372

SPRING

- tension, friction plate

1шт.

16

G49408

SEAT - tension spring

2шт.

17

G10786

DISC

- friction, cork

1шт.

18

A35228

PLATE

- friction (incl. ref. 19)

1шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

1шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

21

A37005

SPRING

- tension, throttle lever

1шт.

22

G30534

LEVER - governor control rod

1шт.

23

95-7

WASHER,7/16"

- plain 7/16"

1шт.

24

O1294FS

X

SPRING - lever to anchor bolt

1шт.

25

G49090

EYEBOLT - adjusting, tension spring

1шт.

26

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex

2шт.

27

G49091

EYEBOLT - anchor, tension spring

1шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

29

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - connecting link

1шт.

30

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke to lever 5/16" x .940"

1шт.

31

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

3шт.

32

G30535

LINK - connecting (w/wrought control rod)

1шт.

33

G45793

ROD

- governor control (See ref. 37)

1шт.

34

G45792

STOP

- governor control (wrought)

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

G11370

ROD - governor control (w/cast guide)

1шт.

38

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

39

131-412

NUT - lock, 7/16" N.F.

2шт.

40

G2133

GUIDE

- governor control rod

1шт.

41

G48515

SPRING

- outer, governor speed control

1шт.

42

A37005

SPRING

- inner, governor speed control

1шт.

43

G45310

ROD ASSY.

ROD - governor to carb. (gas) (incl. ref. 45)

1шт.

44

G45224

GASKET

ROD - governor to carb. (L.P.G.) (incl. ref. 45)

1шт.

45

A10329

BALL JOINT,1/4" - 28 x 1"

- rod to governor arm

1шт.

46

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

47

A35830

ROD

- connecting, foot throttle

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

49

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

50

G15692

PEDAL

- foot throttle

1шт.

51

G15694

BRACKET

- pivot, foot pedal

1шт.

52

G49618

BUSHING

- pivot, foot pedal

1шт.

53

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

1шт.

54

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd.

2шт.
