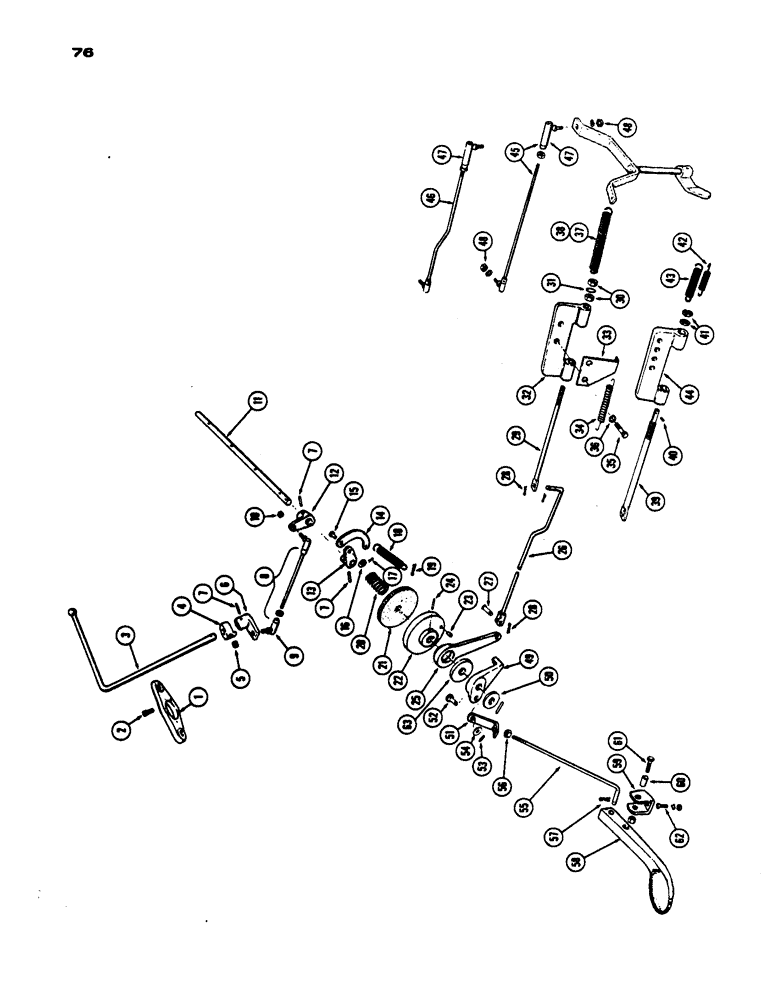

Запчасти Case IH 530 (076) - THROTTLE LINKAGE, BEFORE S.N. 6165270, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G1367

PLATE - support (Gen. Purpose w/power steering)

1шт.

2

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - 5/16" x 1" N.C. socket hd.

2шт.

3

G15828

HANDLE

- throttle control

1шт.

4

G30521

COLLAR - lock (incl. ref. 5)

1шт.

5

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - set, 1/4" x 1/2" socket hd.

2шт.

6

G1337

LEVER

- lower, hand lever

1шт.

7

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

4шт.

8

G45232

BALL

JOINT ASSY. - link (incl. ref. 9)

1шт.

9

G45350

BALL JOINT

- adjustable end

1шт.

10

131-902

NUT,1/4"-28

- lock, lever (1/4" N.F.)

2шт.

11

G15593

SHAFT - cross

1шт.

12

G1335

LEVER - cross shaft, hand actuated

1шт.

13

G1334

LEVER - balance, spring

1шт.

14

G15595

LEVER - over-center

1шт.

15

O1267FH

PIN - drilled (1/4" x 5/8")

1шт.

16

95-4

WASHER,1/4"

- plain 1/4"

1шт.

17

132-9

COTTER PIN

PIN - cotter, 1/16" x 1"

1шт.

18

O1294FS

X

SPRING - over-center lever

1шт.

19

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

G46214

SPRING

- tension, friction plate

1шт.

21

G10786

DISC

- cork, friction

1шт.

22

G1333

PLATE - fricton

1шт.

23

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

24

138-73

LOCK PIN,5/32" x 3/4", Slotted

ROLL PIN - 1/4" x 3/4"

1шт.

25

G15594

LEVER - cross shaft to throttle link

1шт.

26

G30538

LINK - connecting, throttle

1шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Throttle link to lever 5/16" x .940"

1шт.

28

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

3шт.

29

G15690

ROD - governor control (w/single spring)

1шт.

30

V20301

LOCK WASHER

NUT - adjusting (3/8" N.F.)

2шт.

31

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

32

G1226

GUIDE - control rod (See ref. 40)

1шт.

33

G11347

BRACKET - return spring

1шт.

34

VT2434

X

SPRING - return

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

VT3066

X

SPRING - governor (w/dry clutch)

1шт.

38

G47064

SPRING

- governor (w/Case-O-Matic)

1шт.

39

G11370

ROD - governor control (w/double spring)

1шт.

40

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

41

131-412

NUT - lock, 7/16" N.F. (Palnut)

2шт.

42

A37005

SPRING

- inner, governor

1шт.

43

G48515

SPRING

- outer, governor

1шт.

44

G2133

GUIDE

- governor control rod

1шт.

45

G45310

ROD ASSY.

ROD - governor to carb. (gasoline) (incl. ref. 47)

1шт.

46

G45224

GASKET

ROD - governor to carb (L.P.G.) (incl. ref. 47)

1шт.

47

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

48

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

49

G1336

LEVER - actuating, foot throttle

1шт.

50

95-7

WASHER,7/16"

- plain 7/16"

1шт.

51

G16898

LINK - foot throttle, Serial Range: rod-lever

1шт.

52

O1403CH

RIVET - drilled, link to lever (3/8" x 3/4")

1шт.

53

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

54

95-6

WASHER,3/8"

- plain 3/8"

1шт.

55

G15695

X

ROD - foot pedal

1шт.

56

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

57

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

58

G15692

PEDAL

- foot throttle

1шт.

59

G15694

BRACKET

- pivot, foot pedal

1шт.

60

G49618

BUSHING

- pivot, foot pedal

1шт.

61

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

1шт.

62

77-512

SCREW

- 5/16" x 3/4" truss hd.

2шт.
