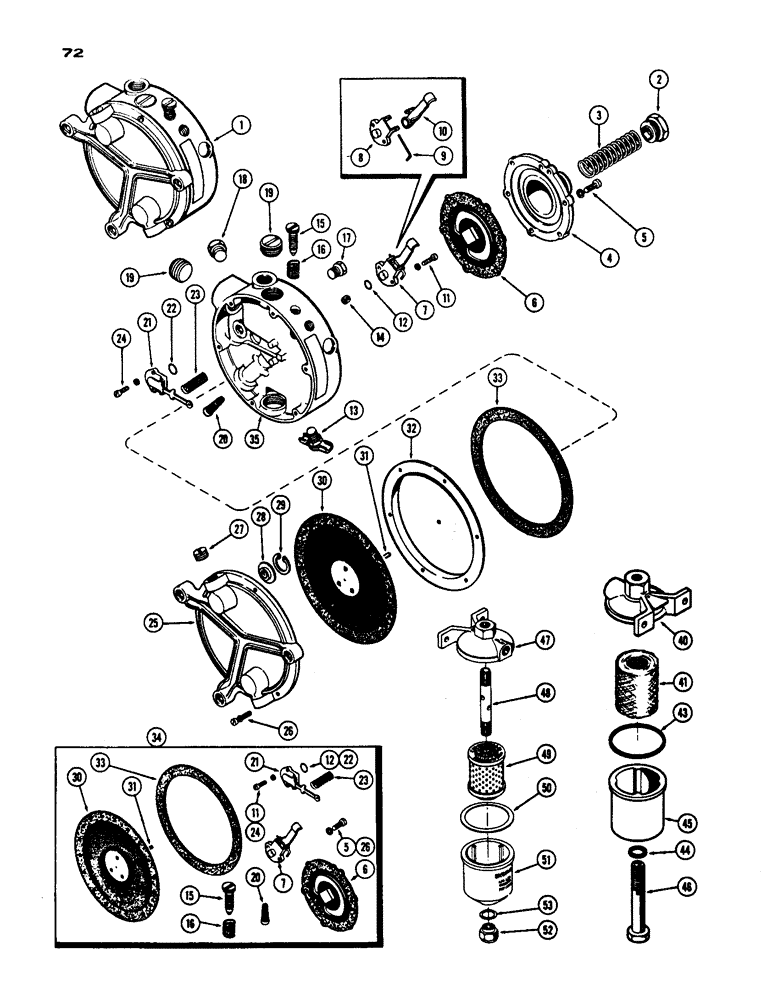

Запчасти Case IH 530 (072) - L.P.G. REGULATOR AND L.P.G FILTER, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G45345

REGULATOR ASSY. - L.P.G. (incl. ref. 2 - 33)

1шт.

2

B50112

GUIDE - regulator spring

1шт.

3

B50111

SPRING - pressure regulator

1шт.

4

B50110

COVER - pressure regulator

1шт.

5

B50035

SCREW - cover

6шт.

6

B50108

DIAPHRAGM ASSY. - regulator

1шт.

7

B50183

VALVE ASSY. - hi-pressure (incl. ref. 8)

1шт.

8

B50176

SEAT - valve

1шт.

9

B50159

PIN - pivot (incl. ref. 10)

1шт.

10

B50182

LEVER ASSY. - hi-pressure valve

1шт.

11

B50029

SCREW - hi-pressure valve

1шт.

12

B50179

GASKET - hi-pressure valve

1шт.

13

B50025

X

DRAIN COCK - 1/8"

1шт.

14

A40640

SCREW - orifice

1шт.

15

B50024

SCREW - idle adjusting

1шт.

16

B50022

SPRING - idle adjusting

1шт.

17

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd

1шт.

18

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 1/2"

2шт.

19

221-44

PLUG - pipe, 1/2" slotted

2шт.

20

B50168

STRAINER - fuel inlet

1шт.

21

B50181

VALVE - lo-pressure

1шт.

22

B50179

GASKET - lo-pressure valve

1шт.

23

B50121

SPRING - lo-pressure valve

1шт.

24

B50029

SCREW - lo-pressure valve

1шт.

25

A40169

PLATE - back cover

1шт.

26

B50035

SCREW - cover

6шт.

27

B50058

PLUG - brass pipe, 1/8" slotted

1шт.

28

A40642

VALVE - compensator

1шт.

29

B50086

RING - valve retaining

1шт.

30

B50180

DIAPHRAGM

ASSY. - lo-pressure (incl. ref. 31)

1шт.

31

B50178

PIN - push

1шт.

32

B50175

PLATE - partition

1шт.

33

B50177

GASKET - partition plate

1шт.

34

B50052

REPAIR KIT - regulator (includes ref. 5, 6, 7,11, 12, 15, 16, 20, 21, 22, 23, 24, 26, 30, 31 & 33)

1шт.

A24535

FILTER

ASSY, L.P.G. (incl. ref. 40, 41, 43, 44, 45 & 46)

1шт.

40

A24536

TOP - L.P.G. filter

1шт.

41

A24616

KIT

ELEMENT KIT, L.P.G. filter (incl. ref. 43 & 44)

1шт.

43

A24539

GASKET

- filter top, L.P.G. filter

1шт.

44

A24538

GASKET

- bolt to housing, L.P.G. filter

1шт.

45

A24537

HOUSING - filter element, L.P.G.

1шт.

46

A24541

BOLT - top to housing, L.P.G. filter

1шт.

O8837AB

FILTER ASSY. - (Order A24535), L.P.G. (incl. ref. 47 - 53)

1шт.

47

B50129

TOP - L.P.G. filter

1шт.

48

B50131

STUD, L.P.G. filter

1шт.

49

B50132

X

ELEMENT, L.P.G. filter

1шт.

50

B50133

GASKET, L.P.G. filter

1шт.

51

B50130

HOUSING - L.P.G. filter

1шт.

52

B50135

NUT, L.P.G. filter

1шт.

53

B50134

GASKET - nut, L.P.G. filter

1шт.
