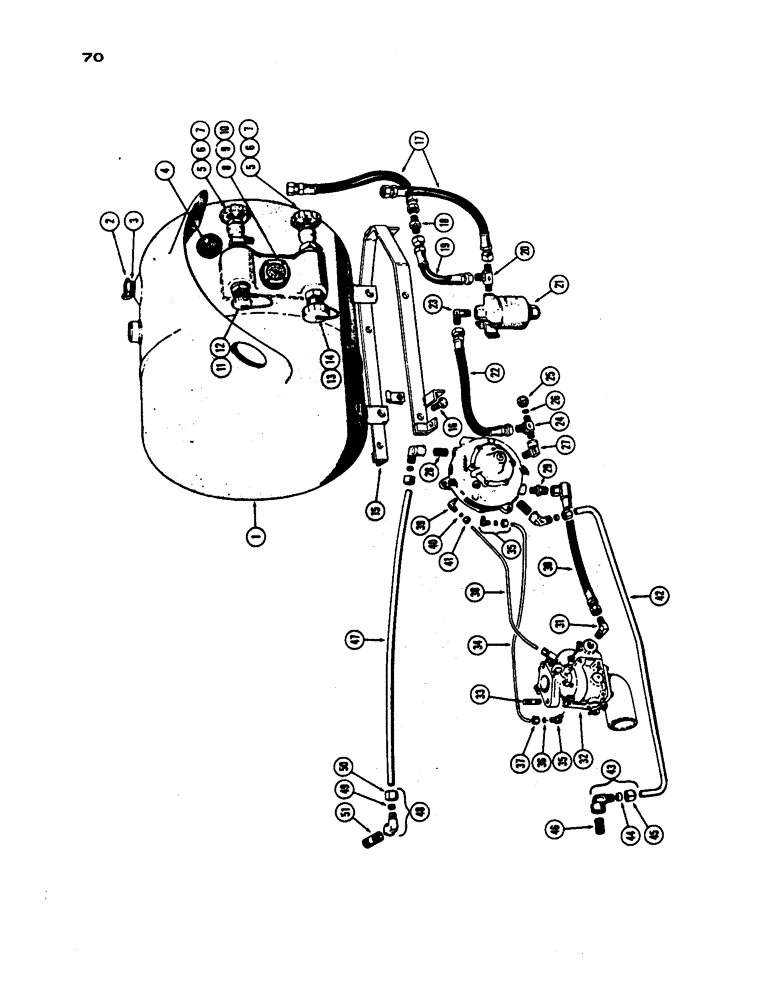

Запчасти Case IH 530 (070) - L.P.G. TANK AND SYSTEM, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G13902

TANK ASSY. - fuel (incl. ref. 2 - 14)

1шт.

2

A20696

SEAL

VALVE ASSY. - safety (incl. ref. 3)

1шт.

3

A20697

WIPER

CAP - weather

1шт.

4

4008AA

GAUGE - fixed level

1шт.

5

4003AA

X

VALVE ASSY. - outlet, liquid & vapor (incl. ref. 6 & 7)

2шт.

6

B52058

WHEEL - hand, valve

1шт.

7

B52057

SCREW - hand wheel

1шт.

8

G44848

GAUGE - fuel (incl. ref. 9 & 10)

1шт.

9

G46848

GASKET - fuel gauge

1шт.

10

177-133

SCREW - 1/4" x 5/16" filister hd.

4шт.

11

A9320

VALVE - vapor return (incl. ref. 12)

1шт.

12

A40630

CAP & CHAIN ASSY.

1шт.

13

4323AA

VALVE - liquid filler (incl. ref. 14)

1шт.

14

A40631

CAP & CHAIN ASSY.

1шт.

15

G30438

FRAME - tank support

1шт.

16

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex hd.

4шт.

17

G45118

HOSE - tank to filter (11" long)

2шт.

18

222-714

FITTING

UNION - hose (3/8" O.D. x 5/8" -18)

1шт.

19

G45117

HOSE - tank to filter (6" long)

1шт.

20

222-885

TEE - hose to filter (3/8" O.D. x 1/4" P.T.)

1шт.

21

A24535

FILTER

- fuel (Repairs Figure 72)

1шт.

22

G45118

HOSE - filter to regulator (11" long)

1шт.

23

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- hose to filter (3/8" O.D. x 1/2" P.T.)

1шт.

24

222-885

TEE - hose to regulator (3/8" O.D. x 1/4" P.T.)

1шт.

25

222-983

CAP - tee fitting (3/8" O.D.)

1шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

27

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- street (1/4" P.T.)

1шт.

28

G45345

REGULATOR ASSY. - (Repairs Figure 72)

1шт.

29

222-816

UNION - hose to regulator (1/2" O.D. x 1/2" P.T.)

1шт.

30

G45156

HOSE -, Serial Range: regulator-carburetor

1шт.

31

222-775

ELBOW - hose to carburetor (1/2" O.D. x 1/2" P.T.)

1шт.

32

G45749

CARBURETOR - (Order A36922 when depleted)

1шт.

32

A36922

CARBURETOR - (Repairs Figure 74)

1шт.

33

G10710

STUD

-, Serial Range: carb.-manifold

2шт.

34

G46333

LINE - balance, Serial Range: carb.-regulator

1шт.

35

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- balance line (5/16" O.D. x 1/8" P.T.) (incl. ref. 36 & 37)

2шт.

36

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

37

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

38

G46332

LINE - idle, Serial Range: carb.-regulator

1шт.

39

222-616

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

- idle line (3/16" O.D. x 1/8" P.T.) (incl. ref. 40 & 41)

1шт.

40

222-651

SLEEVE,3/16" Tube, Comp

1шт.

41

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, 3/16" tube 3/8"-24, 45º Fl, Comp

1шт.

42

G46334

LINE - water, regulator to lower elbow

1шт.

43

222-636

ELBOW - water line (1/2" O.D. x 3/8" P.T.) (incl. ref. 44 & 45)

2шт.

44

222-656

SLEEVE

- 1/2" tube

1шт.

45

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

NUT - 1/2" tube

1шт.

46

G16017

X

NIPPLE - water line elbow

2шт.

47

G46335

LINE - water, upper, Serial Range: elbow-regulator

1шт.

48

222-636

ELBOW - water line (1/2" O.D. x 3/8" P.T.) (incl. ref. 49 & 50)

2шт.

49

222-656

SLEEVE

- 1/2" tube

1шт.

50

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

NUT - 1/2" tube

1шт.

51

G16017

X

NIPPLE - water line elbow

2шт.
