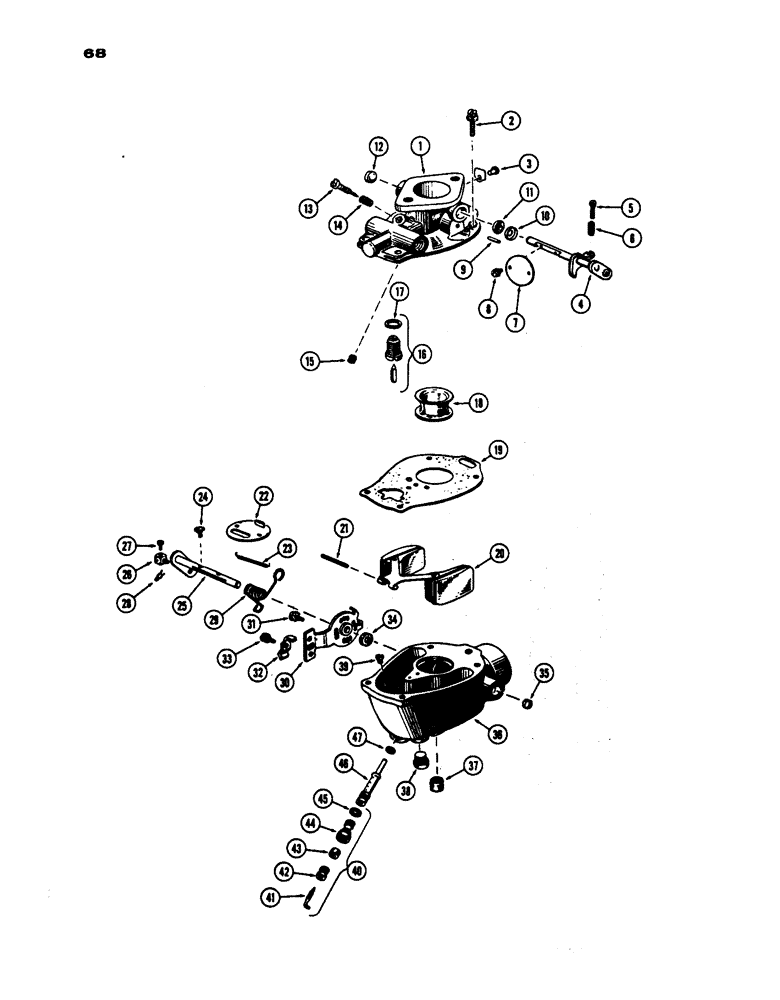

Запчасти Case IH 530 (068) - CARBURETOR PARTS, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

BODY - throttle (Order G45773)

1шт.

2

B51684

SCREW - throttle, Serial Range: body-bowl

4шт.

3

B51874

PLUG - idle plug hole

1шт.

4

A25182

SHAFT

- throttle

1шт.

5

B51680

SCREW - adjusting, throttle

1шт.

6

B51742

SPRING

- throttle adjusting screw

1шт.

7

A25183

FLY - throttle (22 deg.)

1шт.

8

B51702

SCREW,#6 - 32 x 1/4"

- throttle fly

2шт.

9

B51862

PIN - throttle stop

1шт.

10

B51855

RETAINER - packing, throttle shaft

1шт.

11

B51807

PACKING - throttle shaft

1шт.

12

B51850

RETAINER CUP

CUP - throttle shaft plug

1шт.

13

B51788

NEEDLE

- idle adjusting

1шт.

14

B51744

SPRING

- idle needle

1шт.

15

B51828

JET

- idle

1шт.

16

B51911

SEAT, VALVE

VALVE & SEAT - float (matched) (incl. ref. 17)

1шт.

17

B51703

GASKET

- valve seat

1шт.

18

B51815

VENTURI (Replaces A25184)

1шт.

19

B51706

GASKET

- throttle, Serial Range: body-bowl

1шт.

20

B51776

FLOAT

ASSY.

1шт.

21

B51778

SHAFT

- float

1шт.

22

B51762

VALVE

FLY - choke

1шт.

23

B51743

SPRING

- choke valve

1шт.

24

B51702

SCREW,#6 - 32 x 1/4"

- choke fly

2шт.

25

A25185

SHAFT

- choke

1шт.

26

B51764

PIVOT

SWIVEL - choke rod

1шт.

27

B51688

SCREW - swivel

1шт.

28

B51877

SPLIT PIN

COTTER - swivel

1шт.

29

B51738

SPRING - choke return

1шт.

30

B59382

BRACKET - choke

1шт.

31

B51686

SCREW -, Serial Range: bracket-bowl

1шт.

32

B51765

CLIP

- choke bracket

1шт.

33

B51695

SCREW -, Serial Range: clip-bracket

1шт.

34

B51802

PACKING

- choke shaft

1шт.

35

B51873

PLUG - choke shaft

1шт.

36

A25186

BOWL - fuel (incl. ref. 37)

1шт.

37

B51883

STRAINER - bowl

1шт.

38

B51887

PLUG

- drain

1шт.

39

B59391

JET - power

1шт.

40

B51799

NEEDLE ASSY - main adjusting (Replaces B51779) (incl. ref. 41 - 45)

1шт.

41

B51791

NEEDLE

1шт.

42

B51856

RETAINER - packing

1шт.

43

B51804

PACKING

1шт.

44

B51784

SEAT - adjusting needle

1шт.

45

B51707

GASKET

- seat

1шт.

46

B59388

NOZZLE - main

1шт.

47

B51722

GASKET

- nozzle

1шт.

B51729

GASKET KIT - (includes ref. 17, 19, 45 and 47)

1шт.

B51936

KIT

REPAIR KIT - (includes ref. 4, 8, 10, 11, 12, 13, 14, 15, 16, 21, 24, 29, 34, 39 and gasket kit)

1шт.
