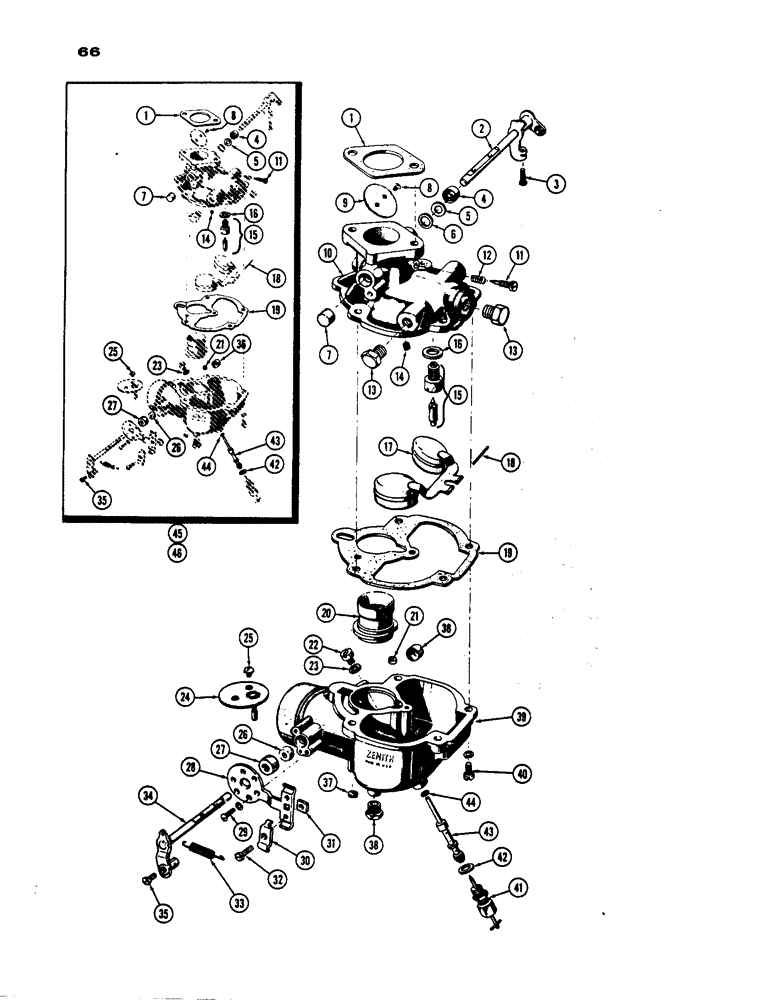

Запчасти Case IH 530 (066) - CARBURETOR PARTS, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

2

B51245

SHAFT

LEVER & SHAFT - throttle (incl. ref. 3)

1шт.

3

B51581

SCREW - throttle stop

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

B51416

RETAINER

- seal, throttle shaft

1шт.

6

B51530

SPACER

- throttle lever

2шт.

7

B51438

PLUG

- throttle shaft hole

1шт.

8

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

9

B59366

LARGE PLATE

PLATE - throttle

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - throttle (Use A35816)

1шт.

11

B51265

HOSE

NEEDLE - idle adjusting

1шт.

12

B51404

SPRING

- idle needle

1шт.

13

B51541

PLUG

- pipe, fuel inlet

1шт.

14

A25174

JET

- idle

1шт.

15

B51344

SEAT

VALVE & SEAT - fuel (incl. ref. 16)

1шт.

16

B51618

WASHER

- fuel valve seat

1шт.

17

B51359

FLOAT

1шт.

18

B51433

AXLE

- float

1шт.

19

B51471

GASKET

-, Serial Range: bowl-body

1шт.

20

A25187

VENTURI

1шт.

21

B51340

JET

- well vent

1шт.

22

A25173

JET

- main

1шт.

23

B51619

WASHER

- main jet

1шт.

24

B51365

PLATE

- choke

1шт.

25

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

26

B51533

WASHER

- packing, choke shaft

1шт.

27

B51439

RETAINER

- packing washer, choke shaft

1шт.

28

B51400

SUPPORT

BRACKET ASSY. - choke (incl. ref. 30, 31, 32 & 33)

1шт.

29

B51458

SCREW,#8 - 32 x 0.37"

- choke bracket

2шт.

30

B51403

CLIP

- choke, Serial Range: rod-brkt

1шт.

31

B51594

X

NUT - choke rod clip screw

1шт.

32

B51580

SCREW

- choke rod clip

1шт.

33

B51412

SPRING

- return, choke lever

1шт.

34

B59632

SHAFT

& LEVER - choke (inc. ref. 35)

1шт.

35

B51579

SCREW - swivel, choke lever

1шт.

36

B51509

PLUG

- choke shaft hole

1шт.

37

B51442

FILTER

DISC - intake drain

1шт.

38

B51541

PLUG

- pipe, bowl drain

1шт.

39

B51180

BOWL

- fuel (incl. ref. 26, 27 & 38)

1шт.

40

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

41

B51330

ADJUSTER

ADJUSTMENT - main jet

1шт.

42

B51618

WASHER

- main jet adjustment

1шт.

43

B51323

JET

- discharge

1шт.

44

B51610

WASHER

- discharge jet

1шт.

45

B51496

GASKET

KIT - (includes ref. 16, 19, 23, 42 & 44)

1шт.

46

B51568

KIT

REPAIR KIT - (includes ref. 1, 4, 5, 7, 8, 11, 14, 15, 18, 21, 25, 26, 27, 35, 36, 43 & 45)

1шт.

A35816

X

CARBURETOR - complete (Zenith 267 x 8 #0-12509)

1шт.
