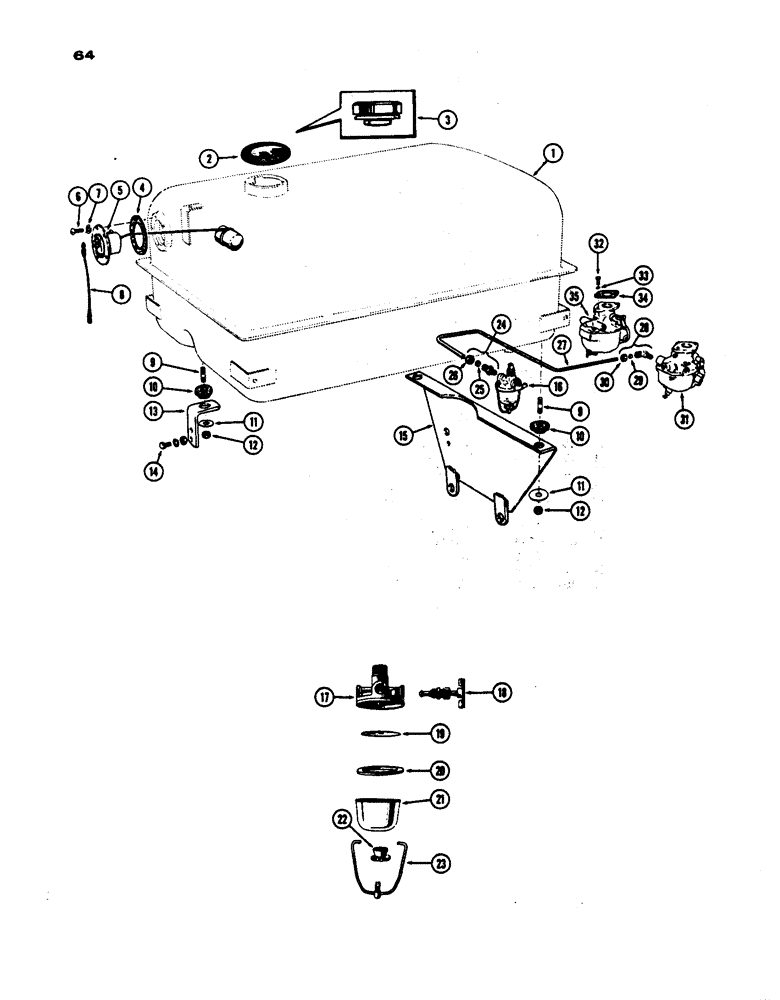

Запчасти Case IH 530 (064) - FUEL SYSTEM, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36560

TANK

- fuel (Before SN 8248494 order A32119 cap also)

1шт.

2

A32119

CAP

- filler (2-7/8" O.D.)See A22451

1шт.

2

A33558

CAP

- filler (3-1/2" O.D.) Before SN8248494

1шт.

3

A32120

CAP

- filler, locking type (Includes keys Keys not furnished for repairs)

1шт.

4

A11822

GASKET

- sender

1шт.

5

A21438

X

SENDER - fuel gauge (Auto-Lite) Order A23480 when stock is exhausted

1шт.

5

A23480

SENDER UNIT

SENDER - fuel gauge (Stewart-Warner)

1шт.

6

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

8

A11783

ELECTRICAL WIRE

CABLE -, Serial Range: sender-gauge

1шт.

9

G10710

STUD

- tank mounting

3шт.

10

A7336

CUSHION

- rubber, tank support

3шт.

11

O30577HT

X

WASHER - plain, mounting

3шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.F. hex

3шт.

13

G15765

SUPPORT - rear (S.N. 8218393 and after)

1шт.

13

G15592

SUPPORT - rear (Before SN8218393)

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

A35629

SUPPORT - front (S.N. 8218393 and after)

1шт.

15

G30269

SUPPORT - front (Before SN8218393)

1шт.

16

O3990AB1

X

STRAINER ASSY. - fuel (incl. ref. 17 - 23)

1шт.

17

A11214

HEAD

1шт.

18

A11205

VALVE

- shut-off

1шт.

19

A11211

FILTER SCREEN

SCREEN ASSY

1шт.

20

A11208

GASKET

-, Serial Range: bowl-head

1шт.

21

A11209

BOWL

1шт.

22

A11210

ADJUSTER

CUP & NUT

1шт.

23

A11212

BAIL

ASSY.

1шт.

24

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" tube x 1/8" P.T. (incl. ref. 25 & 26)

1шт.

25

222-103

SLEEVE,5/16" Tube

1шт.

26

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

27

G46268

FUEL TUBE,0.312" OD x 20.5" L

LINE - fuel, strainer to carburetor

1шт.

28

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- 5/16" tube x 1/8" P.T. (incl. ref. 29 & 30)

1шт.

29

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

30

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

31

A35816

X

CARBURETOR (Zenith) Repairs Figure 66

1шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

35

G45773

CARBURETOR (Marvel-Schebler) (Repairs Page 69)

1шт.
