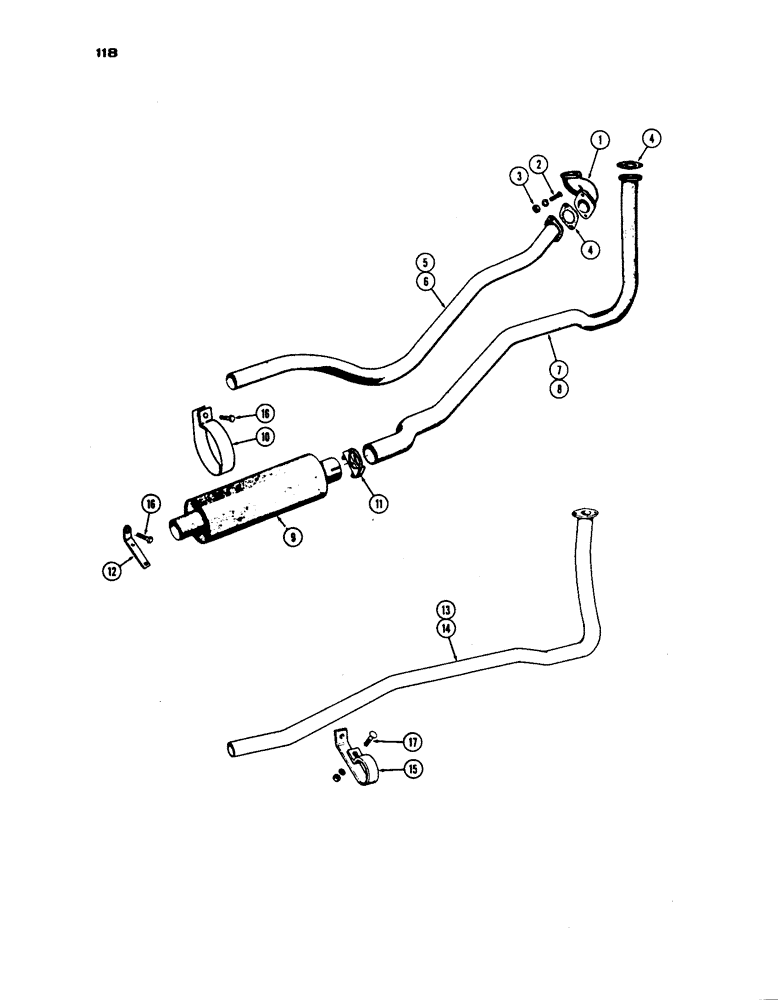

Запчасти Case IH 530 (118) - UNDERNEATH MUFFLER, PRIOR TO S/N 8262800, 430 AND 530 MODELS, 188 DIESEL ENGINE (02) - ENGINE

1

G2124

ELBOW - pipe to manifold (dry clutch tractor before SN8191147)

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

3

VT3362

X

NUT - brass, 3/8" N.C. hex hd.

2-4шт.

4

G46853

MANIFOLD GASKET

- pipe & elbow

1-2шт.

5

G45346

PIPE - exhaust (dry clutch Utility tractor before SN8191147)

1шт.

6

G45347

PIPE CLAMP

PIPE - exhaust (dry clutch Gen. Purpose tractor before SN8191147)

1шт.

7

G45286

PIPE - exhaust (Gen. Purpose tractor w/Case-O-Matic before SN8191147)

1шт.

8

G45348

PIPE - exhaust (Utility tractor w/Case-O-Matic before SN8191147)

1шт.

9

G45287

MUFFLER

- underneath

1шт.

10

G15786

CLAMP - rear (Utility)

1шт.

11

O6437AB

X

CLAMP - muffler (Gen. Purpose front and rear before SN8191147)

2шт.

11

O6437AB

X

CLAMP - muffler (front only all Utility and Gen. Purpose SN8191147 and after

1шт.

12

G15787

BRACKET - rear clamp (Gen. Purpose before SN8191147)

1шт.

13

A34176

GEAR

PIPE - exhaust (Utility tractor SN8191147 and after)

1шт.

14

A35177

PIPE - exhaust (Gen. Purpose tractor SN8191147 and after)

1шт.

15

A35178

BRACKET

CLAMP - rear (Gen. purpose tractor SN8191147 and after)

1шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

17

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.
