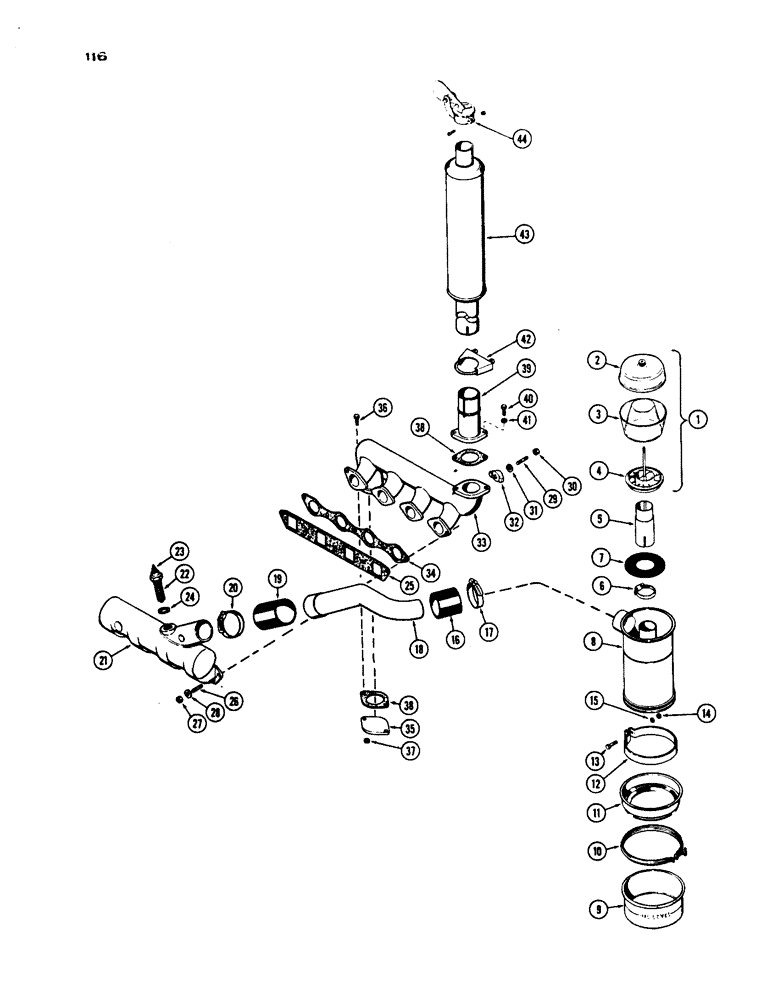

Запчасти Case IH 530 (116) - AIR CLEANER, MANIFOLD AND MUFFLER, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (02) - ENGINE

1

A24439

CLEANER

PRE-CLEANER ASSY. (incl. ref. 2, 3 & 4)

1шт.

2

73187

COVER

1шт.

3

73186

HOUSING

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

LOWER HALF

1шт.

5

A24437

EXTENSION

- pipe, pre-cleaner

1шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- extension to air cleaner #36, 1.81/2.75 Type F Worm

1шт.

7

A24438

SHIELD

- extension

1шт.

8

G45260

AIR CLEANER ASSY. (incl. ref. 9, 10 & 11)

1шт.

9

G46327

X

CUP - oil, outer

1шт.

10

G45333

CLAMP

- oil cup

1шт.

(7" Clamp)

1шт.

11

G46326

X

CUP - oil, inner

1шт.

12

G15648

BAND

- air cleaner mounting

1шт.

13

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rd. hd. sq. nk

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Tube to air cleaner 2.25" ID x 3.00", SAE 20R2

1шт.

17

214-35

CLAMP

- hose

2шт.

18

G46270

TUBE - air cleaner to manifold 2.25" OD

1шт.

19

G46356

X

HOSE -, Serial Range: tube-manifold

1шт.

20

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- hose to manifold #36, 1.81/2.75 Type F Worm

1шт.

21

A35781

MANIFOLD - intake (takes 1 heater plug)

1шт.

21

G2112

MANIFOLD - intake (takes 4 heater plugs)

1шт.

22

A24396

X

HEATER - intake manifold (incl. ref. 23)

1шт.

23

129-503

NUT,1/4"-20, Brass

1шт.

24

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

25

G46871

GASKET

- intake manifold

1шт.

26

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

4шт.

27

131-903

NUT,3/8"-16

NUT - 3/8" N.C. (Seez Pruf)

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

A35175

STUD

- manifold clamp (3/8" x 2-7/16")

6шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

6шт.

31

95-6

WASHER,3/8"

- plain 3/8"

6шт.

32

A35028

CLAMP

-, Serial Range: manifold-head

6шт.

33

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

34

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

35

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

2шт.

37

VT3362

X

NUT - brass, 3/8" N.C. hex

2шт.

38

G46853

MANIFOLD GASKET

-, Serial Range: outlet-manifold

1шт.

39

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

A13240

CLAMP,2-5/8" ID

- upright muffler

1шт.

43

G45239

MUFFLER

- upright

1шт.

44

G45048

CAP

- weather

1шт.
