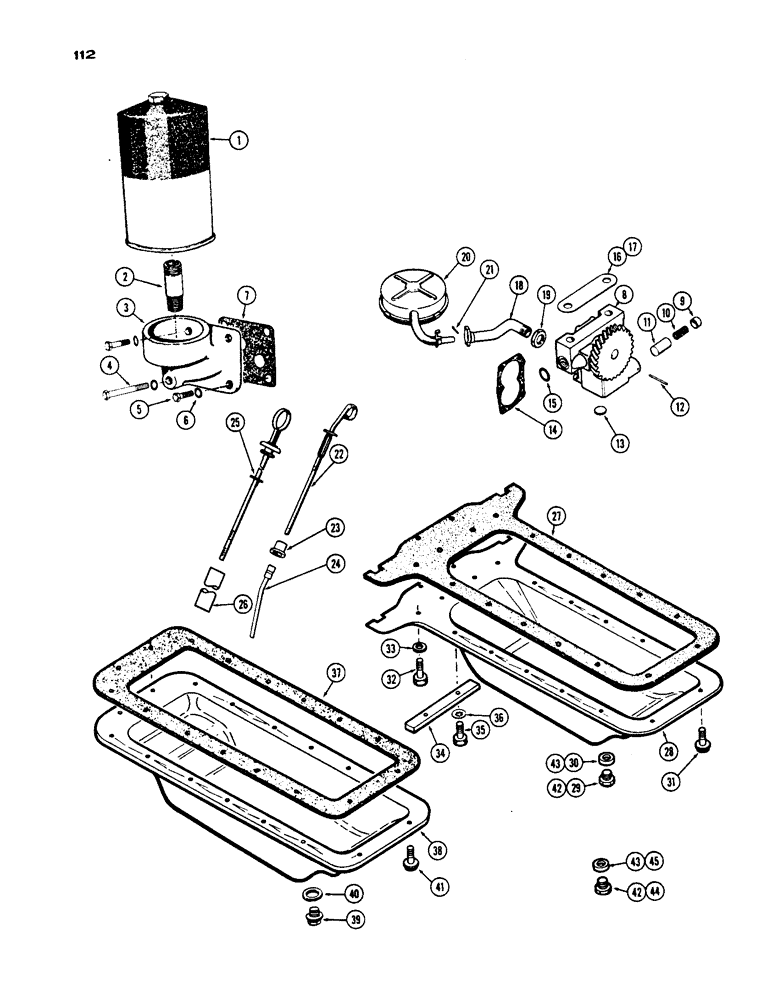

Запчасти Case IH 530 (112) - OIL FILTER, OIL PUMP AND OIL PAN, PRIOR TO S/N 8262800, 430 AND 530 MODELS, 188 DIESEL ENGINE (02) - ENGINE

1

G45210

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil

1шт.

2

G49074

SPARE PART ADAPTER -, Serial Range: filter-bracket

1шт.

3

G2122

SPARE PART BRACKET - filter mounting

1шт.

4

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

BOLT, Hex, 5/16"-18 x 2", G5

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

GASKET -, Serial Range: bracket-block

1шт.

8

G37070

X

OIL PUMP ASSY - complete (incl. ref. 9 - 14)

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

VT3221

X

RETAINER - relief spring

1шт.

10

G48500

SPRING

SPRING - relief

1шт.

11

VT3298

X

VALVE - relief

1шт.

12

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - 1/8" x 1/4"

1шт.

13

VT3356

SPARE PART PLUG - pump body

2шт.

14

G46852

GASKET

GASKET - pump cover

1шт.

15

O8416AB

X

"O" RING - oil port

1шт.

16

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

17

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

VTA330

SPARE PART FLOAT ASSY. - (includes screen)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

G37037

DIPSTICK

DIPSTICK - oil level (Before eng. #2117952) (incl. ref. 23)

1шт.

23

G46892

OIL SEAL

SEAL - rubber

1шт.

24

G45139

BRACKET

SUPPORT - dipstick (Before eng. #2117952)

1шт.

25

A37148

DIPSTICK

DIPSTICK - oil level (Eng. #2117952 and after)

1шт.

26

A37149

TUBE

TUBE - dipstick and oil filter (Eng. #2117952 and after)

1шт.

27

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40713 from Page 79)

1шт.

28

A36720

X

OIL PAN ASSY. - (w/Case-O-Matic) (incl. ref. 29 & 30)

1шт.

29

A14280

PLUG

PLUG - drain (w/3/4" N.F. thrd.)

1шт.

30

O9844AB

X

GASKET - drain plug (3/4" I.D.)

1шт.

31

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

14шт.

32

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - rear, 5/16" x 1-1/4" N.C. hex hd.

2шт.

33

195-400

WASHER

WASHER - sealing

2шт.

34

G11372

STRIP

STRIP - reinforcing

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

36

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712 from Page 79)

1шт.

38

A35281

X

OIL PAN ASSY. - (w/std. clutch) (incl. ref. 39 & 40)

1шт.

39

G45786

PLUG

PLUG - drain, oil pan (w/3/8" P.T.) (incl. ref. 40)

1шт.

40

G46903

GASKET

GASKET - (fiber)

1шт.

41

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

18шт.

42

VT4521

X

PLUG - drain, oil pan (w/7/8" N.F. thrd.)

1шт.

43

VT4520

X

GASKET - drain plug (7/8" I.D.)

1шт.

44

A14280

PLUG

PLUG - drain (3/4" N.F. thrd.)

1шт.

45

O9844AB

X

GASKET - drain plug (3/4" I.D.)

1шт.
