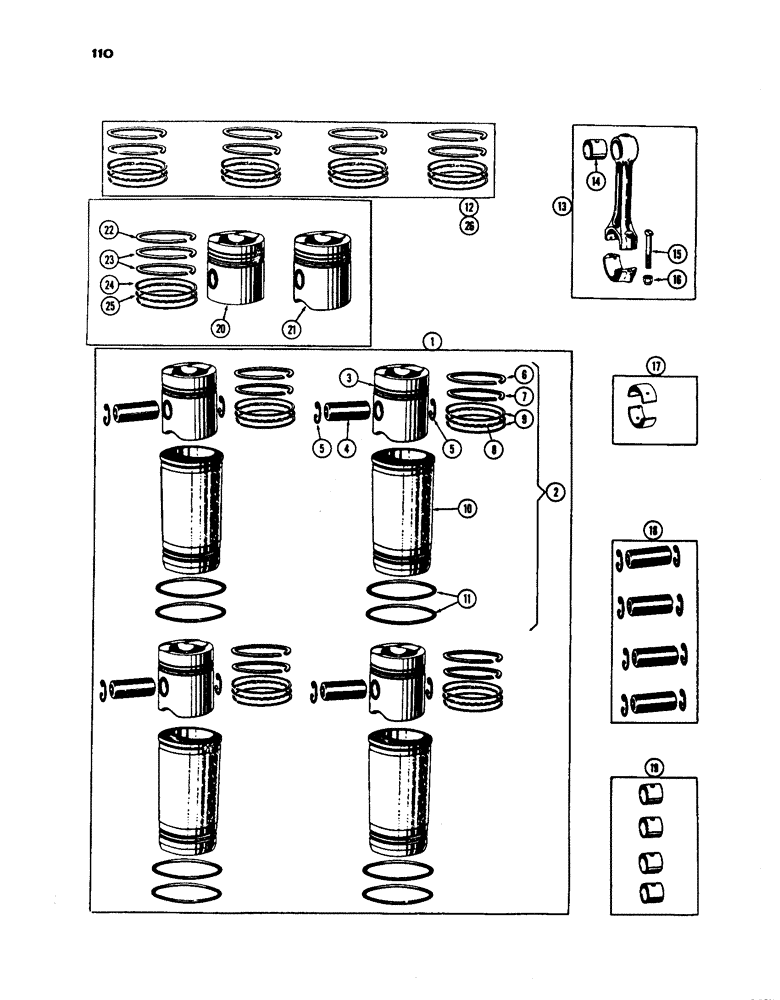

Запчасти Case IH 530 (110) - PISTONS, SLEEVES AND CONNECTING RODS, PRIOR TO S/N 8262800, 430 AND 530 MODELS, 188 DIESEL ENGINE (02) - ENGINE

1

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE - matched set of 4 (incl. ref. 2 - 11)

1шт.

2

A36391

SLEEVE ASSY

PISTON & SLEEVE - matched (incl. ref. 3 - 11)

4шт.

3

G2137

X

PISTON - (3 groove)

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - wrist (Se ref. 18)

1шт.

5

G46702

RING, LOCKING

RING - retaining (See ref. 18)

2шт.

6

G4819

RING

- top (See ref. 12)

1шт.

7

G4817

RING

- compression (See ref. 12)

1шт.

8

G47174

SPRING

SPACER - oil rail (See ref. 12)

1шт.

9

G47155

RAIL

- oil (See ref. 12)

2шт.

10

G2110

SLEEVE

- cylinder

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - (3 groove pistons)

1шт.

13

G11847

ROD

CONNECTING ROD ASSY. (incl. ref. 14, 15 & 16)

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - (See ref. 19)

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

A36500

SEAL

LINERS - bearing, conn, rod (Std.)

4шт.

17

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

4шт.

17

A36502

LINING

LINERS - bearing, conn. rod (.010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

4шт.

17

A36504

KIT

LINERS - bearing, conn. rod (.030" undersize)

4шт.

18

A35771

KIT

PIN SET - piston (incl. 8-G46702 rings)

1шт.

19

G11953

BUSHING

- conn. rod (Set of 4)

1шт.

20

G2065

PISTON - (4 groove) Must be used to replace individual piston on eng. before #515S10655. After #515S10655 Order A36391

1шт.

21

G2135

PISTON - (4 groove) Order A36391

1шт.

22

G4813

RING - top, 4 groove piston (See ref. 26)

4шт.

23

G4812

RING - compression, 4 groove piston (See ref. 26)

8шт.

24

G47134

RING - oil, 4 groove piston (See ref. 26)

8шт.

25

G47133

SPACER - oil ring, 4 groove piston (See ref. 26)

4шт.

26

G11938

SET OF RINGS

RING SET - (4 groove pistons)

1шт.
