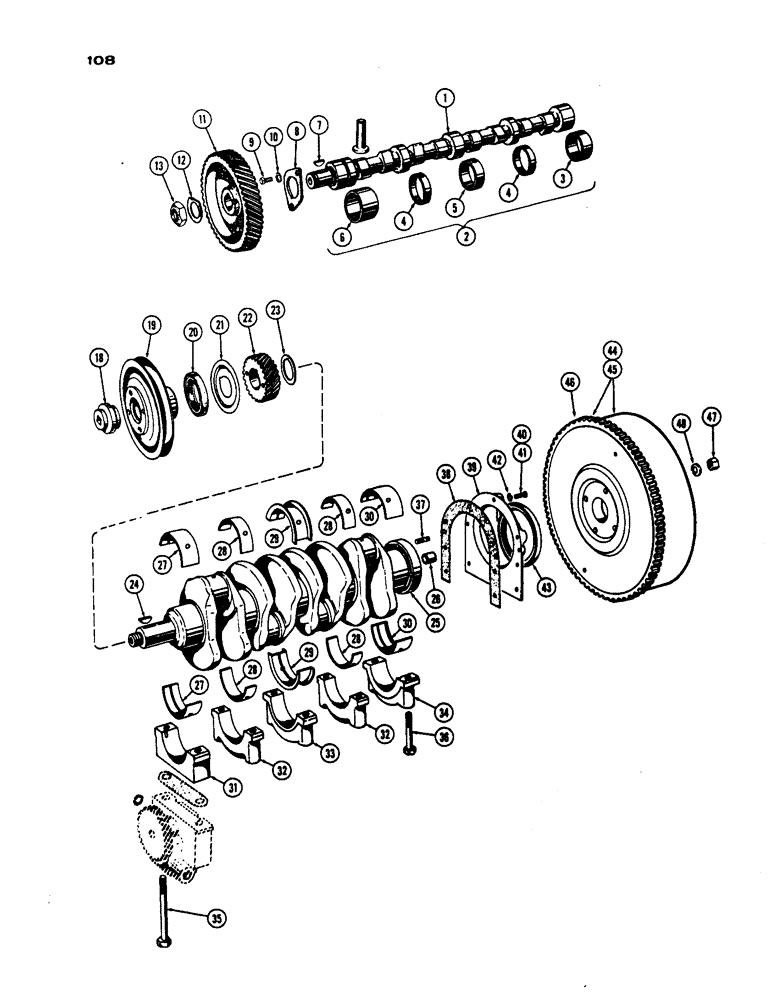

Запчасти Case IH 530 (108) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, PRIOR TO S/N 8262800, 430 AND 530 MODELS, 188 DIESEL ENGINE (02) - ENGINE

1

A36853

X

CAMSHAFT

1шт.

2

A36317

RING, SNAP

BUSHING SET - camshaft (Eng #2074289 and after), Includes: Ref. 3 - 6

1шт.

2

G11936

BUSHING SET - camshaft (Before eng. #2074289), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

7

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

8

VT3365

X

PLATE - thrust

1шт.

9

VT4500

X

SCREW - thrust plate

2шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

11

G2066

X

GEAR - camshaft

1шт.

12

VT4517

X

LOCKWASHER - gear nut

1шт.

13

VT4536

X

NUT -, Serial Range: gear-camshaft

1шт.

18

G11263

NUT

- pulley to crankshaft, flywheel

1шт.

19

G11342

X

PULLEY - fan & generator drive, crankshaft & flywheel

1шт.

20

A36609

OIL SEAL

OIL SEAL - front, crankshaft & flywheel

1шт.

21

VT3220

X

SLINGER - oil, crankshaft & flywheel

1шт.

22

VT3225

X

GEAR - crankshaft (24T), flywheel

1шт.

23

VT3377

X

SPACER - thrust, crankshaft & flywheel

1шт.

24

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft, flywheel

2шт.

25

G11889

CRANKSHAFT

ASSY, Includes: Ref. 26, flywheel

1шт.

26

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft & flywheel

1шт.

27

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.), crankshaft & flywheel

1шт.

27

G37005

KIT

LINERS - front bearing (.002" undersize), crankshaft & flywheel

1шт.

27

G37006

X

LINERS - front bearing (.010" undersize), crankshaft & flywheel

1шт.

27

G37007

KIT

LINERS - front bearing (.020" undersize), crankshaft & flywheel

1шт.

27

G37008

X

LINERS - front bearing (.030" undersize), crankshaft & flywheel

1шт.

28

A36485

LINING

LINERS - intermediate bearing (Std.), crankshaft & flywheel

2шт.

28

G37013

KIT

LINERS - intermediate brg. (.002" undersize), crankshaft & flywheel

2шт.

28

G37014

X

LINERS - intermediate bearing (.010" undersize), crankshaft & flywheel

2шт.

28

G37015

KIT

LINERS - intermediate brg. (.020" undersize), crankshaft & flywheel

2шт.

28

G37016

KIT

LINERS - intermediate brg. (.030" undersize), crankshaft & flywheel

2шт.

29

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing, (Std.), crankshaft & flywheel

1шт.

29

G37009

KIT

LINERS - center brg. (.002" undersize), crankshaft & flywheel

1шт.

29

G37010

X

LINERS - center brg. (010" undersize), crankshaft & flywheel

1шт.

29

G37011

KIT

LINERS - center brg. (.020" undersize), crankshaft & flywheel

1шт.

29

G37012

KIT

LINERS - center brg. (.030" undersize), crankshaft & flywheel

1шт.

30

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.), crankshaft & flywheel

1шт.

30

G37017

KIT

LINERS - rear bearing (.002" undersize), crankshaft & flywheel

1шт.

30

G37018

X

LINERS - rear brg. (.010" undersize), crankshaft & flywheel

1шт.

30

G37019

X

LINERS - rear bearing (.020" undersize), crankshaft & flywheel

1шт.

30

G37020

KIT

LINERS - rear brg. (.030" undersize), crankshaft & flywheel

1шт.

31

G2126

CAP

- front bearing, crankshaft & flywheel

1шт.

32

G2128

CAP

- intermediate bearing, crankshaft & flywheel

2шт.

33

G2127

CAP

- center bearing, crankshaft & flywheel

1шт.

34

G2129

CAP

- rear bearing, crankshaft & flywheel

1шт.

35

G49077

BOLT

- front brg. cap (1/2" x 5-1/8"), crankshaft & flywheel

2шт.

36

G49078

BOLT - bearing cap (1/2" x 4-1/2"), crankshaft & flywheel

8шт.

37

VT4513

X

STUD - flywheel to crankshaft (7/l6 x 1-3/4")

4шт.

38

G46802

GASKET

- rear oil seal retainer, crankshaft & flywheel

1шт.

39

G2017

RETAINER

- rear oil seal, crankshaft & flywheel

1шт.

40

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft & flywheel 1/4"

7шт.

43

A36610

OIL SEAL

OIL SEAL - rear, crankshaft & flywheel

1шт.

44

G11859

FLYWHEEL

ASSY. - (w/std. clutch), Includes: Ref. 46, flywheel

1шт.

45

G11860

FLYWHEEL

ASSY. - (w/Case-O-Matic), Includes: Ref. 46, flywheel

1шт.

46

G11710

GEAR

- ring, crankshaft & flywheel

1шт.

47

25-117

NUT,7/16"-20, G5

- 7/l6" N.F. hex, crankshaft & flywheel

4шт.

48

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.
