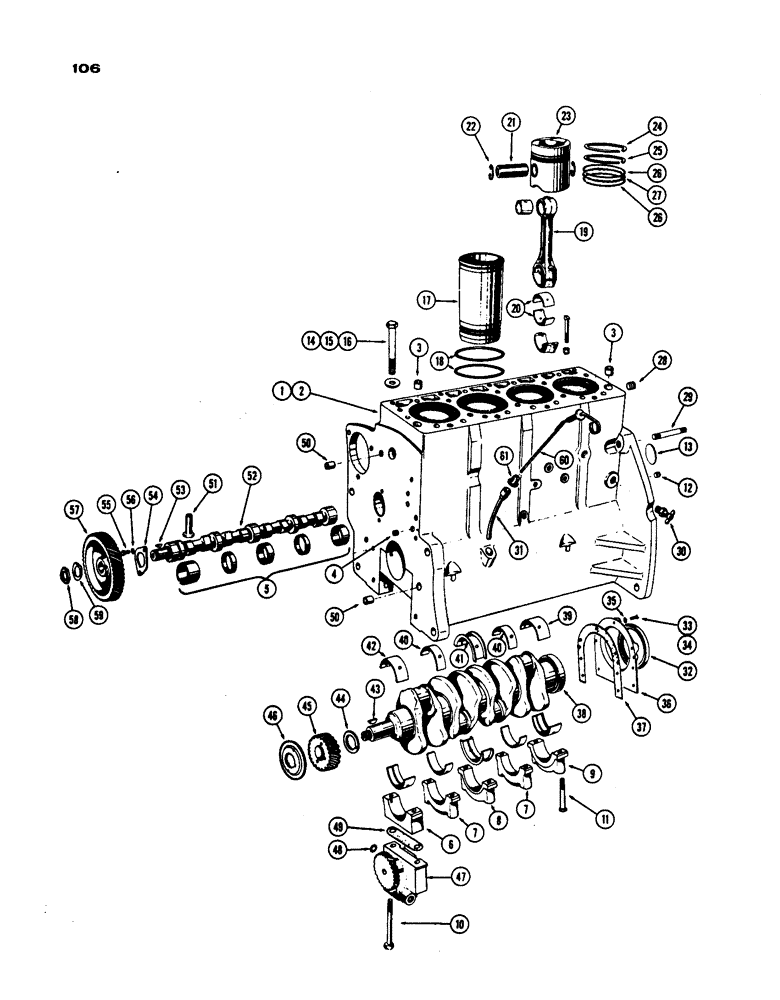

Запчасти Case IH 530 (106) - SHORT BLOCK ASSEMBLY, A36315, PRIOR TO S/N 8262800, 430 AND 530 MODELS, 188 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36315
SPARE PART SHORT BLOCK ASSY, Includes: Ref. 2 - 59 & 61
1шт.
2
A36309
SPARE PART BLOCK ASSY. - stripped, Includes: Ref. 3 - 16
1шт.
3
G49608
RING
RING - dowel, Serial Range: head-block
2шт.
4
G49070
PLUG
PLUG - oil gallery, front
1шт.
5
A36317
RING, SNAP
RING SNAP BUSHING SET - camshaft (Order from Figure 108)
1шт.
6
G2126
CAP
CAP - front brg., crankshaft
1шт.
7
G2128
CAP
CAP - intermediate brg., crankshaft
2шт.
8
G2127
CAP
CAP - center brg., crankshaft
1шт.
9
G2129
CAP
CAP - rear brg., crankshaft
1шт.
10
G49077
BOLT
BOLT - front brg. cap (1/2" x 5-1/8")
2шт.
11
G49078
SPARE PART BOLT - brg. cap (1/2 x 4-1/2")
8шт.
12
221-32
PLUG,Sq Soc, 3/8"-18 NPTF
PLUG - oil gallery, rear (3/8" P.T.)
1шт.
13
VT3398
X
PLUG - rear (2-1/8" dia.)
1шт.
14
A35370
BOLT
BOLT - head (1/2 x 4")
4шт.
15
A35371
BOLT
BOLT - head (1/2 x 5-5/8")
1шт.
16
A35372
BOLT (SPREADER)
BOLT - head (1/2" x 6")
2шт.
17
G2110
SLEEVE
SLEEVE - cylinder (See Figure 110)
4шт.
18
G46888
O-RING,3.737" ID x 3.943" OD
"O" RING - sleeve packing
8шт.
19
G11847
ROD
CONNECTING ROD ASSY - (See Figure 110)
4шт.
20
A36500
SEAL
LINERS - brg., conn. rod, std. (See Figure 110)
4шт.
21
NSS
NOT SOLD SEPARAT
PIN - wrist (See Figure 110)
4шт.
22
G46702
RING, LOCKING
RING, LOCK RING - retaining (See Figure 110)
8шт.
23
G2137
X
PISTON - (See Figure 110)
4шт.
24
G4819
RING
RING - piston, top (See Figure 110)
4шт.
25
G4817
RING
RING - compressiong (See Figure 110)
4шт.
26
G47155
RAIL
RAIL - oil, piston (See Figure 110)
8шт.
27
G47174
SPRING
SPACER - oil rail
4шт.
28
VT3395
X
PLUG - oil gallery (1/4" socket hd.)
2шт.
29
VT3531
X
STUD - engine mounting (5/8" x 3")
2шт.
30
217-103
COCK, DRAIN
DRAIN COCK
1шт.
31
G45139
BRACKET
SUPPORT - dipstick
1шт.
32
A36610
OIL SEAL
OIL SEAL - rear, crankshaft
1шт.
33
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd
4шт.
34
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
BOLT, Hex, 1/4"-20 x 1", G5
3шт.
35
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
36
G2017
RETAINER
RETAINER - rear oil seal
1шт.
37
G46802
GASKET
GASKET - retainer, rear oil seal
1шт.
38
G11889
CRANKSHAFT
CRANKSHAFT - (See Figure 108)
1шт.
39
A36495
BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W
LINERS - rear bearing, std. (See Figure 108)
1шт.
40
A36485
LINING
LINERS - intermediate brg., std.(See Figure 108)
2шт.
41
A36490
BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W
LINERS - center brg., std. (See Figure 108)
1шт.
42
A36480
BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W
LINERS - frt. bearing, std. (See Figure 108)
1шт.
44
VT3377
X
SPACER - thrust
1шт.
45
VT3225
X
GEAR - crankshaft
1шт.
46
VT3220
X
SLINGER - oil
1шт.
47
G37070
X
OIL PUMP ASSY. - (See Figure 112)
1шт.
47
AR38372
REMAN-ENG OIL PUMP
REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only
1шт.
47
AC38372
CORE-ENGINE OIL PUMP
CORE-ENGINE OIL PUMP Return number - For N.A. only
1шт.
48
O8416AB
X
"O" RING - oil port
1шт.
49
G11337
SHIM,.002" Thk
SHIM, , Pump to block .002" Thk
2шт.
49
G11338
SHIM,.005" Thk
SHIM, , Pump to block .005" Thk
1шт.
50
VT4535
X
RING - dowel, gear cover
2шт.
51
G47077
TAPPET
TAPPET - valve
8шт.
52
A36853
X
CAMSHAFT
1шт.
53
126-12
WOODRUFF KEY,#6, 5/32" x 5/8"
WOODRUFF KEY, , Camshaft gear #6, 5/32" x 5/8"
1шт.
54
VT3365
X
PLATE - thrust, camshaft
1шт.
55
VT4500
X
SCREW - thrust plate
2шт.
56
193-9
LOCK WASHER,Ext Tooth, 5/16"
WASHER, LOCK, Ext Tooth, 5/16"
2шт.
57
G2066
X
GEAR - camshaft
1шт.
58
VT4536
X
NUT - camshaft
1шт.
59
VT4517
X
LOCKWASHER - camshaft nut
1шт.
60
G37037
DIPSTICK
DIPSTICK - oil level (incl. ref. 61)
1шт.
61
G46892
OIL SEAL
SEAL - rubber
1шт.
