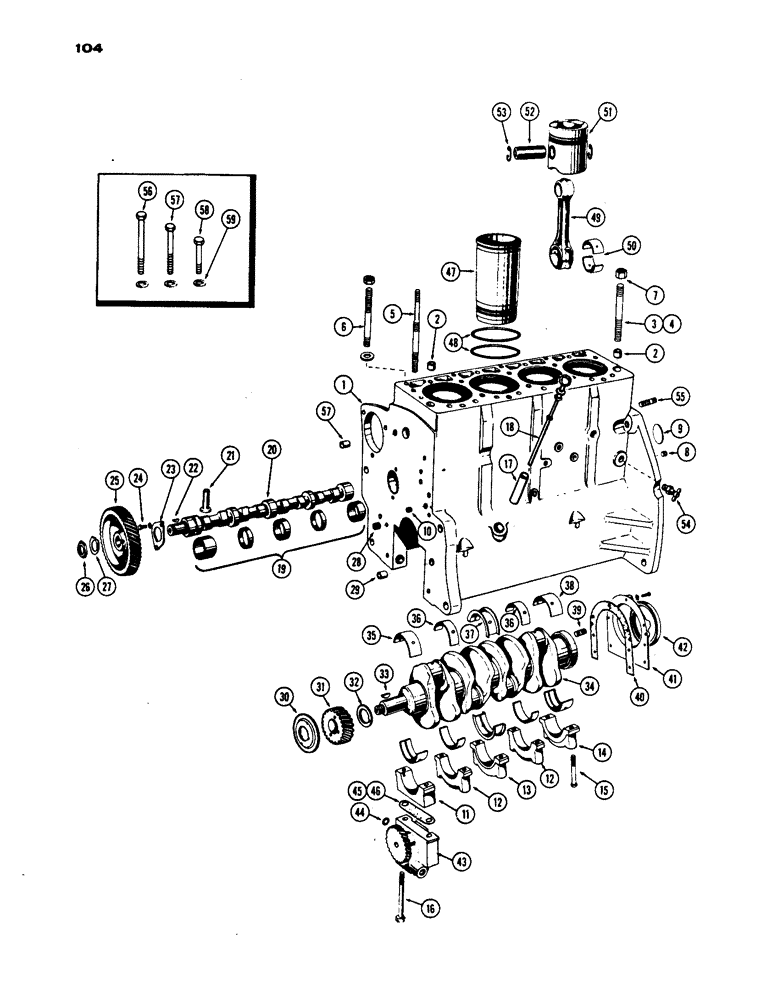

Запчасти Case IH 530 (104) - SHORT BLOCK ASSEMBLY, A40592, PRIOR TO S/N 8262800, 430 AND530 MODELS, 188 DIESEL ENGINE (02) - ENGINE

A40592

SPARE PART SHORT BLOCK ASSY, Includes: Ref. 1 - 55

1шт.

1

A40590

SPARE PART BLOCK ASSY. - stripped, Includes: Ref. 2 - 19

1шт.

2

G49608

RING

RING - dowel, Serial Range: head-block

2шт.

3

A36902

STUD

STUD - head (1/2" x 5-5/8")

11шт.

4

A36905

STUD

STUD - head (1/2" x 6")

2шт.

5

A36903

STUD

STUD - head and cover

2шт.

6

A36904

STUD

STUD - head (1/2 x 4")

4шт.

7

A37030

FLANGE NUT

NUT - head stud

19шт.

8

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd.

1шт.

9

VT3398

X

PLUG - expansion, 2-1/8" dia.

1шт.

10

G49070

PLUG

PLUG - drilled, front

1шт.

11

G2126

CAP

CAB - front brg., crankshaft

1шт.

12

G2128

CAP

CAP - intermediate brg., crankshaft

2шт.

13

G2127

CAP

CAP - center bearing, crankshaft

1шт.

14

G2129

CAP

CAP - rear bearing, crankshaft

1шт.

15

G49078

SPARE PART BOLT - bearing cap (1/2 x 4-1/2")

8шт.

16

G49077

BOLT

BOLT - bearing cap (1/2 x 5-1/8")

2шт.

17

A37149

TUBE

TUBE - support, dipstick

1шт.

18

A37148

DIPSTICK

DIPSTICK - oil level

1шт.

19

A36317

RING, SNAP

RING SNAP BUSHING SET - camshaft (Order from Figure 108)

1шт.

20

A36853

X

CAMSHAFT

1шт.

21

G47077

TAPPET

TAPPET - valve

8шт.

22

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, , Gear to camshaft #6, 5/32" x 5/8"

1шт.

23

VT3365

X

PLATE - thrust, camshaft

1шт.

24

VT4500

X

SCREW - thrust plate

2шт.

25

G2066

X

GEAR - camshaft

1шт.

26

VT4536

X

NUT - camshaft gear

1шт.

27

VT4517

X

LOCKWASHER - camshaft nut

1шт.

28

VT3395

X

PLUG - front and rear

2шт.

29

VT4535

X

RING - dowel

2шт.

30

VT3220

X

SLINGER - oil, crankshaft gear

1шт.

31

VT3225

X

GEAR - crankshaft

1шт.

32

VT3377

X

SPACER - thrust, crankshaft

1шт.

33

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

34

G11889

CRANKSHAFT

CRANKSHAFT - (See Figure 108)

1шт.

35

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - bearing, front (See Figure 108)

1шт.

36

A36485

LINING

LINERS - bearing, intermediate (See Figure 108)

2шт.

37

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - bearing, center (See Figure 108)

1шт.

38

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - bearing, rear (See Figure 108)

1шт.

39

VT4513

X

STUD -, Serial Range: flywheel-crankshaft

1шт.

40

G46802

GASKET

GASKET - oil seal retainer

1шт.

41

G2017

RETAINER

RETAINER - rear oil seal

1шт.

42

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

43

G37070

X

OIL PUMP - (See Figure 112)

1шт.

43

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

43

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

44

O8416AB

X

"O" RING - oil port

1шт.

45

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

46

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

47

G2110

SLEEVE

SLEEVE - cylinder (Figure 110)

4шт.

48

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

49

G11847

ROD

CONNECTING ROD ASSY. - (See Figure 110)

4шт.

50

A36500

SEAL

LINERS - bearing (See Figure 108)

4шт.

51

G2137

X

PISTON - (See Figure 110)

4шт.

52

NSS

NOT SOLD SEPARAT

PIN - piston (See Figure 110)

4шт.

53

G46702

RING, LOCKING

RING, LOCK RING - retaining (See Figure 110)

8шт.

54

217-103

COCK, DRAIN

DRAIN COCK

1шт.

55

VT3531

X

STUD - engine mounting (5/8" x 3")

2шт.

Used on earlier engines instead of studs ref. 3, 4, & 6

1шт.

56

A35372

BOLT (SPREADER)

BOLT - head to block (1/2 x 5-1/2")

2шт.

57

A35371

BOLT

BOLT - head to block (1/2" x 5")

11шт.

58

A35370

BOLT

BOLT - head to block (1/2 x 4")

4шт.

59

VT3359

SPARE PART WASHER - head bolt

18шт.

A40637

HEATER ASSY.

HEATER - used on later models

1шт.
