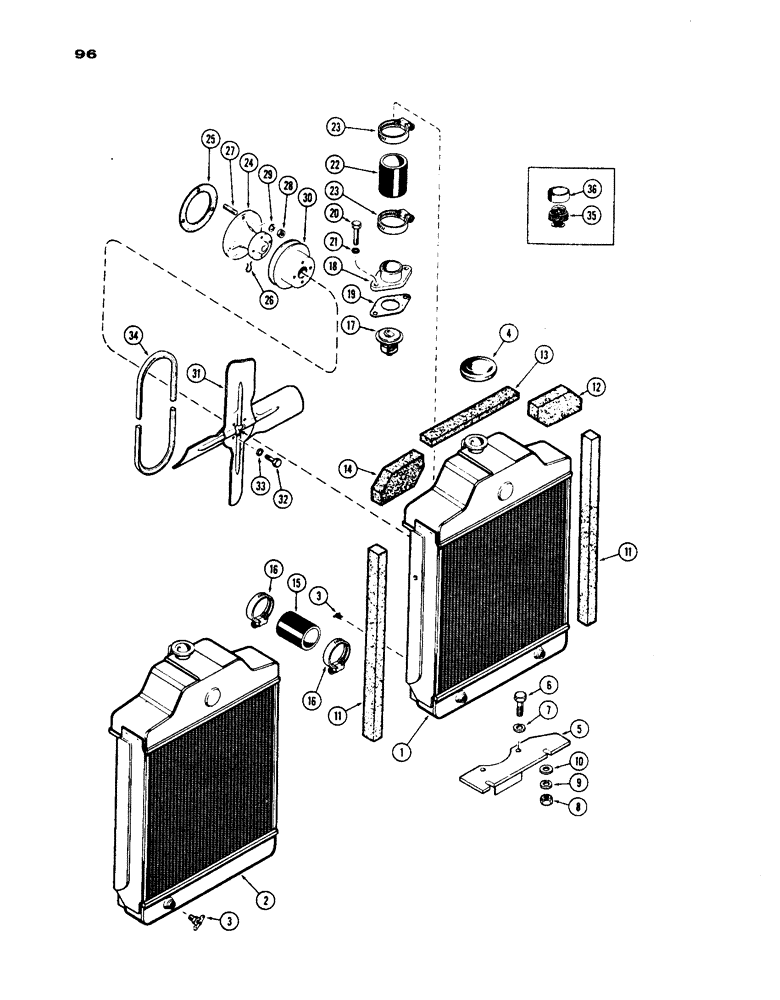

Запчасти Case IH 530 (096) - ENGINE COOLING SYSTEM, PRIOR TO S/N 8262800, 530 MODEL, 188 DIESEL ENGINE (02) - ENGINE

1

G45479

SPARE PART RADIATIOR - w/Case-O-Matic)

1шт.

G45484

RESERVOIR

TANK - includes cooler tubes

1шт.

2

G45266

SPARE PART RADIATOR - (w/std. clutch)

1шт.

3

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

4

G45179

CAP

CAP - radiator

1шт.

5

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

8

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

11

G46281

SPARE PART BAFFLE - radiator side

2шт.

12

G46278

BAFFLE

BAFFLE - radiator top L.H.

1шт.

13

G46280

BAFFLE

BAFFLE - radiator top center

1шт.

14

G46279

BAFFLE

BAFFLE - radiator top R.H.

1шт.

15

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

17

G45788

SPARE PART THERMOSTAT (180 deg.) (SN8191147 and after)

1шт.

18

G2144

FITTING

CONNECTION - water (SN8191147 and after)

1шт.

19

G46907

GASKET

GASKET - outlet (SN8191147 and after)

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

22

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

24

G11939

PUMP

WATER PUMP - complete (incl. ref. 25 & 26)

1шт.

24

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

24

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Water Pump

1шт.

24

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

24

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

24

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

25

G46875

GASKET

GASKET -, Serial Range: pump-cover

1шт.

26

VT4594

X

RING - retainer

1шт.

27

VT4512

X

STUD - pump mounting (3/8" x 1")

3шт.

28

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

3шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

30

G11339

PULLEY

PULLEY - drive

1шт.

31

G45243

FAN

FAN

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

34

G46238

BELT,0.55" W x 17.78" L

Fan Drive

1шт.

35

G37088

THERMOSTAT

THERMOSTAT (180 deg.) (Before SN8191147)

1шт.

36

G49625

SUPPORT

SPACER - thermostat (Before SN8191147)

1шт.
