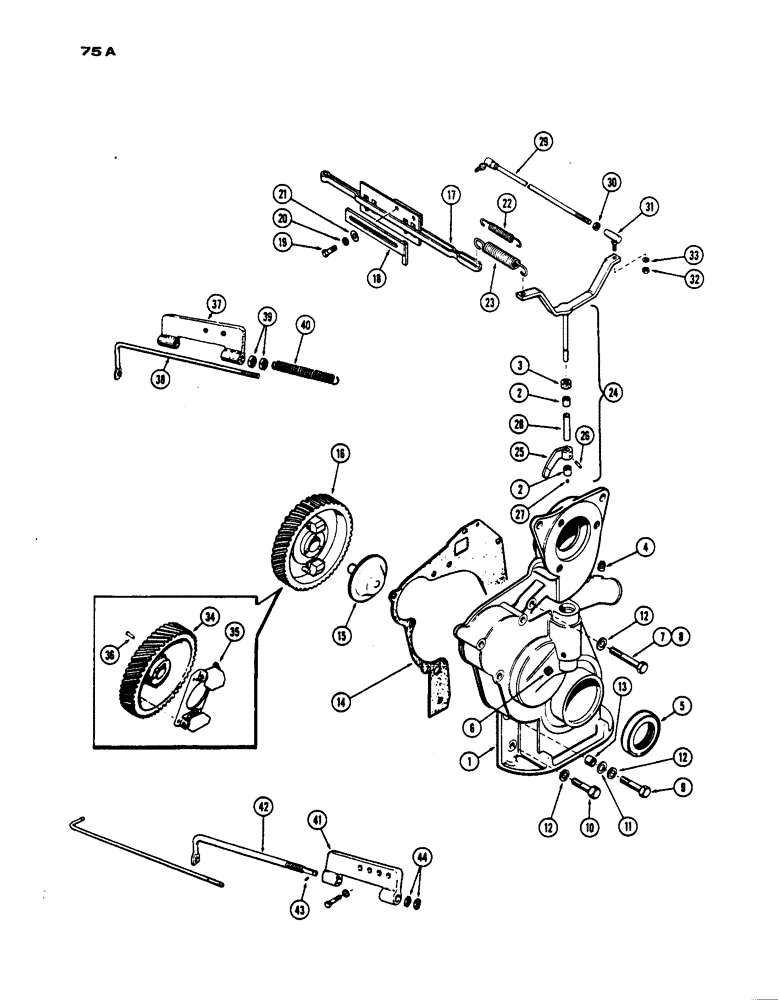

Запчасти Case IH 530 (075A) - GOVERNOR AND TIMING GEAR COVER, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A36979

COVER

ASSY. - timing gear (Replace VT334 & A35905) (incl. ref. 2 - 6)

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft

2шт.

3

VT3259

X

SEAL - dust, governor shaft

1шт.

4

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

5

A36609

OIL SEAL

OIL SEAL - crankshaft front

1шт.

6

VT3352

X

PLUG - pipe, 1/8" slotted

1шт.

7

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex hd.

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

195-25

WASHER,3/8"

- plain 3/8"

2шт.

12

92-6

LOCK WASHER,3/8"

9шт.

13

VT4535

X

RING - dowel

2шт.

14

VT3248

X

GASKET -, Serial Range: cover-block

1шт.

15

VTA855

X

SHAFT ASSY. - governor

1шт.

16

G37066

GEAR

- camshaft (incl. governor weights)

1шт.

17

G45793

ROD

- governor control (S.N. 6165270 and after) See ref. 38 & 42)

1шт.

18

G45792

STOP

- governor control rod (S.N. 6165270 and after)

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

195-521

WASHER,5/16", SAE

- 5/16" plain (pltd.)

2шт.

22

A37005

SPRING

- inner, governor control

1шт.

23

G48511

SPRING

- outer, governor control (gas)

1шт.

23

G48515

SPRING

- outer, governor control (L.P.G.)

1шт.

24

VTA850

X

SHAFT & LEVER ASSY. - governor (incl. ref. 25 & 26)

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER (Order VTA850)

1шт.

26

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

27

211-5

BALL,3/16" Dia

- thrust, shaft & lever

1шт.

28

VT3288

X

SPACER - thrust, shaft and lever

1шт.

29

G45310

ROD ASSY.

ROD - governor to carburetor (gas) (incl. ref. 30 & 31)

1шт.

29

G45224

GASKET

ROD - governor to carburetor (L.P.G.) (incl. ref. 30 & 31)

1шт.

30

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

32

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

VT540

GEAR - camshaft (w/o weights) See ref. 16

1шт.

35

VTA856

WEIGHT - governor (Before eng. #328TO6229)

1шт.

36

45-38

RIVET,But Hd, 3/16" x 1/2"

- 3/16 x 1/2" rd. hd.

4шт.

37

G1226

GUIDE - (cast) governor rod w/single spring

1шт.

38

G15690

ROD - governor control (Before tractor #6165270)

1шт.

39

131-412

NUT - adjusting, 3/8" N.F.

2шт.

40

VT3066

X

SPRING - governor speed (w/dry clutch)

1шт.

40

G47064

SPRING

- governor speed (w/Case-O-Matic)

1шт.

41

G2133

GUIDE

- (cast) governor rod w/double spring

1шт.

42

G11370

ROD - governor control

1шт.

43

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

44

131-412

NUT - lock, 7/16" N.F.

2шт.
