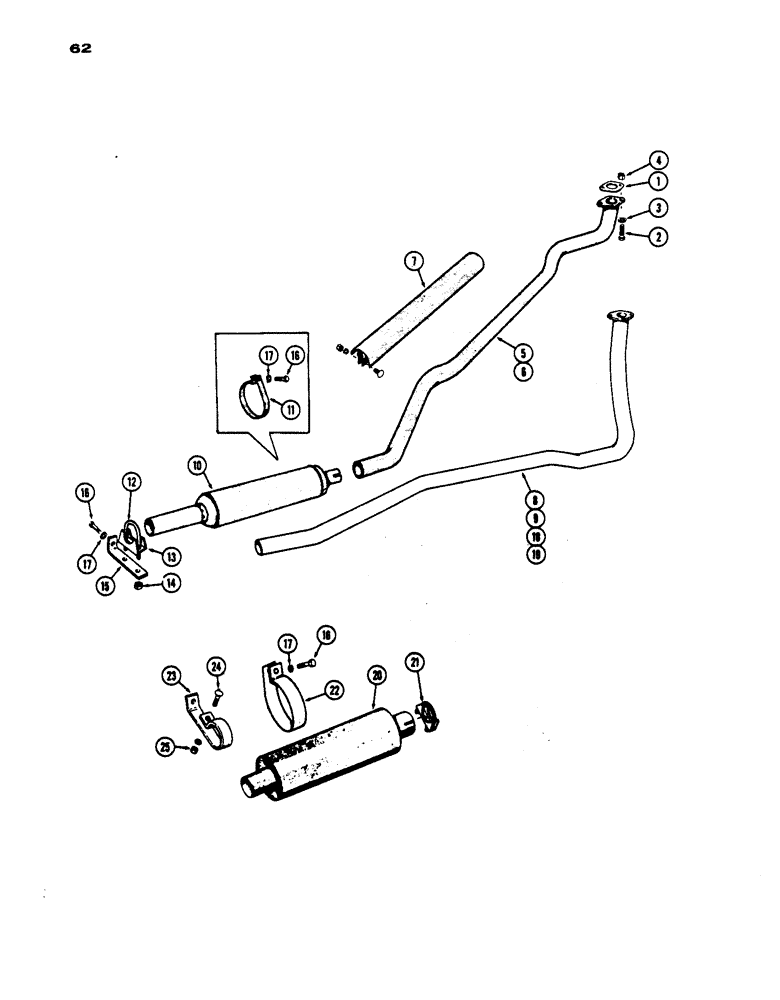

Запчасти Case IH 530 (062) - UNDERNEATH MUFFLER, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

G46853

MANIFOLD GASKET

- exhaust, Serial Range: pipe-manifold

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

VT3362

X

NUT - brass, 3/8" N.C. hex

2шт.

5

G45279

PIPE - exhaust (dry clutch Utility tractor before SN 8191147)

1шт.

6

G45282

PIPE - exhaust (dry clutch Gen. Purpose before SN 8191147)

1шт.

7

G14421

SHIELD - exhaust pipe (dry clutch tractor before SN 8191147)

1шт.

*

11-420

BOLT - 1/4" x 1-1/4" rd. hd. sq. neck

2шт.

*

25-104

NUT,1/4"-20, G5

2шт.

*

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Tractor before S/N 8191147 1/4"

1шт.

9

G45284

X

PIPE - exhaust (Case-O-Matic Gen. Purpose tractor before SN 8191147) No longer stocked Order ref. 19,20, 21 and 23

1шт.

11

G10823

BRACKET - rear, muffler (Utility before SN8191147)

1шт.

12

G46003

U-BOLT

"U" BOLT - muffler (Before SN8191147) Front only on Utility tractor

2шт.

13

G46004

CLAMP

- muffler (Before SN8191147) Front only on Utility tractor

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

A35176

PIPE - exhaust (Utility SN 8191147 and after)

1шт.

19

A35177

PIPE - exhaust (Gen. Purpose SN 8191147 and after)

1шт.

20

G45287

MUFFLER

- (SN8191147 and after)

1шт.

21

O6437AB

X

CLAMP - front, muffler (SN8191147 and after)

1шт.

22

G15786

CLAMP - rear (Utility SN8191147 and after)

1шт.

23

A35178

BRACKET

CLAMP - rear (Gen. Purpose SN8191147 and after)

1шт.

24

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.
