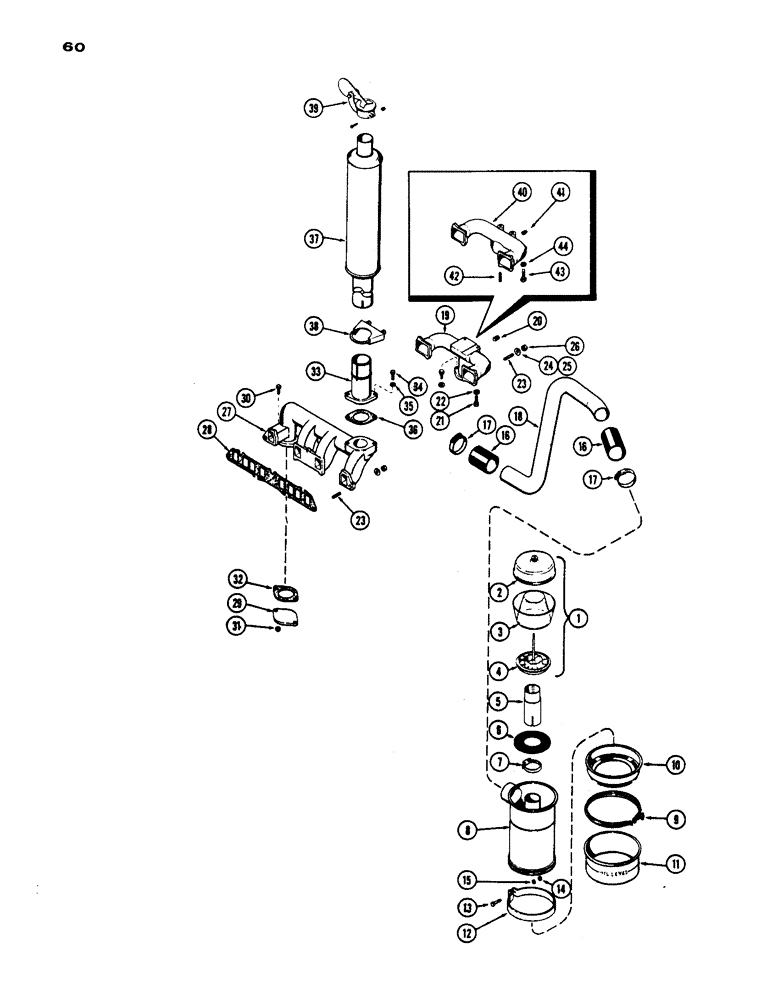

Запчасти Case IH 530 (060) - AIR CLEANER, MANIFOLD AND MUFFLER, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

D20604

PRECLEANER

PRE-CLEANER ASSY. (incl. ref. 2, 3 & 4)

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

LOWER HALF

1шт.

5

A35651

EXTENSION

- pre-cleaner

1шт.

6

A36854

SHIELD

- pre-cleaner extension

1шт.

7

214-22

X

CLAMP - extension to air cleaner

1шт.

8

G45238

AIR CLEANER - complete (incl. ref. 9, 10 & 11)

1шт.

9

G45153

CLAMP

- oil cup

1шт.

10

G46324

CUP

- oil, inner

1шт.

11

G46325

CUP

- oil, outer

1шт.

12

G15614

BAND - air cleaner mounting

1шт.

13

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rd. hd. sq. nk.

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

G46257

HOSE - intake tube 2" ID x 2.375" OD

2шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

18

G46258

TUBE - air cleaner to carburetor 2" OD

1шт.

19

G11964

X

MANIFOLD - intake (incl. ref. 20)

1шт.

20

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

1шт.

24

VT4504

WASHER

- special, stud

4шт.

25

95-6

WASHER,3/8"

- plain 3/8"

3шт.

26

VT3362

X

NUT - brass, 3/8" N.C.

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

VT3394

X

GASKET -, Serial Range: manifolds-head

1шт.

29

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex hd.

2шт.

31

VT3362

X

NUT - brass, 3/8" N.C.

2шт.

32

G46853

MANIFOLD GASKET

- exhaust opening flange

2шт.

33

G2095

FITTING

OUTLET - upright muffler

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

37

G45239

MUFFLER

MUFLER - upright

1шт.

38

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

39

G45048

CAP

- weather, upright muffler

1шт.

40

G37026

MANIFOLD - intake, L.P.C. (incl. ref. 41 & 42)

1шт.

41

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, L.P.C. Intake manifold Hex Soc, 1/4"-18 NPTF

1шт.

42

G10710

STUD

- carburetor, L.P.C. intake manifold

2шт.

43

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex hd., L.P.C. intake manifold

2шт.

44

92-6

LOCK WASHER,3/8"

L.P.C. intake manifold 3/8"

2шт.
