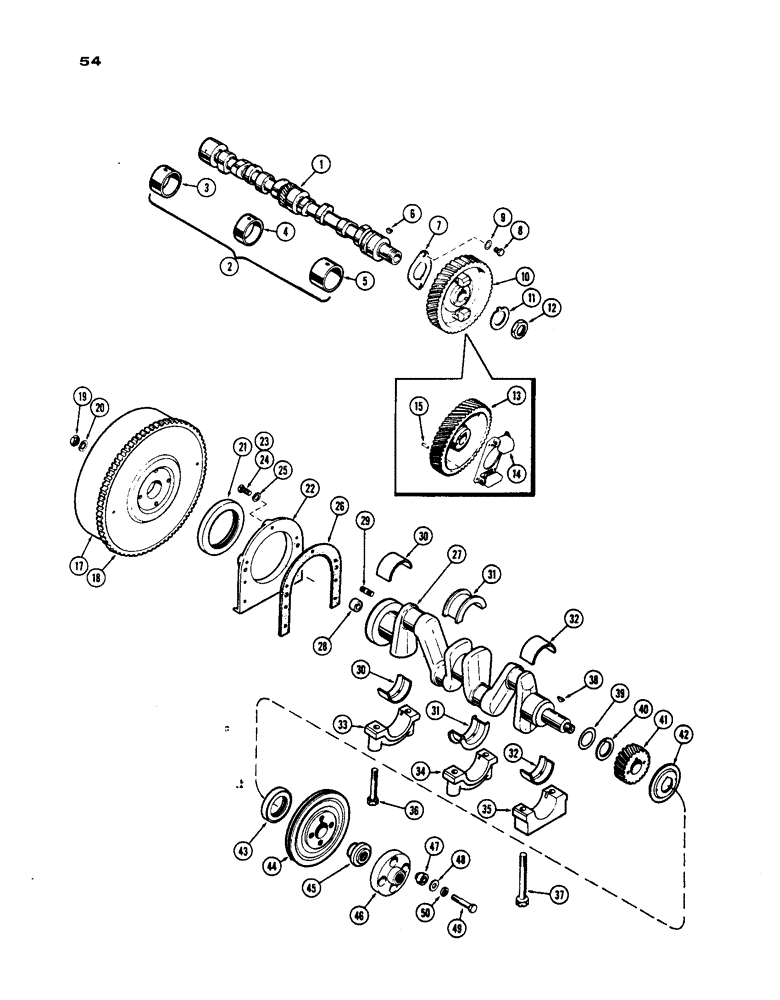

Запчасти Case IH 530 (054) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

G2049

CAMSHAFT

1шт.

2

VTA2621

X

BUSHING SET - camshaft (incl. ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

7

VT3365

X

PLATE - thrust, camshaft

1шт.

8

VT4500

X

SCREW - thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

G37066

GEAR

- camshaft (includes governor weight)

1шт.

11

VT4517

X

LOCKWASHER - camshaft nut

1шт.

12

VT4536

X

NUT - camshaft

1шт.

13

VT540

GEAR - (Less weight) Before eng. #328TO6229

1шт.

14

VTA856

WEIGHT - governor (Before eng. #328TO6229)

1шт.

15

45-38

RIVET,But Hd, 3/16" x 1/2"

- governor weight, 3/16" x 1/2" rd. hd.

4шт.

17

G11859

FLYWHEEL

ASSY. - (w/dry clutch), crankshaft and flywheel (incl. ref. 18)

1шт.

17

G11860

FLYWHEEL

ASSY. - (w/Case-O-Matic), crankshaft and flywheel (incl. ref. 18)

1шт.

18

G11710

GEAR

- ring (135 T), crankshaft and flywheel

1шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, crankshaft and flywheel

4шт.

20

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.

21

A36610

OIL SEAL

OIL SEAL - rear, crankshaft and flywheel

1шт.

22

G2017

RETAINER

- rear oil seal, crankshaft and flywheel

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft and flywheel 1/4"

7шт.

26

G46802

GASKET

- rear oil seal retainer, crankshaft and flywheel

1шт.

27

G11183

CRANKSHAFT

ASSY, crankshaft and flywheel (incl. ref. 28)

1шт.

28

VT3370

X

BUSHING - pilot, crankshaft and flywheel

1шт.

29

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

30

G37051

KIT

LINERS - rear bearing (Standard), crankshaft and flywheel

1шт.

30

G37052

KIT

LINERS - rear bearing (.002" undersize), crankshaft and flywheel

1шт.

30

G37053

KIT

LINERS - rear bearing (.020" undersize), crankshaft and flywheel

1шт.

30

G37054

KIT

LINERS - rear bearing (.040" undersize), crankshaft and flywheel

1шт.

31

G37047

KIT

LINERS - center bearing (Standard), crankshaft and flywheel

1шт.

31

G37048

KIT

LINERS - center bearing (.002" undersize), crankshaft and flywheel

1шт.

31

G37049

KIT

LINERS - center bearing (.020" undersize), crankshaft and flywheel

1шт.

31

G37050

KIT

LINERS - center bearing (.040" undersize), crankshaft and flywheel

1шт.

32

G37043

KIT

LINERS - front bearing (Standard), crankshaft and flywheel

1шт.

32

G37044

KIT

LINERS - front bearing (.002" undersize), crankshaft and flywheel

1шт.

32

G37045

KIT

LINERS - front bearing (.020" undersize), crankshaft and flywheel

1шт.

32

G37046

KIT

LINERS - front bearing (.040" undersize), crankshaft and flywheel

1шт.

33

G2037

CAP

- rear bearing, crankshaft and flywheel

1шт.

34

G2036

CAP

- center bearing, crankshaft and flywheel

1шт.

35

G2035

CAP

- front bearing, crankshaft and flywheel

1шт.

36

G49037

BOLT

- bearing cap (1/2" x 3"), crankshaft and flywheel

4шт.

37

G49059

BOLT

- front bearing c, crankshaft and flywheelap (1/2" x 4-3/4")

2шт.

37

G49063

BOLT

- front bearing cap (1/2" x 3-3/4"), crankshaft and flywheel

1шт.

38

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft, and flywheel

2шт.

39

VT3368

X

SHIM - thrust (.010"), crankshaft and flywheel

1шт.

40

VT3370

X

SPACER - thrust, crankshaft and flywheel

1шт.

41

VT3225

X

GEAR - crankshaft and flywheel

1шт.

42

VT3220

X

SLINGER - oil, crankshaft and flywheel

1шт.

43

A36609

OIL SEAL

OIL SEAL - front, crankshaft and flywheel

1шт.

44

G11342

X

PULLEY - fan & generator drive, crankshaft and flywheel

1шт.

45

A35673

NUT

- pulley to crankshaft, and flywheel

1шт.

46

G36217

HUB ASSY.

COUPLING - flexible, crankshaft and flywheel (incl. ref. 47)

1шт.

47

G36905

BLOCK

& BUSHING, crankshaft and flywheel

4шт.

48

VT3340

X

WASHER - coupling bolt, crankshaft and flywheel

4шт.

49

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Crankshaft and flywheel

4шт.

50

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.
