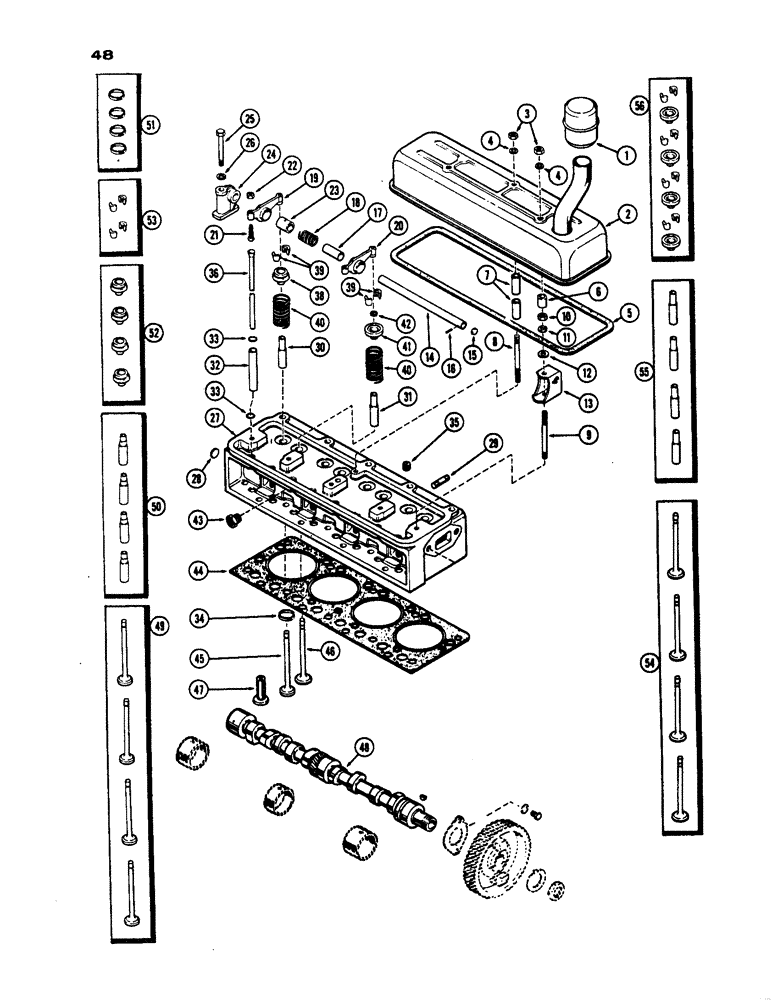

Запчасти Case IH 530 (048) - CYLINDER HEAD ASSEMBLY, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A36608

CAP

- oil filler & breather

1шт.

2

G11895

COVER - valve & rocker arm

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

4

VT3291

X

WASHER - plain, cover nut

3шт.

5

VT3246

GASKET -, Serial Range: cover-head

1шт.

6

VT4564

X

SPACER - cover (17/32" high)

2шт.

7

VT3142

X

SPACER - cover (19/32" high)

2шт.

8

G49504

STUD

- cover (3/8" x 4-5/8" w/1" thrd.)

1шт.

9

G49505

STUD

- cover (3/8" x 4-5/8" w/2" thrd.)

2шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

VT3291

X

WASHER - plain, bracket nut

2шт.

13

G46250

BRACKET

- rocker arm shaft

4шт.

14

VT4540

X

SHAFT - rocker arm

2шт.

15

O4404AB

X

PLUG - rocker shaft

2шт.

16

139-205

PIN - taper, rocker shaft 2/0 x 3/4", Tapered

2шт.

17

VT3238

X

SPACER - rocker arm shaft

2шт.

18

VT3237

X

SPRING - rocker arm shaft

4шт.

19

G45234

ARM

ROCKER ARM - R.H. (incl. ref. 21, 22, & 23)

4шт.

20

G45235

ARM

ROCKER ARM - L.H. (incl. ref. 21, 22, & 23)

4шт.

21

O5760AB1

X

SCREW - adjusting

1шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex

1шт.

23

O5759AB2

X

BUSHING - rocker arm

1шт.

24

G2107

BRACKET

- center, rocker arm shaft

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex hd.

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

G11993

HEAD ASSY. - cylinder (incl. ref. 28 - 35)

1шт.

28

VT5058

PLUG - rear (1-1/8" dia.)

1шт.

29

VT4510

X

STUD - manifold

7шт.

30

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (See ref. 49)

4шт.

31

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (See ref. 54)

4шт.

32

G11361

TUBE - push rod

8шт.

33

O3991CS

X

"O" RING - tube seal

16шт.

34

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (See ref. 50)

4шт.

35

VT3383

X

PLUG - safety

1шт.

36

G11086

ROD

PUSH ROD

8шт.

38

NSS

NOT SOLD SEPARAT

RETAINER - exhaust valve (See ref. 52)

4шт.

39

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (See ref. 53)

16шт.

40

VT3372

SPRING

- intake and exhaust valve

8шт.

41

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (See ref. 56)

4шт.

42

G46851

SEAL

- intake valve spring

4шт.

43

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

44

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

45

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 48)

4шт.

46

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 53)

4шт.

47

VT3236

X

TAPPET - valve

8шт.

48

G2049

CAMSHAFT

- (See Figure 54)

1шт.

49

G11827

KIT

VALVE - exhaust (Set of 4)

1шт.

50

VTA911

X

GUIDE - exhaust valve stem (Set of 4)

1шт.

51

G11931

KIT

INSERT - exhaust valve seat (Set of 4)

1шт.

52

G11926

RETAINER

- exhaust valve spring (Set of 4)

1шт.

53

G11929

LOCK

- valve spring (Set of 4)

4шт.

54

G11893

KIT

VALVE - intake (Set of 4)

1шт.

55

G10269

KIT

GUIDE - intake valve stem (Set of 4)

1шт.

56

G11927

RETAINER

- intake valve spring (Set of 4 w/lock)

1шт.
