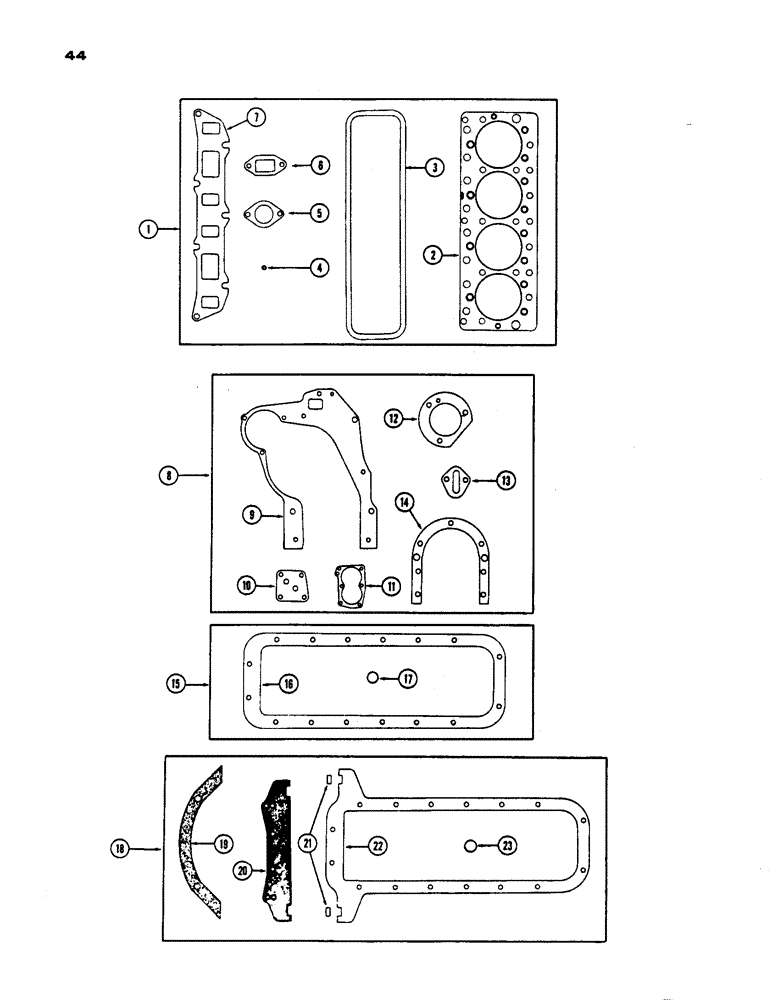

Запчасти Case IH 530 (044) - ENGINE GASKET KITS, PRIOR TO S/N 8262800, 530 MODELS, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

G11963

GASKET

VALVE GRIND KIT (incl. ref. 2 - 7)

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

VT3246

GASKET - valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

G46826

GASKET

- carburetor

1шт.

6

VT3228

X

GASKET - water outlet elbow

1шт.

7

VT3394

X

GASKET - manifold

1шт.

8

G11916

X

CYLINDER BLOCK KIT (incl. ref. 9 - 14)

1шт.

9

VT3248

X

GASKET - timing gear cover

1шт.

10

G46854

GASKET

- oil filter bracket

1шт.

11

G46852

GASKET

- oil pump cover

1шт.

12

G46875

GASKET

- water pump

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

G46802

GASKET

- rear oil seal retainer

1шт.

15

A40710

KIT

OIL PAN KIT (Std. Clutch) (incl. ref. 16 & 17)

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

17

O9844AB

X

GASKET - drain plug (1" O.D. x 3/4" I.D.)

1шт.

18

A40711

GASKET KIT

OIL PAN KIT (CASE-O-MATIC) (incl. ref. 19 - 23)

1шт.

19

G46913

GASKET

- block to torque tube

1шт.

20

G46811

GASKET

- support radius rod

1шт.

21

A11604

OIL PAN GASKET SET

- rear, oil, Serial Range: pan-engine

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

23

O9844AB

X

GASKET - drain plug (1" O.D. x 3/4" I.D.)

1шт.

23

VT4520

X

GASKET - drain plug (1-3/32" O.D. x 29/32" I.D.)

1шт.
