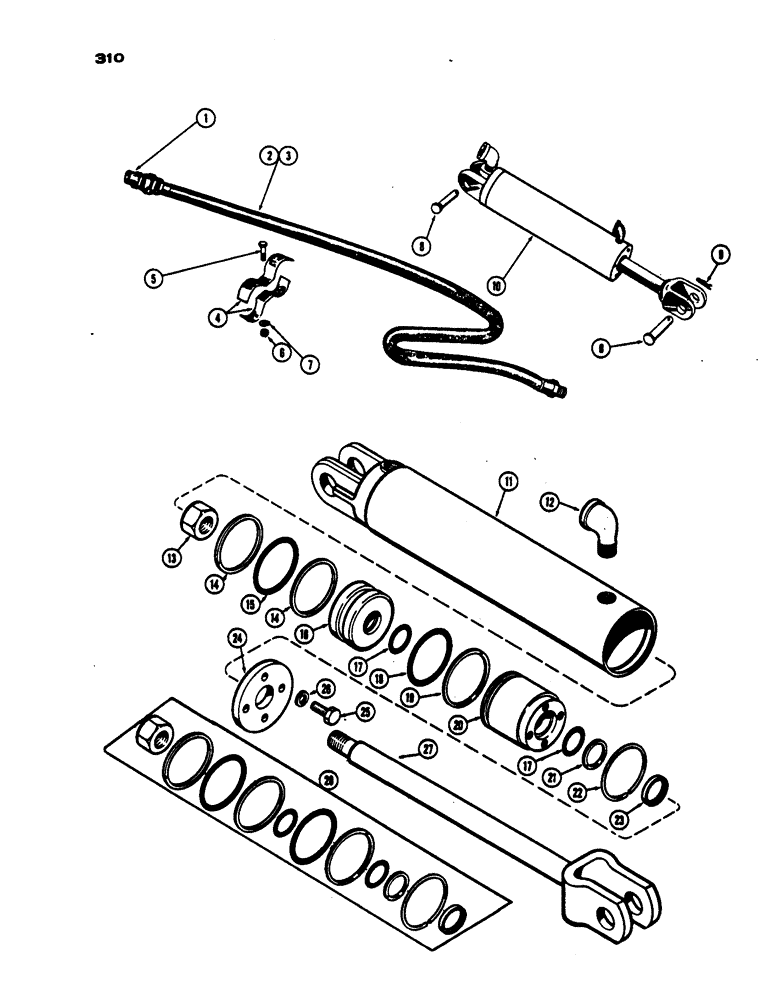

Запчасти Case IH 530 (310) - REMOTE CYLINDER AND HOSES, DRAFT-O-MATIC TRACTOR, PRIOR TO S/N 8262800 (08) - HYDRAULICS

1

4025AA

X

COUPLING - male (For repairs see Figure 308)

1шт.

2

A20816

HOSE

- tractor to cylinder (92")

1шт.

3

A20817

HOSE

- tractor to cylinder (104")

1шт.

4

O8681AB

X

CLAMP - remote hose

2шт.

5

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

6

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

O8361AB

X

PIN - coupling, cylinder

2шт.

9

VC1419

X

PIN - cotter, coupling pin

2шт.

10

A35900

CYLINDER - remote hydraulic (incl. ref. 11 - 27)

1шт.

11

A35893

CYLINDER

TUBE ASSY. - cylinder

1шт.

12

221-1561

ELBOW UNION

ELBOW - reducing, 1/2 x 3/8"

2шт.

13

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock, piston (3/4" N.F.)

1шт.

14

A35810

RING

- piston

2шт.

15

V20357

X

"O" RING - piston (2-1/2" O.D.)

1шт.

16

A35897

PISTON ASSY.

PISTON

1шт.

17

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - piston rod (1-1/4" O.D.)

1шт.

18

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - inner head (2-1/2" O.D.)

1шт.

19

A35901

RING

- back-up (2-1/2" O.D.)

1шт.

20

A35895

HEAD - inner

1шт.

21

A35899

RING

- back-up (1-1/4" O.D.)

1шт.

22

A35898

RING, SNAP

SNAP RING -, Serial Range: head-cylinder

1шт.

23

A35902

OIL SEAL

- piston rod

1шт.

24

A35896

PLATE - end

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

A35894

ROD - piston

1шт.

28

A24671

KIT

- repair (includes ref. 13, 14, 15, 17, 18, 19, 21, 22, 23)

1шт.
