Запчасти Case IH 530 (304) - HYDRAULIC CONTROLS AND LEVERS, DRAFT-O-MATIC TRACTORS, PRIOR TO S/N 8262800 (08) - HYDRAULICS

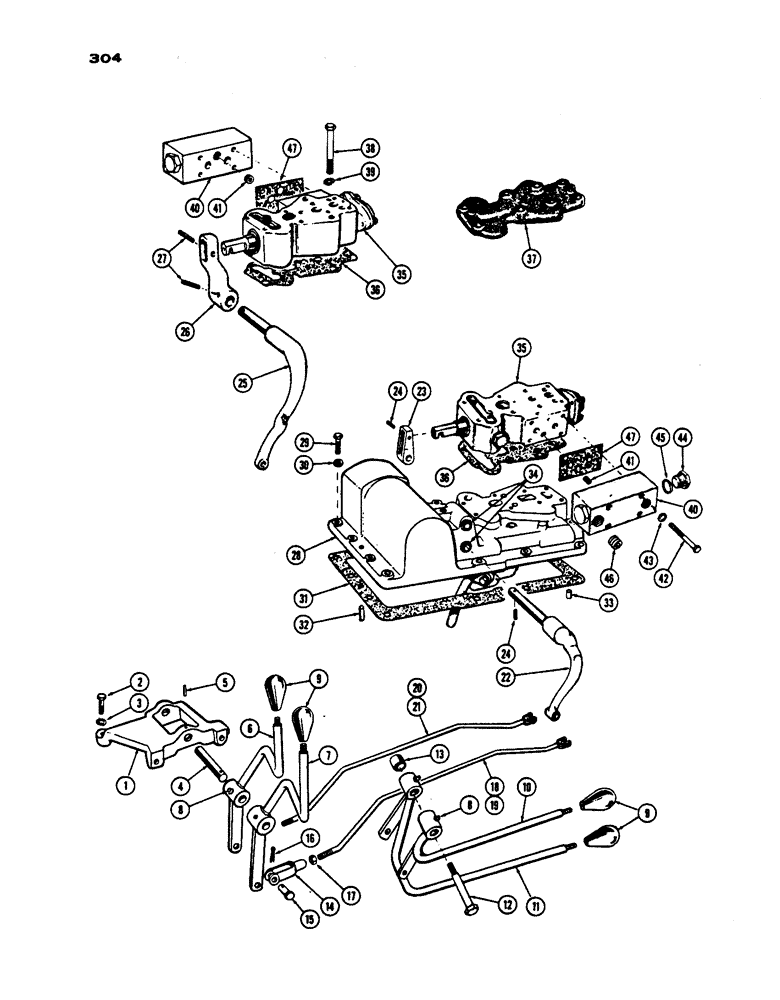

Схема запчастей Case IH 530 - (304) - HYDRAULIC CONTROLS AND LEVERS, DRAFT-O-MATIC TRACTORS, PRIOR TO S/N 8262800 (08) - HYDRAULICS
12
33
39
47
8
37
25
20
34
5
36
41
27
30
32
17
4
35
40
28
9
1
6
24
36
47
26
21
46
18
13
42
2
16
7
22
8
15
14
10
23
3
29
24
38
35
44
40
45
9
31
11
43
41
19

Артикул

Название

Примечание

Количество

1

A35478

BRACKET

- hand lever (Standard)

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

A35488

SHAFT

- pivot, hand lever (Standard)

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Pivot shaft 1/4" x 1 1/4", Slotted

1шт.

6

A35481

LEVER - hand, inner (Standard)

1шт.

7

A35485

LEVER - hand, outer (Standard)

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - 1/4" str. drive

2шт.

9

A14051

GRIP

KNOB - hand lever

2шт.

10

A35430

LEVER - hand inner (Gen. Purpose)

1шт.

11

A35432

LEVER - hand, outer (Gen. Purpose)

1шт.

12

G49055

STEP BOLT

BOLT - pivot, hand lever (Gen. Purpose)

1шт.

13

G49605

SPACER - hand lever (Gen. Purpose)

1шт.

14

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod to lever

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

16

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

4шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

18

A35480

ROD - control, outer (Standard)

1шт.

19

A35452

ROD

- control, outer (Gen. Purpose)

1шт.

20

A35479

ROD - control, inner (Standard)

1шт.

21

A35451

ROD - control, inner (Gen. Purpose)

1шт.

22

G30632

CRANK - lower, Serial Range: valve-rod

1шт.

23

G1108

ARM ASSY.

BELLCRANK - lower valve spool

1шт.

24

138-2005

PIN,1/4" x 1", Coiled

2шт.

25

G30634

BUSHING

CRANK - upper, Serial Range: valve-rod

1шт.

26

G1107

CRANK

BELLCRANK - upper valve spool

1шт.

27

138-2005

PIN,1/4" x 1", Coiled

2шт.

28

A35424

HOUSING

- adapter, hyd. pump & valve

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

29

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

30

92-6

LOCK WASHER,3/8"

11шт.

31

G10876

GASKET

- adapter housing

1шт.

32

G10711

PIN

- dowel, rear

1шт.

33

VT4453

X

PIN - dowel, front

1шт.

34

A35528

BUSHING - crank

4шт.

35

A35618

LOCK VALVE

VALVE - control (For repairs see Figure 274)

2шт.

36

A35617

GASKET

- valve

3шт.

37

A35440

COVER - valve (w/no hitch)

1шт.

38

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

- 5/16 x 5-1/4" N.C. hex hd.

7шт.

38

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

1шт.

39

92-5

LOCK WASHER,5/16"

8шт.

40

A35437

MANIFOLD

- valve

2шт.

41

VT3395

X

PLUG - pipe, manifold, inner

2шт.

42

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

42

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT - 5/16" x 2-3/8" N.C. hex hd.

2шт.

43

92-5

LOCK WASHER,5/16"

8шт.

44

A14280

PLUG

- end, manifold

4шт.

45

O9844AB

X

GASKET - end plug

4шт.

46

221-1843

PLUG

- pipe, lower manifold

1шт.

47

G10930

GASKET

-, Serial Range: manifold-valve

2шт.
