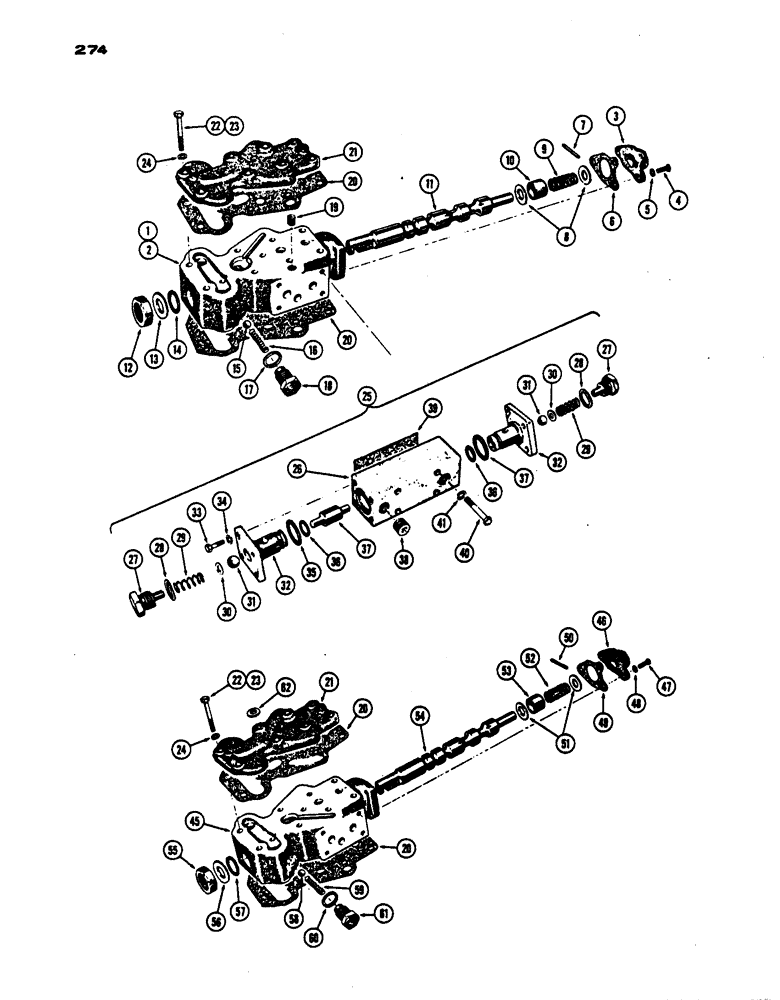

Запчасти Case IH 530 (274) - HYDRAULIC CONTROL VALVE PARTS, EAGLE HITCH TRACTOR, PRIOR TO S/N 8262800 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G13985
VALVE ASSY. - primary (w/dry clutch) (incl. ref. 3 - 19)
1шт.
2
G13983
VALVE ASSY. - second (w/dry clutch) (incl. ref. 3 - 19)
1шт.
3
G1102
CAP - end
1шт.
4
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
3шт.
5
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
6
G10903
GASKET
- end cap
1шт.
7
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, , Spool spring 1/8" x 3/4", Slotted
1шт.
8
A35302
WASHER - spring retainer
2шт.
9
VT5129
X
SPRING - spool
1шт.
10
G10901
SLEEVE
- spool
1шт.
11
G15968
SPOOL
- valve
1шт.
12
G13807
OIL SEAL
OIL SEAL - valve spool
1шт.
13
G49403
WASHER
- retainer, "O" ring
1шт.
14
O8377AB
X
"O" RING - valve spool
1шт.
15
211-11
BALL,3/8" Dia
- detent, . (G13983 only) 3/8" Dia
1шт.
16
VT2006
X
SPRING - detent (G13983 only)
1шт.
17
VT2795
X
"O" RING - detent plug
1шт.
18
G10902
PLUG - detent opening
1шт.
19
VT3395
X
PLUG - top (G19385 only)
1шт.
20
G46838
GASKET
- valve and cover
2-3шт.
21
G1232
COVER - valve
1шт.
22
13-548
CAP,Hex, 5/16" - 18 x 3", Gr 5
BOLT - 5/16" x 3" N.C. hex (w/single valve)
4шт.
22
13-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
- 5/16" x 3-1/4" N.C. hex (w/single valve)
4шт.
23
13-580
X,Hex, 5/16" - 18 x 5", Gr 5
BOLT - 5/16" x 5" N.C. hex (w/double valve)
4шт.
23
13-584
BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5
- 5/16" x 5-1/4" N.C. hex (w/double valve)
4шт.
24
92-5
LOCK WASHER,5/16"
8шт.
25
G13106
INTERLOCK - hydraulic valve (incl. ref. 26 - 38)
1-2шт.
26
G15481
BODY
- interlock, hydraulic parts
1шт.
27
G10909
PLUG
- end, hydraulic interlock parts
2шт.
28
O9844AB
X
GASKET - end plug, hydraulic interlock parts
2шт.
29
V14853
X
SPRING - plunger, hydraulic interlock parts
2шт.
30
95-3
WASHER,#12
- 1/4" plain, hydraulic interlock parts
2шт.
31
211-13
BALL,1/2" Dia
- check valve, hydraulic interlock parts 1/2" Dia
2шт.
32
G10907
COVER
- end, hydraulic interlock parts
2шт.
33
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hydraulic interlock parts Hex, 5/16"-18 x 3/4", G5, Full Thd
8шт.
34
92-5
LOCK WASHER,5/16"
hydraulic interlock parts 5/16"
8шт.
35
VT4593
X
"O" RING - outer seal, hydraulic interlock parts
2шт.
36
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
"O" RING - inner seal, hydraulic interlock parts
2шт.
37
G10908
PLUNGER
hydraulic interlock parts
1шт.
39
G10930
GASKET
- interlock to valve, hydraulic interlock parts
1-2шт.
40
13-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
Hydraulic interlock parts Hex, 5/16"-18 x 2 1/2", G5
4-8шт.
41
92-5
LOCK WASHER,5/16"
hydraulic valve for case-o-matic 5/16"
4-8шт.
45
G14140
VALVE ASSY. (w/Case-O-Matic), hydraulic valve (incl. ref. 46 - 61)
1-2шт.
46
G1102
CAP - end, hydraulic valve for case-o-matic
1шт.
47
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Hydraulic valve for Case-o-matic Hex, 1/4"-20 x 3/4", G5, Full Thd
3шт.
48
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Hydraulic valve for Case-o-matic 1/4"
3шт.
49
G10903
GASKET
- end cap, hydraulic valve for case-o-matic
1шт.
50
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, , Spool spring, hydraulic valve for Case-o-matic 1/8" x 3/4", Slotted
1шт.
51
A35302
WASHER - spring retainer, hydraulic valve for case-o-matic
2шт.
52
VT5129
X
SPRING - spool, hydraulic valve for case-o-matic
1шт.
53
G10901
SLEEVE
- spool, hydraulic valve for case-o-matic
1шт.
54
G15968
SPOOL
- valve, hydraulic valve for case-o-matic
1шт.
55
G13807
OIL SEAL
OIL SEAL - valve spool, hydraulic valve for case-o-matic
1шт.
56
G49403
WASHER
- retainer "O" ring, hydraulic valve for case-o-matic
1шт.
57
O8377AB
X
"O" RING - valve spool, hydraulic valve for case-o-matic
1шт.
58
211-11
BALL,3/8" Dia
detent, ., hydraulic valve for case-o-matic 3/8" Dia
1шт.
59
VT2006
X
SPRING - detent, hydraulic valve for case-o-matic
1шт.
60
VT2795
X
"O" RING - detent plug, hydraulic valve for case-o-matic
1шт.
61
G10902
PLUG - detent opening, hydraulic valve for case-o-matic
1шт.
62
G46843
X
WASHER - sealing, 5/16" I.D., hydraulic valve for case-o-matic
1шт.
Выбрано товаров: 61
