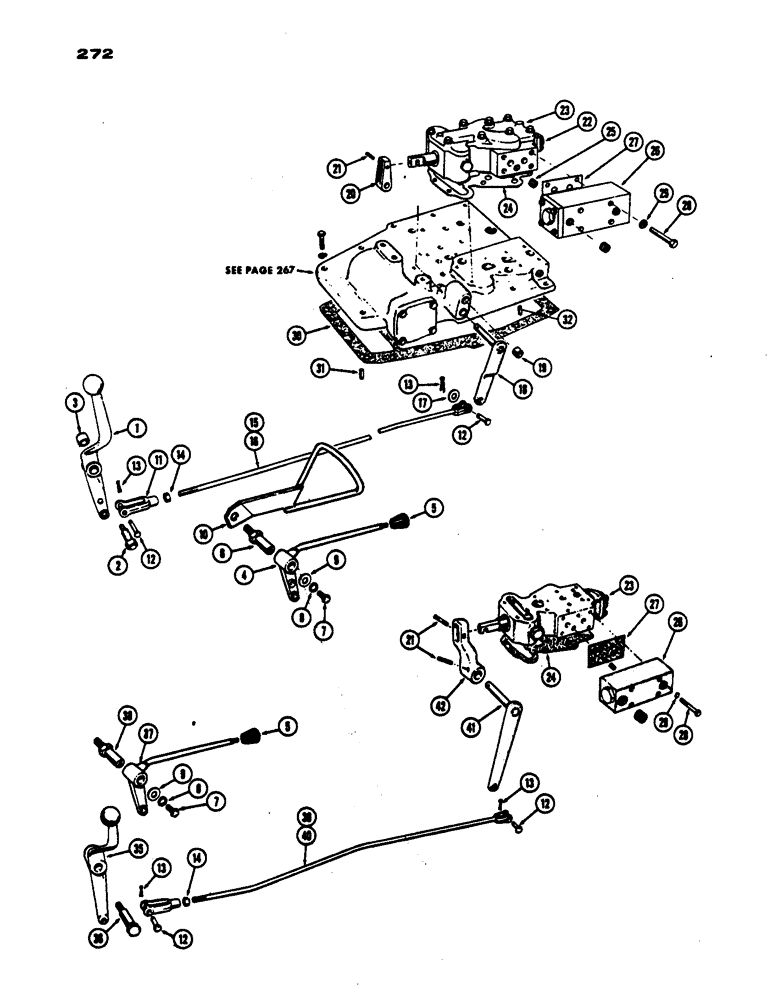

Запчасти Case IH 530 (272) - HYDR. CONTROLS AND LEVERS, EAGLE HITCH TRACTOR, CASE-O-MATIC, PRIOR TO S/N 8262800 (08) - HYDRAULICS

1

G1103

LEVER

- hand (Before SN 8191147)

1шт.

2

G49054

BOLT - hand lever (Before SN 8191147)

1шт.

3

G49605

SPACER - hand lever (Before SN 8191147)

1шт.

4

G30631

LEVER ASSY.

LEVER - hand (SN 8191147 and after Order A35338 when stock is exhausted

1шт.

4

A35338

LEVER

- hand (SN 8191147 and after)

1шт.

5

A14051

GRIP

KNOB - hand lever (SN 8191147 and after)

1шт.

6

G15973

BOLT - hand lever (SN 8191147 and after)

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

10

G30630

REST - steady (SN 8191147 and after)

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod to lever

1-2шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

2-4шт.

13

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2-4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1-2шт.

15

G46186

ROD - control (Utility)

1шт.

16

G46188

ROD - control (Gen. Purpose)

1шт.

17

E134S

WASHER - spacer, Serial Range: crank-yoke

1шт.

18

G14090

CRANK - control rod

1шт.

19

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BEARING - crank (in housing)

2-4шт.

20

G1108

ARM ASSY.

BELLCRANK - control valve

1шт.

21

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2-4шт.

22

G14140

VALVE ASSY. - hyd. control (Repairs Figure 274)

1-2шт.

23

G1232

COVER - valve

1шт.

24

G46838

GASKET

- valve and cover

2-3шт.

25

G49073

PLUG - drilled (w/Eagle Hitch only)

1шт.

26

G13106

INTERLOCK ASSY. - hyd. valve (Repairs Figure 274)

1-2шт.

27

G10930

GASKET

-, Serial Range: interlock-valve

1-2шт.

28

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4-8шт.

29

92-5

LOCK WASHER,5/16"

4-8шт.

30

G46818

GASKET

- adapter housing

1шт.

31

G10711

PIN

- dowel, housing rear

1шт.

32

VT4453

X

PIN - dowel, housing front

1шт.

35

G1104

LEVER

- hand (Before SN 8191147), remote w/eagle hitch or double remote

1шт.

36

G49055

STEP BOLT

BOLT - hand lever (Before SN 8191147), remote w/eagle hitch or double remote

1шт.

37

G30633

LEVER ASSY.

LEVER - hand (SN 8191147 and after) Order A34339 when stock is exhausted, remote w/eagle hitch or double remote

1шт.

37

A35339

LEVER

- hand (SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

38

G15977

BOLT - hand lever (SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

39

G46187

ROD - control (Utility), remote w/eagle hitch or double remote

1шт.

40

G46189

ROD - control (Gen. Purpose), remote w/eagle hitch or double remote

1шт.

41

G14091

CRANK - control rod, remote w/eagle hitch or double remote

1шт.

42

G1107

CRANK

BELLCRANK - upper control valve, remote w/eagle hitch or double remote

1шт.
