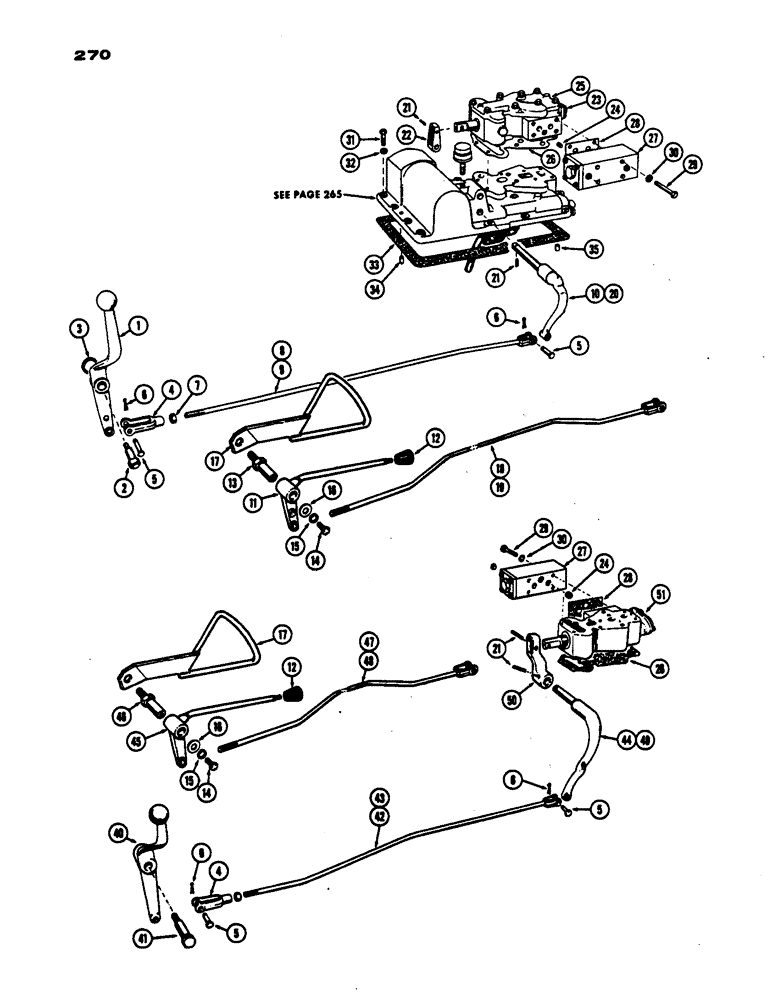

Запчасти Case IH 530 (270) - HYDR. CONTROLS AND LEVERS, EAGLE HITCH TRACTOR, DRY CLUTCH DRIVE, PRIOR TO S/N 8262800 (08) - HYDRAULICS

1

G1103

LEVER

- hand (Before SN 8191147)

1шт.

2

G49054

BOLT - hand lever (Before SN 8191147)

1шт.

3

G49605

WASHER - spacer (Before SN 8191147)

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to lever

1-2шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2-4шт.

6

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2-4шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1-2шт.

8

G10917

ROD - control (Gen. purpose before SN 8191147)

1шт.

9

G10967

ROD - control (Utility before SN 8191147)

1шт.

10

G13110

CRANK

- control rod (Before SN 8191147)

1шт.

11

G30631

LEVER ASSY.

LEVER - hand (Before S.N. 8191147)

1шт.

11

A35338

LEVER

- hand (SN 8191147 and after)

1шт.

12

A14051

GRIP

KNOB - hand lever (SN 8191147 and after)

1-2шт.

13

G15973

BOLT - hand lever (SN 8191147 and after)

1шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

17

G30630

REST - steady (Gen. Purpose SN 8191147 and after)

1шт.

18

G46186

ROD - control (Utility SN 8191147 and after)

1шт.

19

G46188

ROD - control (Gen. purpose SN 8191147 and after)

1шт.

20

G30632

CRANK - control rod (SN 8191147 and after)

1шт.

21

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2-4шт.

22

G1108

ARM ASSY.

BELLCRANK - control valve

1шт.

23

G13983

VALVE ASSY. - hyd. control (Repairs Figure 274)

1шт.

24

G49073

PLUG - drilled (w/Eagle Hitch only)

1шт.

25

G1232

COVER - control valve

1шт.

26

1342778C1

GASKET

- valve and cover (Replaces G46868, G46838)

2-3шт.

27

G13106

INTERLOCK ASSY. - hyd. valve (Repairs Figure 274)

1-2шт.

28

G10930

GASKET

-, Serial Range: interlock-valve

1-2шт.

29

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4-8шт.

30

92-5

LOCK WASHER,5/16"

4-8шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

32

92-6

LOCK WASHER,3/8"

11шт.

33

G10876

GASKET

- adapter housing

1шт.

34

G10711

PIN

- dowel, adapter housing rear

1шт.

35

VT4453

X

PIN - dowel, adapter housing front

1шт.

40

G1104

LEVER

- hand (Before SN 8191147), remote w/eagle hitch or double remote

1шт.

41

G49055

STEP BOLT

BOLT - hand lever (Before SN 8191147), remote w/eagle hitch or double remote

1шт.

42

G46230

ROD

- control (Utility before SN 8191147), remote w/eagle hitch or double remote

1шт.

43

G46231

ROD - control (Gen. purpose before SN 8191147), remote w/eagle hitch or double remote

1шт.

44

G13111

CRANK

- control rod (Before SN 8191147), remote w/eagle hitch or double remote

1шт.

45

G30633

LEVER ASSY.

LEVER - hand (Before S.N. 8191147), remote w/eagle hitch or double remote

1шт.

45

A35339

LEVER

- hand (SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

46

G15977

BOLT - hand lever (SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

47

G46187

ROD - control (Utility SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

48

G46189

ROD - (Gen. purpose SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

49

G30634

BUSHING

CRANK - control rod (SN 8191147 and after), remote w/eagle hitch or double remote

1шт.

50

G1107

CRANK

BELLCRANK - upper valve, remote w/eagle hitch or double remote

1шт.

51

G13985

VALVE ASSY. - hyd. control (Repairs Figure 274), remote w/eagle hitch or double remote

1шт.
