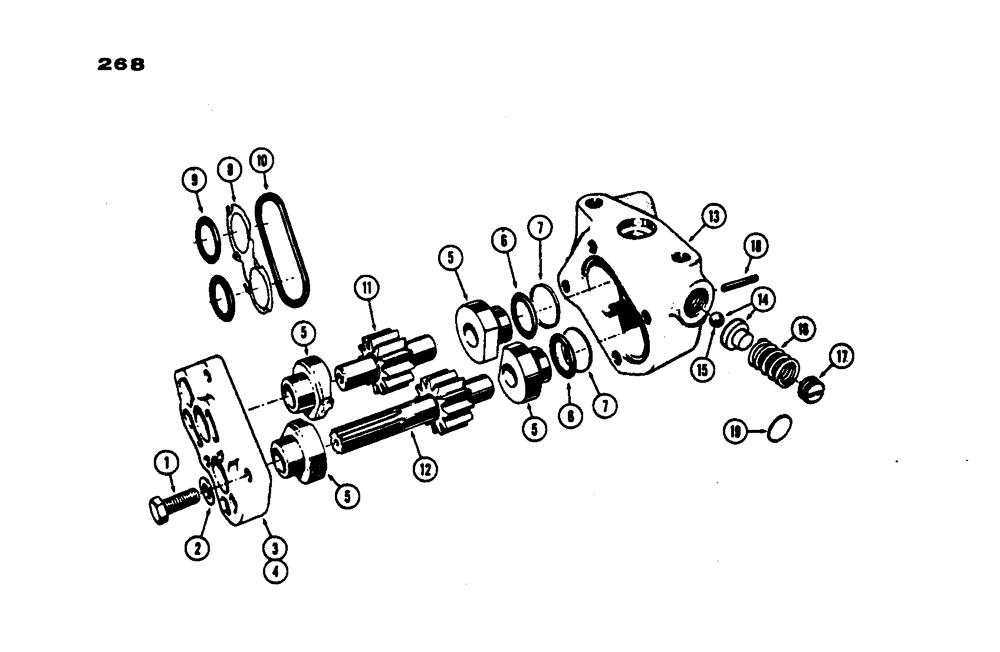

Запчасти Case IH 530 (268) - HYDRAULIC PUMP PARTS, PRIOR TO S/N 8262800 (08) - HYDRAULICS

G45400

PUMP

- w/dry clutch (new style) Before SN 8191147 (incl. ref. 1 - 19)

1шт.

G13100

X

PUMP - w/dry clutch (old style) Order G45400 (incl. ref. 1 - 19)

1шт.

1

G49095

BOLT - cover

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

G4523

COVER - (new style)

1шт.

4

G4500

COVER - (old style)

1шт.

5

G49673

BEARING

- gear (new style)

4шт.

6

G46908

O-RING

"O" RING - bearing seal (new style)

2шт.

7

G49637

RING

PLATE - back up (new style)

2шт.

8

G46052

PLATE

- spring, bearing (old style)

1шт.

9

O8377AB

X

"O" RING - bearing seal (old style)

2шт.

10

G46055

SEAL

"O" RING - cover seal (old style)

1шт.

11

G46049

GEAR - driven

1шт.

12

G46048

GEAR - drive

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - (Order G45400)

1шт.

14

A36058

X

RETAINER ASSY. - relief ball (incl. ref. 15)

1шт.

15

211-10

BALL

- relief (11/32" dia.)

1шт.

16

G48516

SPRING

- relief

1шт.

17

G49094

PLUG - relief valve (new style)

1шт.

18

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Relief valve (old style) 3/16" x 1 1/8", Slotted

1шт.

19

G46053

SHIM - relief valve

1шт.
