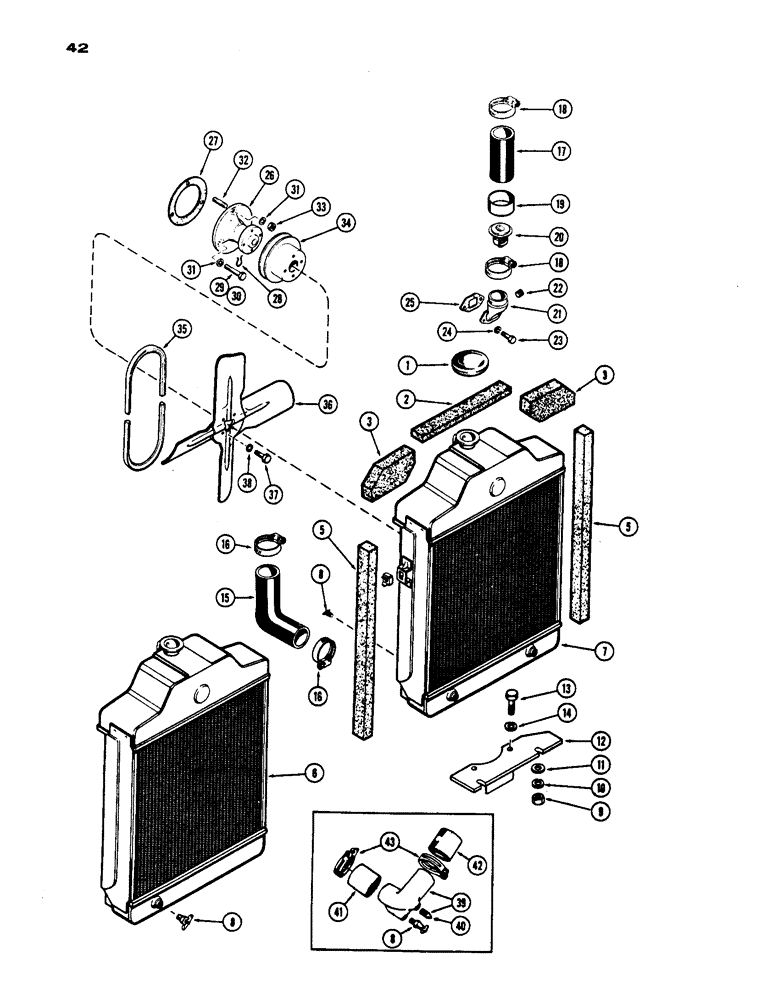

Запчасти Case IH 530 (042) - ENGINE COOLING SYSTEM, PRIOR TO S/N 8262800, 530 MODEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

G45179

CAP

CAP - radiator

1шт.

2

G46280

BAFFLE

BAFFLE - radiator top center

1шт.

3

G46278

BAFFLE

BAFFLE - radiator top R.H.

1шт.

4

G46279

BAFFLE

BAFFLE - radiator top L.H.

1шт.

5

G46281

SPARE PART BAFFLE - radiator side

2шт.

6

G45266

SPARE PART RADIATOR - (w/standard clutch)

1шт.

7

G45479

SPARE PART RADIATOR - (w/Case-O-Matic)

1шт.

G45484

RESERVOIR

TANK - lower

1шт.

8

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

9

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C.

2шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

11

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

12

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

15

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

HOSE - lower, radiator (S.N. 6169603 and After)

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

17

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Elbow Radiator

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

3шт.

19

G49625

SUPPORT

SPACER - thermostat

1шт.

20

G11065

CASE

THERMOSTAT (177, Serial Range: deg.-182"F)

1шт.

21

G11965

ELBOW

ELBOW - cylinder head to radiator (incl. ref. 22)

1шт.

22

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

25

VT3228

X

GASKET -, Serial Range: elbow-head

1шт.

26

G11956

WATER PUMP

WATER PUMP - complete (incl. ref. 27 & 28)

1шт.

26

A48364

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

26

A48325

CORE-WATER PUMP

Return Number, Water Pump

1шт.

27

G46875

GASKET

GASKET -, Serial Range: pump-cover

1шт.

28

VT4594

X

RING - retainer

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.C. hex hd.

1шт.

31

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

32

VT4512

X

STUD - pump mtg. (3/8" x 1")

1шт.

33

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.

34

G11339

PULLEY

PULLEY - fan & pump drive

1шт.

35

G46238

BELT,0.55" W x 17.78" L

Drive, Fan and Pump

1шт.

36

G45243

FAN

FAN

1шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

38

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

39

G11088

SPARE PART ELBOW - lower (Before SN 6169603)

1шт.

40

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

41

G46254

HOSE

HOSE - elbow to radiator (Before SN 6169603)

1шт.

42

VT4948

X

HOSE - elbow to water pump (Before SN 6169603)

1шт.

43

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, - lower hose #28, 1.31/2.25 Type F Worm

4шт.
