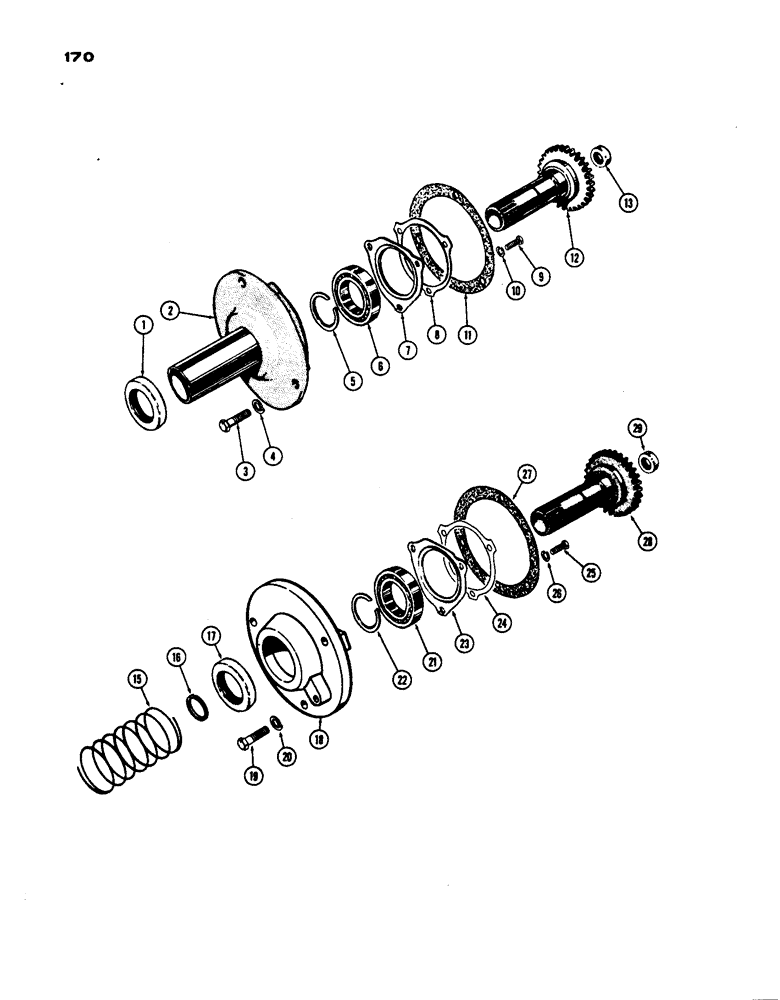

Запчасти Case IH 530 (170) - HYDRAULIC PUMP DRIVE, S/N 8191147 BEFORE AND AFTER, PRIOR TO S/N 8262800 (08) - HYDRAULICS

1

G10422

OIL SEAL

OIL SEAL - drive housing, Start Serial: 8191147

1шт.

2

G14468

HOUSING

- hydraulic pump drive, Start Serial: 8191147

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

, Start Serial: 8191147

3шт.

4

92-6

LOCK WASHER,3/8"

, Start Serial: 8191147

3шт.

5

O6502AB

RING, SNAP

SNAP RING - rear, Start Serial: 8191147

1шт.

6

G13075

BEARING, BALL

BEARING - (N.D. #3L09), Start Serial: 8191147

1шт.

7

G10383

BEARING CAP

CAP - bearing retainer, Start Serial: 8191147

1шт.

8

G10382

LOCK

- bearing cap, Start Serial: 8191147

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

, Start Serial: 8191147

3шт.

10

92-5

LOCK WASHER,5/16"

, Start Serial: 8191147

3шт.

11

G10407

GASKET

- housing, Start Serial: 8191147

1шт.

12

A35803

CLAMP

GEAR - drive, Start Serial: 8191147

1шт.

13

G13816

OIL SEAL

OIL SEAL - drive gear, Start Serial: 8191147

1шт.

15

G16712

VALVE SPRING

SPRING - release, bearing carrier, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

16

O5854AB

X

SNAP RING - front, drive gear, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

17

G10422

OIL SEAL

OIL SEAL - drive housing, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

18

G1349

HOUSING - hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic pump drive- before S/N 8191147 Hex, 3/8"-16 x 1", G5, Full Thd, Serial Range: -8191147

3шт.

20

92-6

LOCK WASHER,3/8"

hydraulic pump drive- before s/n 8191147 3/8", Serial Range: -8191147

3шт.

21

G13075

BEARING, BALL

BEARING - drive gear (N.D. #3L09), hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

22

O6502AB

RING, SNAP

SNAP RING - rear, drive gear, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

23

G10383

BEARING CAP

CAP - bearing retainer, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

24

G10382

LOCK

- bearing cap, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hydraulic pump drive- before S/N 8191147 Hex, 5/16"-18 x 3/4", G5, Full Thd, Serial Range: -8191147

3шт.

26

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Hydraulic pump drive- before S/N 8191147 5/16", Serial Range: -8191147

3шт.

27

G10407

GASKET

- drive housing, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

28

G17226

GEAR WHEEL

GEAR - hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.

29

G13816

OIL SEAL

OIL SEAL - drive gear, hydraulic pump drive- before s/n 8191147, Serial Range: -8191147

1шт.
