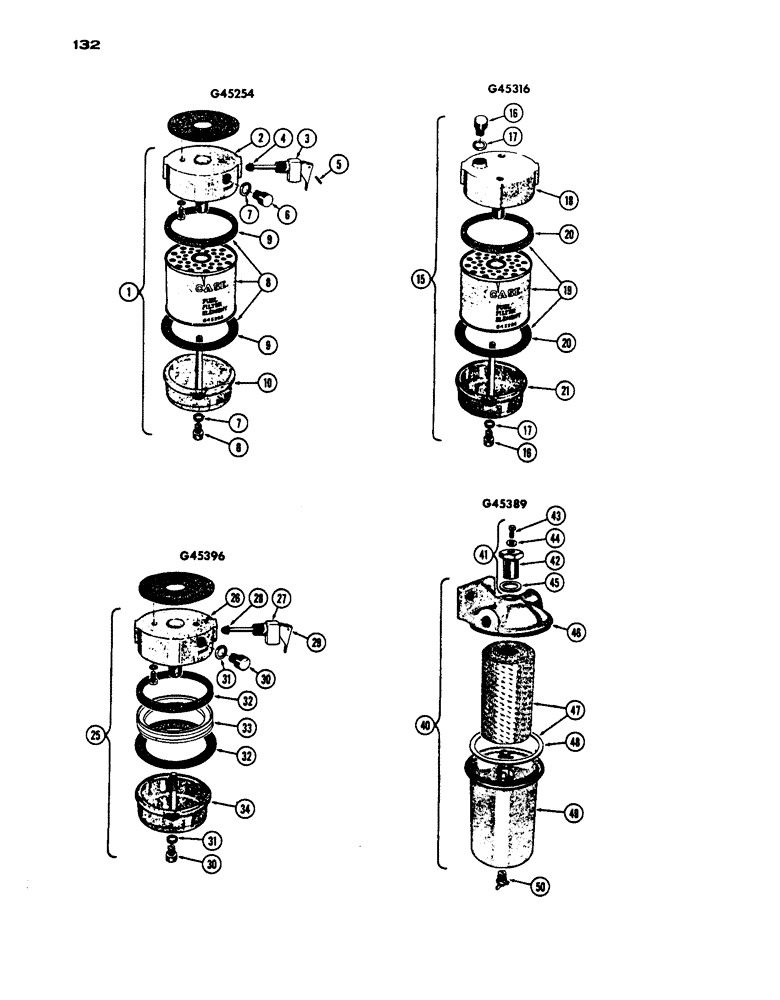

Запчасти Case IH 530 (132) - FILTER PARTS, PR TO 8262800, 430 MODEL BEFORE S/N 8217374; 530 MODEL BEFORE S/N 8212357, 188 DSL ENG (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G45254
SET OF PARTS
FILTER ASSY. - (Standard) (incl. ref. 2 - 10)
1шт.
2
NSS
NOT SOLD SEPARAT
HEAD
1шт.
3
G45390
VALVE - shut-off (incl. ref. 4 & 5)
1шт.
4
G46898
SEAL - rubber, valve plunger
1шт.
5
138-6
LOCK PIN,1/16" x 1/2", Slotted
PIN, , shut-off lever 1/16" x 1/2", Slotted
1шт.
6
G49080
PLUG
SCREW - bleeder & drain
2шт.
7
G46866
GASKET
- bleeder & drain screw
2шт.
8
A35668
FILTER
ELEMENT KIT - filter (incl. ref. 9)
1шт.
9
G46895
GASKET
- filter element
2шт.
10
G45389
BOWL
ASSY. fuel
1шт.
15
G45316
FILTER ASSY. final (w/First Stage Att.) (incl. ref. 16 - 21)
1шт.
16
G49080
PLUG
SCREW - bleeder & drain
2шт.
17
G46886
O-RING
GASKET - bleeder & drain screw
2шт.
18
NSS
NOT SOLD SEPARAT
HEAD
1шт.
19
A35668
FILTER
ELEMENT KIT - filter (incl. ref. 20)
1шт.
20
G46895
GASKET
- filter element
2шт.
21
G45389
BOWL
ASSY. - fuel
1шт.
25
G45396
BOWL ASSY. - fuel (w/First Stage Att.) (incl. ref. 26 - 34)
1шт.
26
NSS
NOT SOLD SEPARAT
HEAD
1шт.
27
G45390
VALVE ASSY. - shut-off (incl. ref. 28 & 29)
1шт.
28
G46898
SEAL - rubber, valve plunger
1шт.
29
138-6
LOCK PIN,1/16" x 1/2", Slotted
PIN, 1/16" x 1/2", Slotted
1шт.
30
G49080
PLUG
SCREW - bleeder & drain
2шт.
31
F46886
GASKET - bleeder & drain screw
2шт.
32
G46895
GASKET
- bowl & head
2шт.
33
G46358
ADAPTER -, Serial Range: bowl-head
1шт.
34
G45404
BOWL
ASSY. - fuel
1шт.
40
G45359
FILTER ASSY. - first stage (incl. ref. 41 - 50)
1шт.
41
4773AA
NUT ASSY. - cover clamp (incl. ref. 42 - 45)
1шт.
42
NSS
NOT SOLD SEPARAT
NUT - (Order 4773AA)
1шт.
43
O10342AB
VALVE - bleeder
1шт.
44
O10343AB
X
GASKET - bleeder valve
1шт.
45
O10344AB
X
GASKET - clamp nut
1шт.
46
NSS
NOT SOLD SEPARAT
COVER
1шт.
47
A21141
FILTER, ELEMENT
ELEMENT KIT - filter (incl. ref. 48)
1шт.
48
O10345AB
X
GASKET - cover
1шт.
49
NSS
NOT SOLD SEPARAT
BODY
1шт.
50
VT2784
X
DRAIN COCK
1шт.
Выбрано товаров: 38
