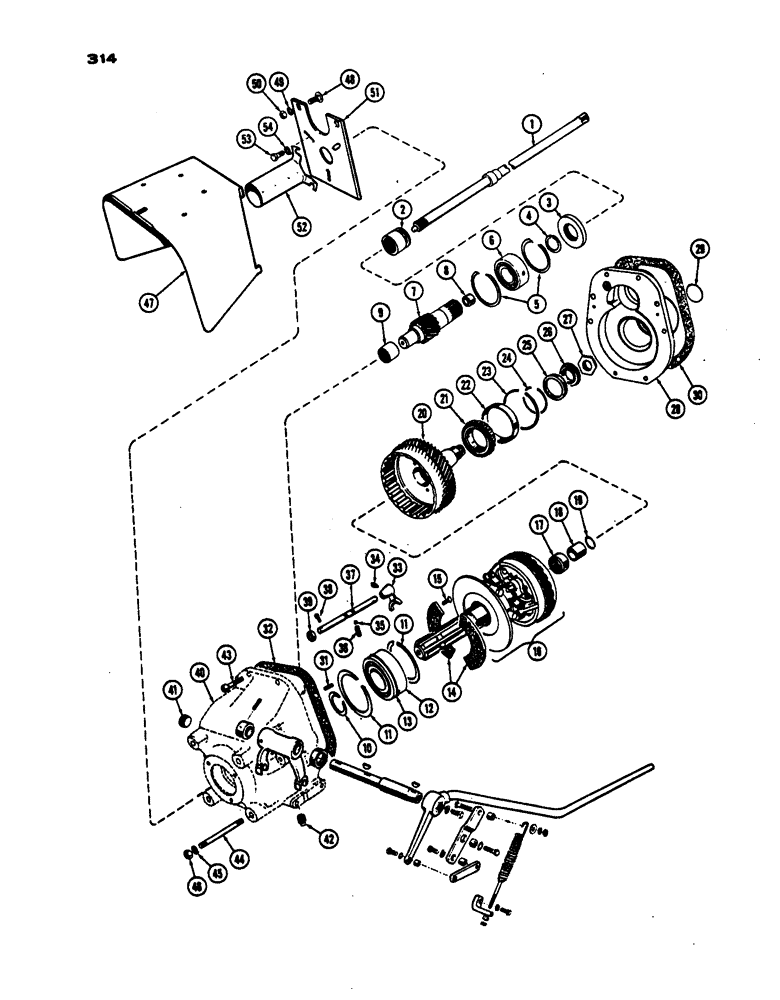

Запчасти Case IH 530 (314) - INDEPENDENT P.T.O., PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G14278

SHAFT - main drive (42-5/8" long)

1шт.

2

G16777

COLLAR - main shaft

1шт.

3

G13814

OIL SEAL

- drum housing

1шт.

4

A21619

CIRCLIP

SNAP RING -, Serial Range: bearing-shaft

1шт.

5

O934CK

X

SNAP RING - bearing to input gear

2шт.

6

G13412

BEARING - front, input gear (ND #5207W)

1шт.

7

G14083

GEAR - input, (14T) includes ref. 8)

1шт.

8

G46142

BUSHING - input gear

1шт.

9

G10420

NEEDLE BEARING

BEARING - needle, input gear (Torrington #B1616)

1шт.

10

A21619

CIRCLIP

SNAP RING - bearing to driven shaft

1шт.

11

O8432AB

X

SNAP RING -, Serial Range: bearing-drum

2шт.

12

G13611

BALL BEARING

BEARING - rear, driven shaft (incl. ref. 13)

1шт.

13

G46844

O-RING,2.628" ID

"O" RING - rear bearing

1шт.

14

G14450

KIT

LINING KIT - clutch brake

1шт.

15

187-1010

SCREW - #10-32 x 1/2" self-tapping

6шт.

16

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - (See following Figure for breakdown)

1шт.

17

F7232

BEARING

- frt. driven shaft (Torrington #BH1812)

1шт.

18

G15212

RACE

- brg. (Torrington #IR1416)

1шт.

19

G46173

RING, SNAP

SNAP RING - bearing race

1шт.

20

G16855

GEAR AND DRUM PTO - clutch (51T)

1шт.

21

G15211

ROLLER BEARING

CONE - rear brg. clch. drum (Timken #368A)

1шт.

22

O10794AB

X

CUP - rear brg. clch. drum (Timken #362A)

1шт.

23

G46143

RING

SNAP RING - rear bearing

1шт.

24

G46701

RING, SNAP

SNAP RING - front bearing

1шт.

25

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - frt. brg. clch. drum (Timken #LM67010)

1шт.

26

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - frt. brg. clch. drum (Timken #LM 67048)

1шт.

27

G49010

LOCK NUT

- adjusting, clch, drum

1шт.

28

G14276

HOUSING - clch. drum (incl. 22, 23, 24 and 25)

1шт.

29

A22394

PLUG

- expansion (2-1/2" O.D.)

1шт.

30

G10447

GASKET

- drum, Serial Range: hsg.-transmission

1шт.

31

G16764

PIN - dowel, clch. hsg.

2шт.

32

G46815

GASKET

- rear hsg. to clch. hsg.

1шт.

33

G4522

FORK - throwout shift

1шт.

34

VT2013

X

SCREW - lock, shift fork

1шт.

35

211-11

BALL,3/8" Dia

- detent, throwout rail

1шт.

36

G47039

SPRING

- detent

1шт.

37

G16763

SHAFT - throwout fork

1шт.

38

83-48

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, 1/4" x 1/2" N.C. socket hd.

1шт.

39

G13815

OIL SEAL

OIL SEAL - throwout shaft

1шт.

40

A36886

HOUSING - rear

1шт.

41

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex. sckt. hd.

1шт.

42

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

43

165-102

CAPSCREW,Prev Torque, 3/8" - 16 x 1 3/4"

SCREW - self-locking, 3/8" x 1-3/4" N.C. socket hd.

2шт.

44

G49501

STUD

- hsg. 3/8" x 5-3/4"

4шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex

4шт.

47

O8303AB

X

GUARD - universal joint

1шт.

48

11-612

BOLT

- 3/8" rd. hd. sq. neck

2шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

51

G16775

PLATE - guard mounting

1шт.

52

VT5012

X

GUARD PTO - shaft

1шт.

53

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

54

92-6

LOCK WASHER,3/8"

3шт.
