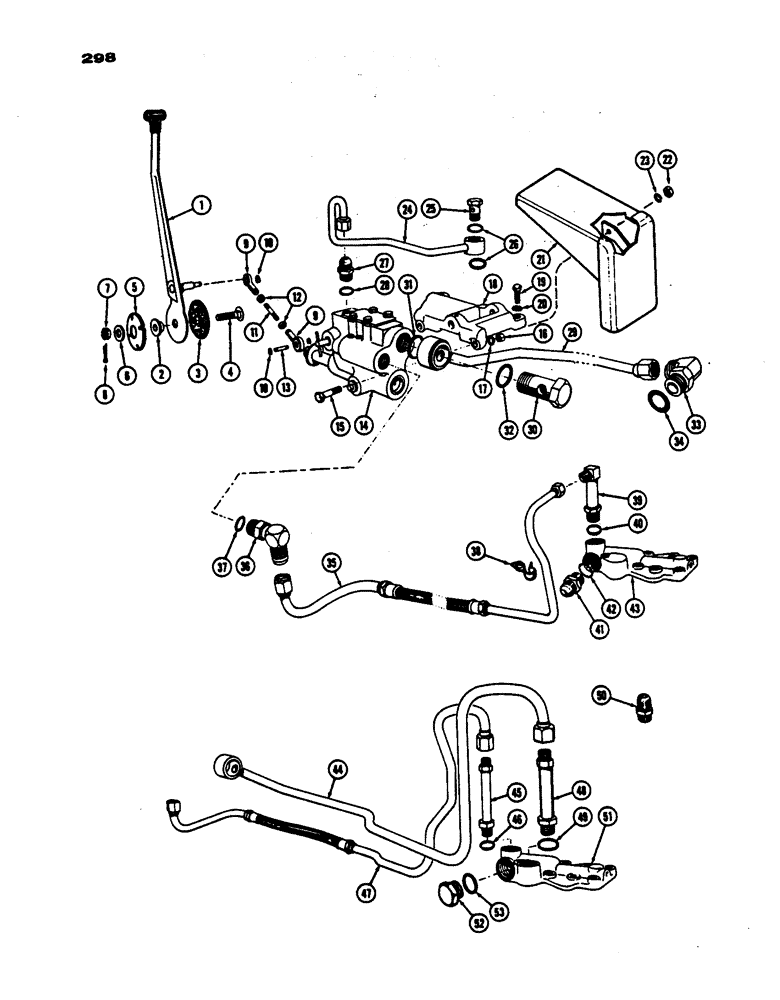

Запчасти Case IH 530 (298) - VALVE AND CONTROLS, UTILITY, DRAFT-O-MATIC TRACTOR, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

A35701

LEVER - hand (incl. ref. 2)

1шт.

2

G15947

BUSHING

1шт.

3

G10786

DISC

- friction

1шт.

4

G49100

BOLT - hand lever

1шт.

5

G49412

WASHER

- spring

1шт.

6

195-533

WASHER,1/2", SAE

(zinc plated) 1/2", SAE

1шт.

7

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N.C. (7/16" thick)

1шт.

8

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

9

A35134

BEARING

EYE - adjusting, lever to valve rod

2шт.

10

O9637AB

X

"E" RING - adjusting eye pin

3шт.

11

A35135

ROD

- hand, Serial Range: lever-valve

1шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex

2шт.

13

A35137

PIN

- eye to valve spool

1шт.

14

A35685

VALVE

- control (For repairs see Figure 302)

1шт.

15

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N.C. hex hd.

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A35478

BRACKET

- valve mounting

1шт.

19

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex hd.

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A36515

GUARD

SHIELD - valve

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

A35507

TUBE - valve to rockshaft housing

1шт.

25

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

26

O3991CS

X

"O" RING -, Serial Range: tube-housing

2шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - 1/2" x 3/4"-16 thrd. (incl. Ref 28)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" tube

1шт.

29

A35490

TUBE

- return (w/std. clutch)

1шт.

30

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

31

O9018AB

X

"O" RING - inner (1-1/4" O.D.)

1шт.

32

VT4593

X

"O" RING - outer (1-1/16" O.D.)

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- return tube (w/std. clutch) (Incl. ref. 34)

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

35

A35489

TUBE - pressure (w/std. clutch)

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- pressure tube to valve (incl. ref. 37)

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

38

A35142

CLAMP - pressure tube

1шт.

39

D23143

FITTING

ELBOW - pressure tube to cover (w/std. clutch and no remote controls) (incl. ref. 40)

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

41

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - pressure tube to cover (w/remote) (incl. ref. 42)

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

43

A35425

COVER ASSY

COVER - adapter (w/std. clutch)

1шт.

44

A35551

TUBE - return (w/Case-O-Matic)

1шт.

45

A35446

CONNECTOR - return tube to cover (Case-O-Matic tractor with no remote controls) (incl. ref. 46)

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

47

A35520

TUBE - pressure (w/Case-O-Matic)

1шт.

48

A35444

CONNECTOR - pressure tube to cover (Case-O-Matic with no remote controls) (incl. ref. 49)

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

50

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - return to cover (w/remote)

1шт.

51

A35443

RIVET

COVER - adapter (w/Case-O-Matic)

1шт.

52

86512512

PLUG,7/8" - 14 ORB

- 7/8"-14 thrd. (Incl. Ref. 53)

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.
