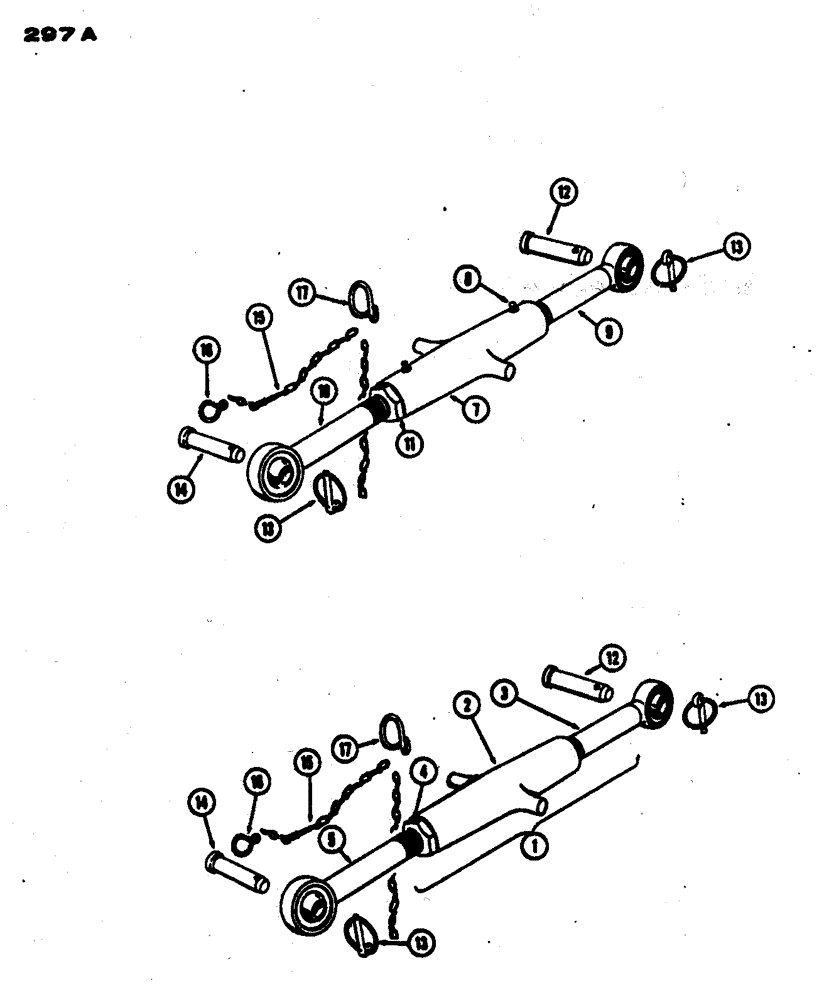

Запчасти Case IH 530 (297A) - THIRD POINT ADJUSTING LINK, AND WITH COARSE THREAD, DRAFT-O-MATIC TRACTOR, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

A36228

UPPER LINK

LINK ASSY. - adjusting (fine thread) (incl. ref. 2 - 5)

1шт.

2

A36223

TURNBUCKLE

TURNBBUCKLE - (fine thread)

1шт.

3

NLS

NO LONGER SERVICED

LINK - adjusting, front half

1шт.

4

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F. hex

1шт.

5

A36226

LINK

- adjusting, rear half

1шт.

7

VTA2930

TURNBUCKLE - (coarse thread) (incl. ref. 8)

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4" str drive, with course thread

2шт.

9

G14068

LINK - adjusting, front half (8" long w/coarse thrd.)

1шт.

9

A35792

LINK

- adjusting, front half (11-1/2" long w/coarse thrd.)

1шт.

10

G30583

LINK - adjusting, rear half (coarse thrd.)

1шт.

11

25-1418

NUT,Jam, 1 1/8"-7, G5

- jam, 1-1/8" N.C. hex, with course thread

1шт.

12

G16735

PIN

- adjusting link to tractor mast, with course thread

1шт.

13

SV2433

X

KLICK PIN - adjusting link to implement mast, with course thread

2шт.

14

V14209

X

PIN - adjusting link to implement mast, with course thread

1шт.

15

V14098

CHAIN - mast pin, with course thread

2шт.

16

V14800

"S" HOOK - chain to pin, with course thread

1шт.

17

V14801

SET OF BELTS

"S" HOOK - chain to link, with course thread

1шт.
