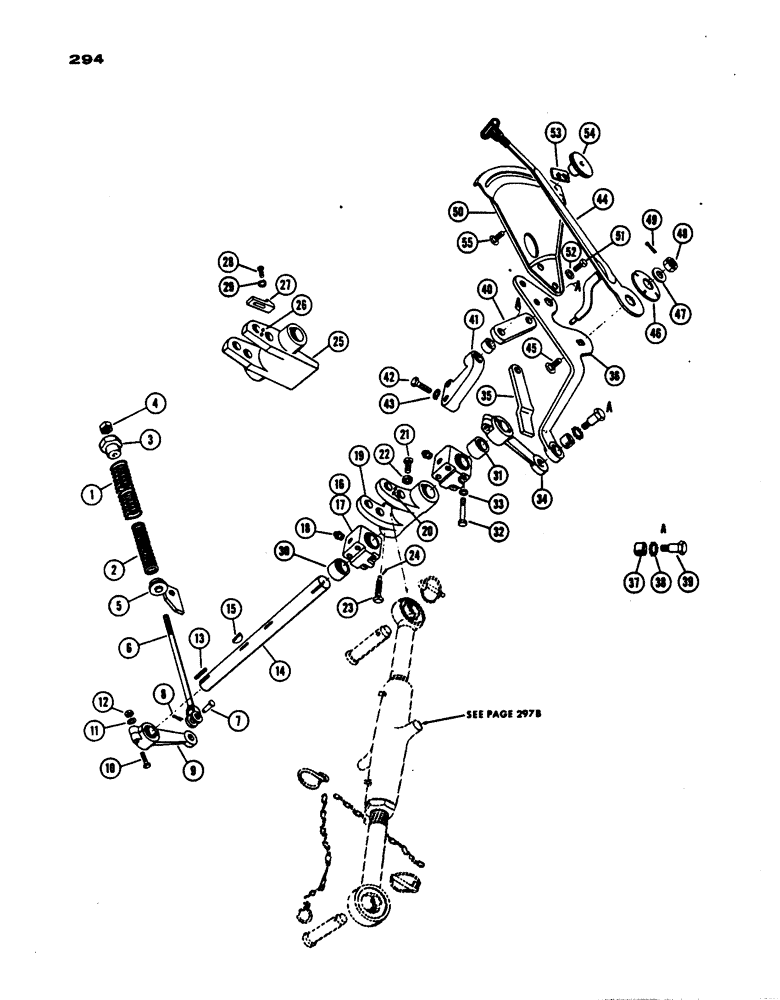

Запчасти Case IH 530 (294) - SENSING LINKAGE, UTILITY, DRAFT-O-MATIC TRACTOR, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G48519

SPRING

- outer, sensing

1шт.

2

A35121

VALVE SPRING

SPRING - inner, sensing

1шт.

3

V16610

X

NUT - spring adjusting

1шт.

4

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

1шт.

5

A35496

SUPPORT

EYE - centering, sensing spring

1шт.

6

A35495

YOKE

ROD - adjusting spring (includes yoke)

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

A35795

ARM - sensing, L.H.

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(RH and LH) Hex, 3/8"-16 x 2", G5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 1/2" N.C

2шт.

13

A36432

KEY - sensing, Serial Range: arm-shaft

2шт.

14

A35493

SHAFT

- pivot

1шт.

15

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Mast to shaft #15, 1/4" x 1"

2шт.

16

A36889

BRACKET - pivot shaft (includes ref. 17)

2шт.

17

A35117

BUSHING - pivot shaft

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. (Lincoln #5000)

2шт.

19

G4527

BRACKET - mast, adjusting link (See ref. 25)

1шт.

20

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21

15620

ROD,Hex, 3/8" x 1 1/4"

BOLT - stop, 3/8" x 1-1/4" N.C. hex hd.

1шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex hd.

1шт.

23

A35119

BOLT (SPREADER)

BOLT - lock-out, mast bracket (Use w/ref. 19)

1шт.

24

132-57

X

ROLL PIN - 1/8" x 3/4"

1шт.

25

A36992

BRACKET

- mast, adjusting link (See ref. 19) (incl. ref. 26)

1шт.

26

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

27

A36766

STOP

- mast

1шт.

28

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" x 7/8" N.C. hex hd. (pltd.)

1шт.

29

195-18

WASHER,1/4"

- plain SAE 1/4"

1шт.

30

A35495

YOKE

SPACER - L.H., pivot shaft (1-19/32" long)

1шт.

31

G49638

SPACER - R.H., pivot shaft (1-3/16" long)

1шт.

32

15-640

SCREW,Hex, 3/8" - 16 x 2 1/2"

BOLT - pivot bracket, 3/8" x 2-1/2" N.C. hex hd.

8шт.

33

92-6

LOCK WASHER,3/8"

8шт.

34

A35794

ARM - sensing, R.H.

1шт.

35

A35498

STOP - quadrant arm

1шт.

36

A35499

ARM - lower, quadrant (includes ref. 44)

1шт.

37

A35112

BUSHING

- pivot

3шт.

38

G49413

WASHER

- wave, pivot bolt

3шт.

39

G49098

STEP BOLT

BOLT - shoulder, pivot

3шт.

40

A35502

LINK - quadrant arm to lift arm

1шт.

41

A35491

BRACKET

- lift arm (includes ref. 44)

1шт.

42

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

A35701

LEVER - hand (includes bushing)

1шт.

45

G49100

BOLT - hand lever

1шт.

46

G49412

WASHER

- spring

1шт.

47

195-533

WASHER,1/2", SAE

1шт.

48

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N.C. hex (shear nut 7/16" thick)

1шт.

49

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

50

A35123

QUADRANT

1шт.

51

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

53

G15950

STOP

- quadrant

1шт.

54

G15951

NUT

- quadrant stop

2шт.

55

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.
