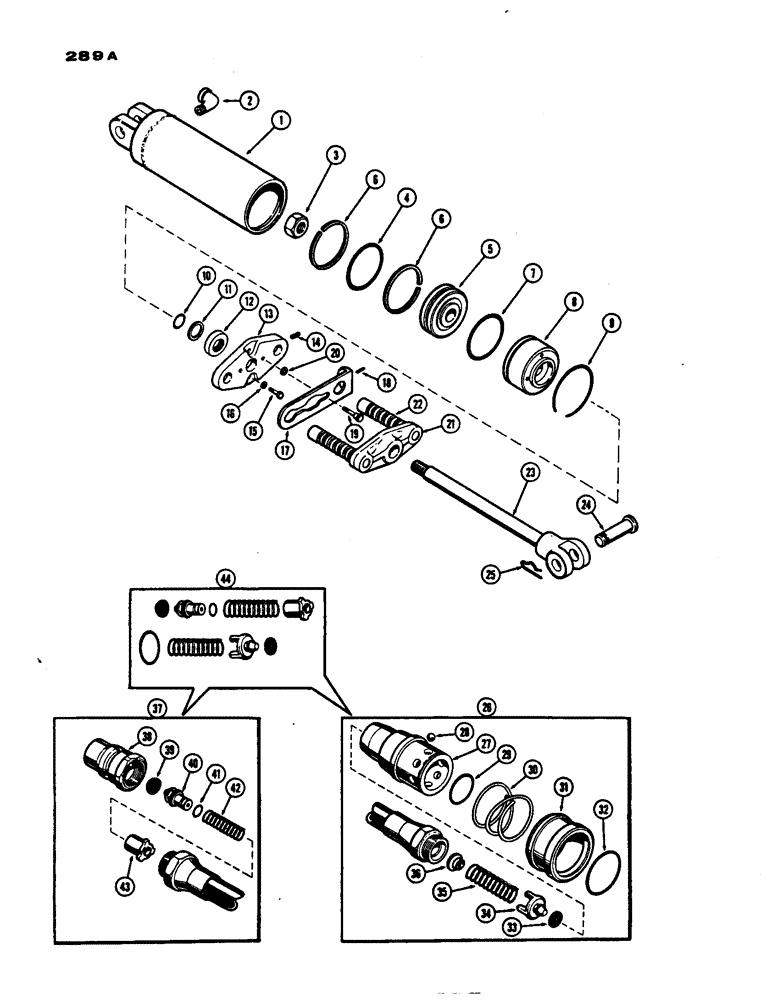

Запчасти Case IH 530 (289A) - B3785AA REMOTE CYLINDER PARTS, BREAK AWAY COUPLING PARTS, PRIOR TO S/N 8262800 (06) - POWER TRAIN

B3785AA

CYLINDER ASSY. - remote, complete (Order A23557 when stock is exhausted) (incl. ref. 1 - 5)

1шт.

A23557

CYLINDER ASSY. - remote, complete (incl. ref. 1 - 5)

1шт.

1

4246AA

CYLINDER & HEAD

1шт.

2

221-1561

ELBOW UNION

ELBOW - street, reducing 1/2 x 3/8"

2шт.

3

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, 7/8" N.F.

1шт.

4

O8342AB

X

"O" RING - piston

1шт.

5

6243A

PISTON (For B3785AA)

1шт.

5

A23560

PISTON (for A23557)

1шт.

6

A23562

OIL SEAL

RING - back-up, piston (For A23557) (incl. ref. 7 - 23)

2шт.

7

O8347AB

X

"O" RING - inner head (For B3785AA)

1шт.

7

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O" RING - inner head (for A23557)

1шт.

8

6187A

HEAD - inner cyl. tube (For B3785AA)

1шт.

8

A23561

HEAD - inner, cyl. tube (for A23557)

1шт.

9

O9303AB

X

SNAP RING - inner head

1шт.

10

O8346AB

X

"O" RING - piston rod

1шт.

11

O8345AB

X

GASKET - piston rod (for B3785AA)

1шт.

11

A23553

RING

- back-up (for A23557)

1шт.

Part of A23557 seal kit P/N A40758

1шт.

12

O3869AB

X

OIL SEAL - piston rod (for B3785AA)

1шт.

12

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

- piston rod (for A23557)

1шт.

Part of A23557 seal kit P/N A40758

1шт.

13

O8354AB

GUIDE - limit stop pin

1шт.

14

O8602AB

X

SPRING - latch, limit stop

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex hd.

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

3859AA

X

LATCH ASSY. - limit stop (incl. ref. 18)

1шт.

18

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

19

O8601AB

X

SCREW - stop latch

1шт.

20

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

21

3756AA

STOP ASSY. - limit (incl. ref. 22)

1шт.

22

O8357AB

PIN - limit stop

2шт.

23

4417AA

ROD ASSY. - piston

1шт.

24

O8361AB

X

PIN - yoke

2шт.

25

VC1419

X

PIN - hair pin cotter

2шт.

A24414

KIT

SEAL KIT - B3785AA (includes items marked #)

1шт.

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

KIT - A23557, Includes: Ref. 4, 6, 7, 11 and 12

1шт.

26

G30463

SOCKET ASSY. break-away coupling (incl. ref. 27 - 36)

2шт.

27

O8371AB

BODY, break-away coupling parts

1шт.

28

211-7

BALL,1/4" Dia

- locking, break-away coupling parts 1/4" Dia

8шт.

29

O8377AB

X

"O" RING - body, break-away coupling parts

1шт.

30

O8379AB

X

SPRING - ball sleeve, break-away coupling parts

1шт.

31

O8378AB

X

SLEEVE - ball retainer, break-away coupling parts

1шт.

32

8380AB

"O" RING - sleeve, break-away coupling parts

1шт.

33

A33964

SEAL

- piston, break-away coupling parts

1шт.

34

6119A

X

PISTON, break-away coupling parts

1шт.

35

G48506

SPRING

- piston, break-away coupling parts

1шт.

36

G16517

SPACER

- flow control, break-away coupling parts

1шт.

37

4025AA

X

PLUG ASSY. - break-away coupling parts (incl. ref. 38 - 42)

2шт.

38

O8381AB

X

BODY, break-away coupling parts

1шт.

39

A33964

SEAL

break-away coupling parts

1шт.

40

O8859AB

X

PISTON, break-away coupling parts

1шт.

41

O8386AB

X

"O" RING - piston, break-away coupling parts

1шт.

42

O8375AB

X

SPRING - piston, break-away coupling parts

1шт.

43

51200858

SLEEVE

- piston, break-away coupling parts

1шт.

44

A40459

KIT

- coupling repair, break-away coupling parts

1шт.
