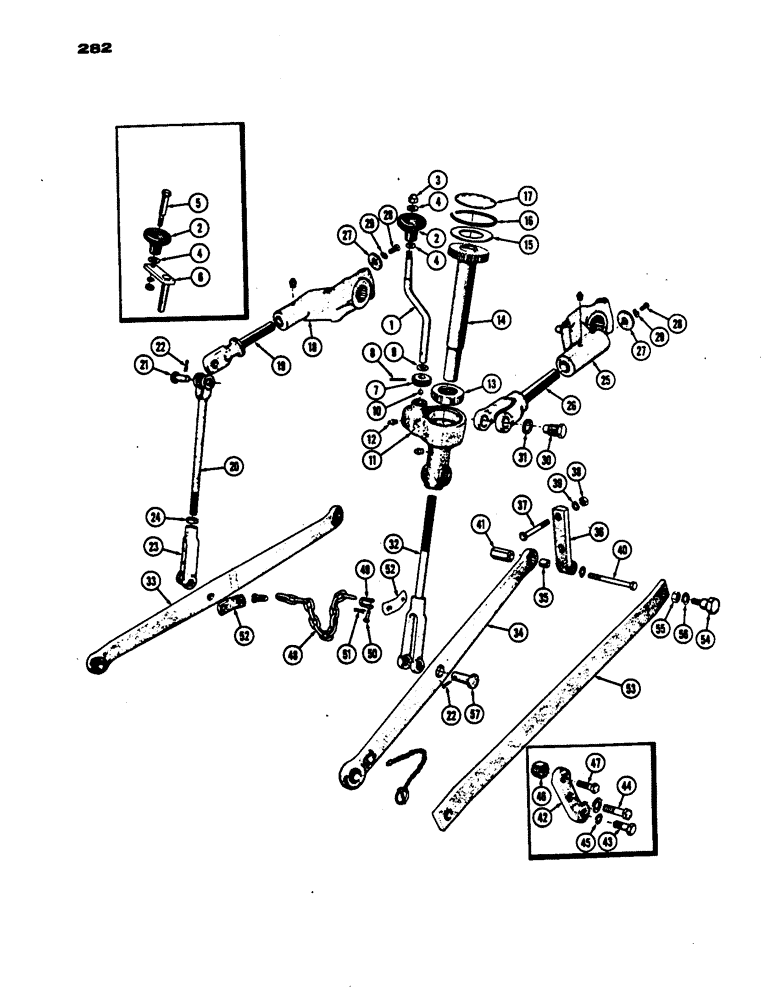

Запчасти Case IH 530 (282) - SWINGING DRAFT ARMS, BEFORE S/N 8211729, EAGLE HITCH TRACTOR, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G10463

CRANK - adjusting (Gen. Purpose)

1шт.

2

O4995AB

X

KNOB - adjusting screw

1шт.

3

129-520

NUT,Crown, 3/8"-16

- acorn, 3/8" N.C. (Gen. Purpose)

1шт.

4

G10488

WASHER - thrust

1шт.

5

VT2964

BOLT - knob (Utility)

1шт.

6

G13119

CRANK - adjusting (Utility)

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

7

G10464

GEAR - adjusting

1шт.

8

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

9

O5087A

X

SHIM - crank gear

1шт.

10

211-7

BALL,1/4" Dia

- crank thrust 1/4" Dia

1шт.

11

G1044

HOUSING - adjusting gear

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" P.T. str.

2шт.

13

G10489

THRUST BEARING

BEARING - thrust, adj. screw (Nice #5136)

1шт.

14

G13390

TUBE

GEAR - adjusting screw

1шт.

15

O265BL

WASHER - adjusting screw gear

1шт.

16

O8582AB

X

SNAP RING - gear housing

1шт.

17

A22394

PLUG

- gear housing (2-1/2" dia. expansion)

1шт.

18

G16749

ARM - lift, L.H.

1шт.

19

G16755

END - swivel, L.H. lift arm

1шт.

20

G10469

YOKE

LINK - lift, L.H. (Utility)

1шт.

20

G46141

LINK - L.H. (Gen. Purpose)

1шт.

21

A35113

PIN

- yoke, lift link (L.H. upper)

1шт.

22

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

3шт.

23

213-8

CLEVIS,3/4"-16

YOKE - L.H. lift link

1шт.

24

25-1512

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.F. hex

1шт.

25

G16748

ARM - lift, R.H.

1шт.

26

G16754

END - swivel, R.H. lift arm

1шт.

27

G16747

WASHER - retainer, swivel end

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

O9214AB

X

SCREW - pivot, R.H. lift link

2шт.

31

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

2шт.

32

G14062

LINK

- lift, R.H. (Utility)

1шт.

32

G14064

ROD

LINK - lift, R.H. (General Purpose)

1шт.

33

G45353

ARM - draft, L.H.

1шт.

34

G45352

ARM - draft, R.H.

1шт.

35

G16734

BUSHING - pivot, draft arm

2шт.

36

G16911

BRACKET

- pivot, draft arm

4шт.

37

14-10128

BOLT,Hex, 5/8" - 18 x 8", Gr 5

- 5/8 x 8" N.F. hex hd.

8шт.

38

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

8шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

40

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

BOLT - pivot, 5/8 x 3-3/4" N.F. hex (Gen. Purpose)

2шт.

41

G16737

SPACER - draft arm (Gen. Purpose)

2шт.

42

G1236

BRACKET - inside, draft arm (Utility)

2шт.

43

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

44

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex hd.

2шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

46

G16912

SPACER - bracket, 1-13/16" long (Utility)

2шт.

47

G16738

BOLT - draft arm (Utility)

2шт.

48

VP582

CHAIN - sway

2шт.

49

G45127

SHACKLE - chain (incl. ref. 50 & 51)

4шт.

50

G46139

PIN

- chain shackle

1шт.

51

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

52

G16736

LINK - chain to draft arm or support

4шт.

53

G16757

BAR - stabilizer

2шт.

54

G16756

BOLT - shoulder, stabilizer bar

2шт.

55

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

56

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

57

O9213AB

X

PIN - yoke, lift link to draft arm

2шт.
