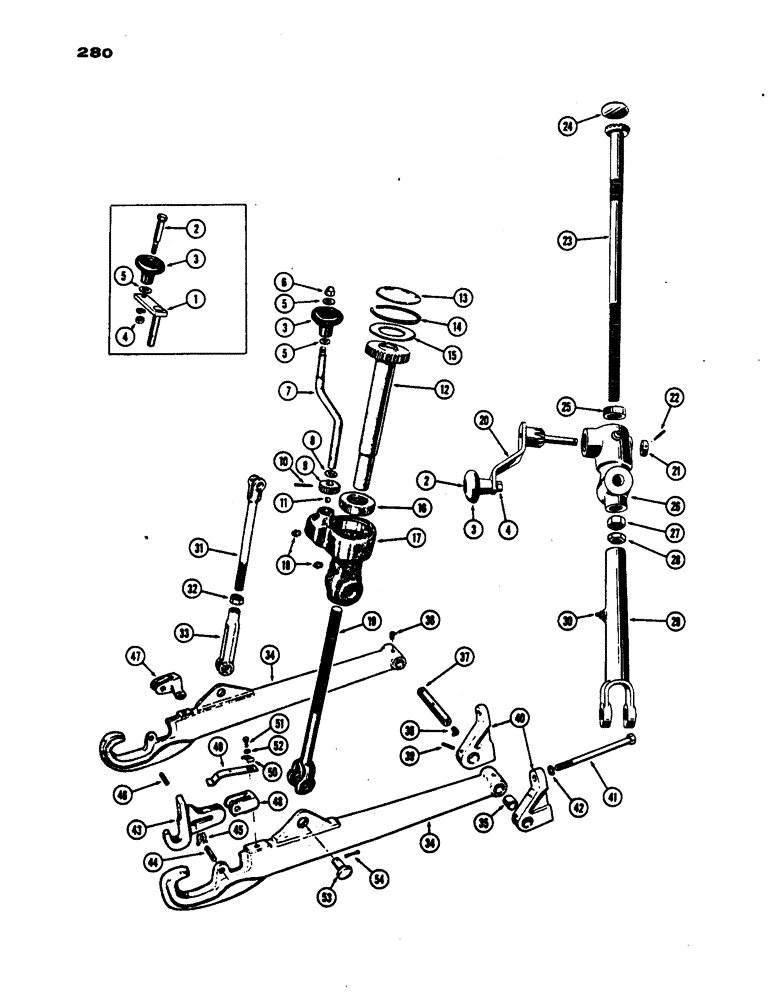

Запчасти Case IH 530 (280) - DRAFT ARMS AND LIFT LINKS, EAGLE HITCH TRACTOR, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G13119

CRANK - adjusting (Utility before SN 8191147)

1шт.

2

VT2964

BOLT - knob (Utility before SN 8191147)

1шт.

3

O4995AB

X

KNOB - adjusting crank

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

5

G10488

WASHER - thrust (Before SN 8191147)

2шт.

6

129-520

NUT,Crown, 3/8"-16

- acorn (Gen. Purpose before SN 8191147)

1шт.

7

G10463

CRANK - adjusting (Gen. Purpose before SN 8191147)

1шт.

8

O5087A

X

WASHER - gear thrust (Before SN 8191147)

1шт.

9

G10464

GEAR - adj. crank (Before SN 8191147)

1шт.

10

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Gear 5/32" x 7/8", Slotted

1шт.

11

211-7

BALL,1/4" Dia

- bearing (Before S/N 8191147) 1/4" Dia

1шт.

12

G13390

TUBE

GEAR - adjusting screw - (Before SN 8191147)

1шт.

13

41-40

PLUG,Exp, 2 1/2"

- housing, 2-1/2" (Before SN 8191147)

1шт.

14

O8582AB

X

SNAP RING - screw gear (Before SN 8191147)

1шт.

15

O265BL

WASHER - screw gear (Before SN 8191147)

1шт.

16

G10489

THRUST BEARING

BEARING - thrust (Before SN 8191147)

1шт.

17

G1044

HOUSING - adjusting gear (Before SN 8191147)

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

19

G10468

YOKE

LINK - lift, R.H. (Gen. Purpose before SN 8191147)

1шт.

19

G10936

YOKE

LINK - lift, L.H. (Utility before SN 8191147)

1шт.

A35014

LEVELING ASSY. (SN 8191147 and after) (incl. ref. 20 - 30)

1шт.

20

4212AA

X

PINION & CRANK - adjusting

1шт.

21

O9207AB

X

COLLAR - pinion shaft

1шт.

22

135-45

PIN - groove, 5/32" x 1" Type 1

1шт.

23

A35015

ADJUSTER,13 1/2" RH

SCREW & GEAR - leveling

1шт.

24

41-30

PLUG

- housing, 1-7/8"

1шт.

25

O9211AB

X

BEARING - leveling screw

1шт.

26

6313A

CASE - leveling gear

1шт.

27

O9212AB

X

NUT - brass, leveling screw

1шт.

28

25-1514

JAM NUT,Jam, 7/8"-14, G5

- jam, 7/8" N.F. hex

1шт.

29

A35195

YOKE

- leveling screw

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

31

G10469

YOKE

LINK - lift, L.H. (Gen. Purpose)

1шт.

31

G10937

X

LINK - lift, L.H. (Utility)

1шт.

32

25-1512

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.F. hex

1шт.

33

213-8

CLEVIS,3/4"-16

YOKE - L.H. lift link

1шт.

34

G10481

ARM - draft (w/dry clutch) (incl. ref. 35)

2шт.

34

G14314

ARM - draft (w/Case-O-Matic) (incl. ref. 35)

2шт.

35

G10487

BUSHING

- pivot

2шт.

36

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 45 deg.

2шт.

37

G16888

PIN

- pivot draft arm

2шт.

39

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

4шт.

40

G10475

BRACKET

- mounting, draft arm

4шт.

41

115-508

BOLT - 5/8" x 7" N.C. hex hd. (Gr. 8)

8шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

43

6167A

X

LATCH - hitch

2шт.

44

O9415AB

X

PIN - latch (See ref. 46)

2шт.

45

O9416AB

X

SNAP RING - latch pin (See ref. 46)

4шт.

46

138-175

LOCK PIN,3/8" x 1 5/8", Slotted

PIN, 3/8" x 1-5/8", slotted (Can replace ref. 44 & 45)

2шт.

47

6169A

X

LOCK - L.H. latch

1шт.

48

6168A

X

LOCK - R.H. latch

1шт.

49

O9228AB

X

SPRING - latch

2шт.

50

O9229AB

X

RETAINER - latch spring

2шт.

51

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

52

92-5

LOCK WASHER,5/16"

2шт.

53

A35113

PIN

- draft to arm link

3шт.

54

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32" x 1-1/4" (pltd.)

2шт.
