Запчасти Case IH 530 (268[A]) - KEYWAY DRIVE (06) - POWER TRAIN

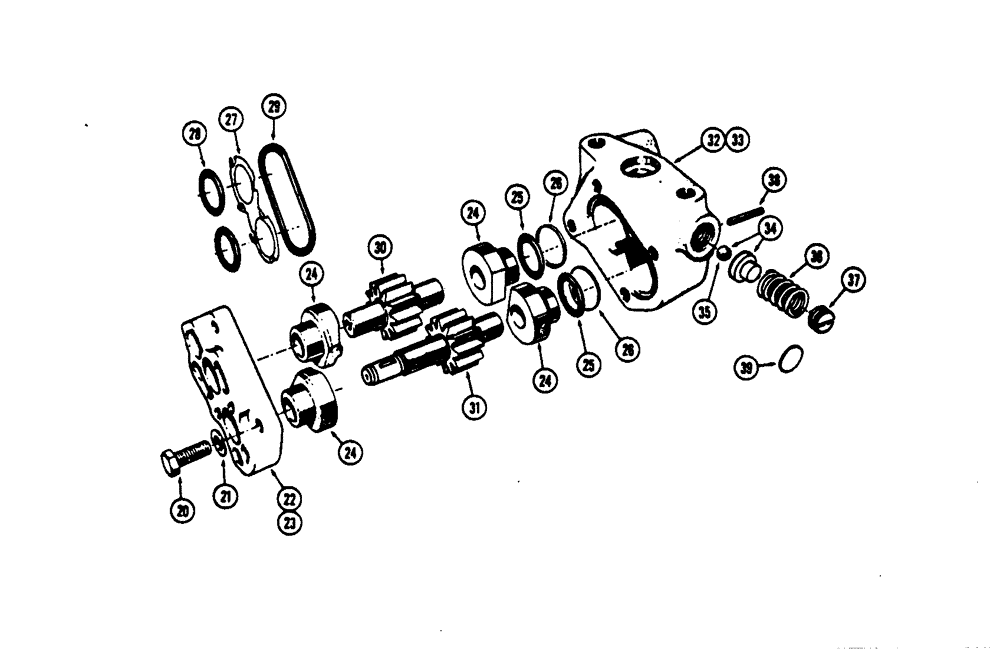

Схема запчастей Case IH 530 - (268[A]) - KEYWAY DRIVE (06) - POWER TRAIN
25
28
24
26
38
24
21
22
33
20
34
23
27
30
31
37
39
24
24
36
35
29
32
25
26

Артикул

Название

Примечание

Количество

A35081

PUMP

- w/dry clutch SN 8191147 and after (incl. ref. 20 - 37)

1шт.

G45460

PUMP

- w/Case-O-Matic (new style) (incl. ref. 20 - 37)

1шт.

New style pump has screw type plug retaining relief valve

1шт.

G45100

X

PUMP - w/Case-O-Matic (old style) Order G45460 (incl. ref. 20 - 37)

1шт.

Old style pump has roll pin retaining relief valve

1шт.

20

G49095

BOLT - cover

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

G4523

COVER - (new style)

1шт.

23

G4500

COVER - (old style)

1шт.

24

G49673

BEARING

- gear (new style)

4шт.

25

G46908

O-RING

"O" RING - bearing seal (new style)

2шт.

26

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

PLATE - back-up (new style)

2шт.

27

G46052

PLATE

- spring, bearing (old style)

1шт.

28

O8377AB

X

"O" RING - bearing seal (old style)

2шт.

29

G46055

SEAL

"O" RING - cover seal (old style)

1шт.

30

G46049

GEAR - driven

1шт.

31

G46223

GEAR

- drive

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - (Order A35081 w/dry clutch)

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - (Order 45460 w/Case-O Matic)

1шт.

34

A36058

X

RETAINER ASSY. - relief ball (incl. ref. 35)

1шт.

35

211-10

BALL

- relief (11/32" dia.)

1шт.

36

G48516

SPRING

- relief

1шт.

37

G49094

PLUG - relief valve (new style)

1шт.

38

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Relief valve (old style) (incl. ref. 39) 3/16" x 1 1/8", Slotted

1шт.

39

G46053

SHIM - relief valve (old style)

1шт.

Выбрано товаров: 25
