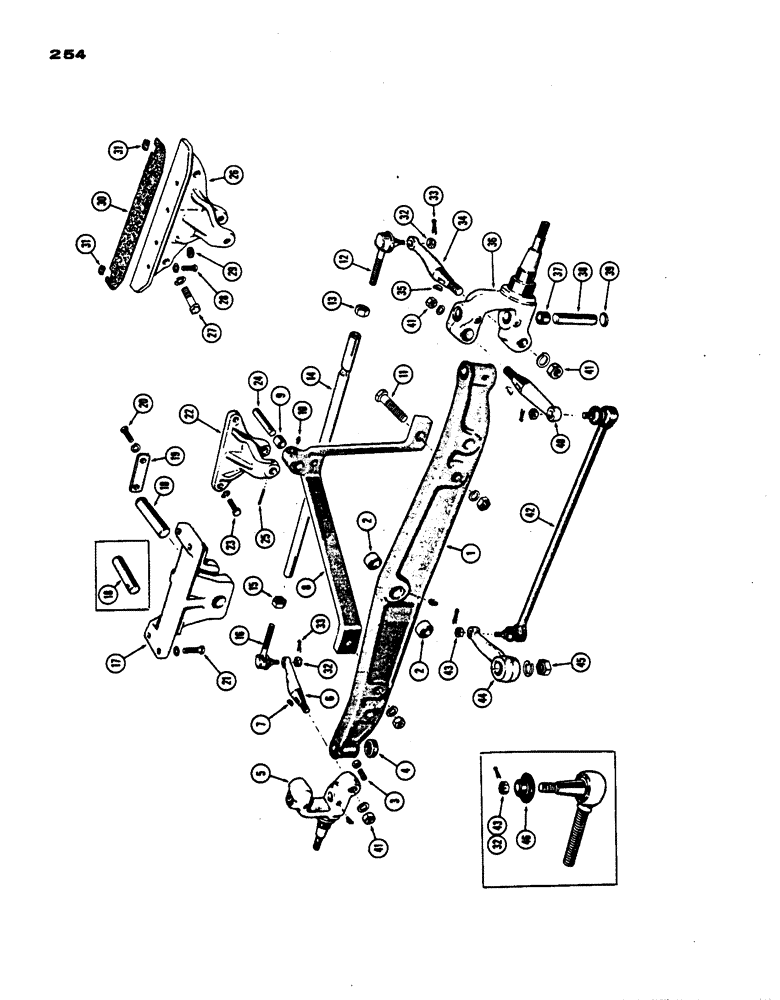

Запчасти Case IH 530 (254) - 430-530 HEAVY DUTY FRONT AXLE, UTILITY TRACTORS, PRIOR TO 8262800 (06) - POWER TRAIN

1

G13123

AXLE - front (includes bushings)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. (Lincoln #5000)

1шт.

2

VT3559

X

BUSHING - pivot

2шт.

3

81-614

SET

SCREW - set, 3/8" x 7/8" N.C. headless slotted cup pt.

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

2шт.

4

VT3984

X

BEARING - thrust, wheel spindle (Timken #T-101)

2шт.

5

G14334

SPINDLE

- R.H. wheel (includes bushings)

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" 45 deg. (Lincoln #5200)

1шт.

6

G10886

ARM

- tie rod to R.H. spindle

1шт.

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

7

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - steering arm to spindle

1шт.

8

G13127

RADIUS ROD - (includes bushings) gas

1шт.

8

G30361

RADIUS ROD - (includes bushings) diesel

1шт.

9

V20457

X

BUSHINGS - pivot

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. (Lincoln #5000)

1шт.

11

16-1664

X

BOLT - 1" x 4" N.F. hex hd.

2шт.

12

G45369

END ASSY.

END - tie rod, L.H.

1шт.

13

G49085

JAM NUT

- locking, L.H. tie rod end

1шт.

14

G30494

TIE-ROD

TUBE - tie rod (includes ref. 13 and 15)

1шт.

15

G49084

JAM NUT

- locking, R.H. tie rod end

1шт.

16

G45368

END ASSY.

END - tie rod, R.H.

1шт.

17

G30547

SUPPORT - front pivot (includes ref. 18, 19, and 20)

1шт.

18

G15858

PIN - pivot, axle (Tractor #6167734 and after) (Replaces G15856)

1шт.

18

G10888

PIN

- pivot, axle (Before tractor #6167734)

1шт.

19

G15857

STRAP - lock, pivot pin (Tractor #6167734 and after)

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

22

G1715

BRACKET - rear pivot (w/dry clutch)

1шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

24

V14619

PIN - pivot, radius rod rear

1шт.

25

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Rear pivot pin 1/4" x 2", Slotted

1шт.

26

A35078

BRACKET - rear pivot (gas engine w/Case-O-Matic)

1шт.

26

A35079

BRACKET - rear pivot (diesel engine w/Case-O-Matic)

1шт.

27

15-1036

X

BOLT - 5/8" x 2-1/4" N.C. hex hd.

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex hd.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

29

G46843

X

WASHER - sealing (5/16")

2шт.

30

G46811

GASKET

- rear pivot support (gas engine w/Case-O-Matic)

1шт.

30

G46877

X

GASKET - rear pivot support (diesel eng. w/Case-O-Matic

1шт.

31

A11604

OIL PAN GASKET SET

- rear pivot support (w/Case-O-Matic)

2шт.

32

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod ends

2шт.

33

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

34

G10886

ARM

- tie rod to L.H. spindle

1шт.

35

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - arm to spindle

2шт.

36

G14335

SPINDLE

- L.H. wheel (includes bearings)

1шт.

37

5332A

X

BUSHING - king pin, wheel spindle

4шт.

38

A11414

AXLE PIN,25.02mm OD x 152.4mm L

KING PIN - wheel spindle

2шт.

39

VT5156

PLUG - king pin, wheel spindle

4шт.

40

A36107

ARM

- drag link to L.H. spindle

1шт.

41

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

42

G45372

BAR

DRAG LINK - center arm to L.H. spindle (Replaces G45327)

1шт.

43

25-139

SLOTTED NUT,9/16"-18, G5

NUT - drag link to arm

2шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

44

G10884

ARM - center steering -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

45

25-1116

NUT,1"-14, G5

- 1" N.F.

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

46

G46043

COVER

SEAL - dust, drag link and tie rod ends

4шт.
