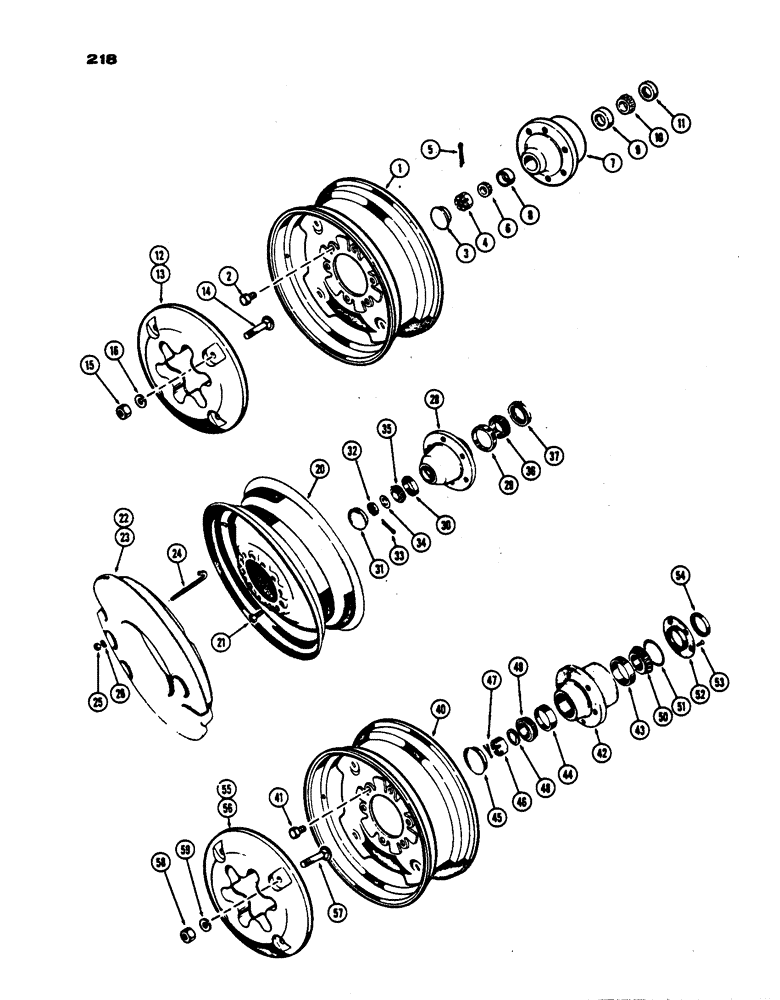

Запчасти Case IH 530 (218) - FRONT WHEELS, GENERAL PURPOSE AND UTILITY WHEELS, HUBS AND WEIGHTS, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G10660

X

WHEEL - General Purpose (5.50 x 16 tire)

2шт.

1

G10661

WHEEL

- General Purpose (5.00 x 16 tire)

2шт.

2

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

3

TB13280

X

CAP - hub

2шт.

4

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - spindle, 3/4" N.F. slotted

2шт.

5

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing (Timken #LM-11949)

2шт.

7

G13065

X

HUB ASSY. - wheel, Includes: Ref. 8 & 9

2шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing (Timken #LM-11910)

1шт.

9

G57451

BEARING, CUP

CUP - inner bearing (Timken #LM-48510)

1шт.

10

G57452

ROLLER BEARING

CONE - inner bearing (Timken #LM-8548)

2шт.

11

G13053

OIL SEAL

OIL SEAL - inner

2шт.

12

G12050M

WEIGHT SET - front wheel, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

WEIGHT - (Casting G1082) Order G12050M

2шт.

14

11-848

BOLT - 1/2" x 3" rd. hd. sq. neck

8шт.

15

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

8шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

20

VTA1303

X

WHEEL - Utility (6.00 x 16 tire), hubs & weights

2шт.

20

G45291

X

WHEEL - Utility (7.50 x 16 tire), hubs & weights

2шт.

21

O4557AB

BOLT - wheel to hub, utility hubs & weights

12шт.

22

G12528M

WEIGHT SET - front wheel, Includes: Ref. 23 - 26, utility hubs & weights

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - (Casting VT624) Order G12528M, utility wheels, hubs

2шт.

24

G15557

BOLT (SPREADER)

BOLT - hook, weight to wheel, utility hubs

8шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, utility wheels, hubs & weights

8шт.

26

92-6

LOCK WASHER,3/8"

utility wheels, hubs & weights 3/8"

8шт.

28

G14339

HUB CAP

HUB ASSY., Includes: Ref. 29 & 30, utility wheels, weights

2шт.

29

O5428N

X

CUP - inner bearing (Timken #13621), utility wheels, hubs & weights

1шт.

30

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing (Timken #13685), utility wheels, hubs & weights

1шт.

31

G57436

CYLINDER END CAP

CAP - hub, utility wheels, weights

2шт.

32

VT4941

X

NUT - spindle, 1" N.F. hex slotted, utility wheels, hubs & weights

2шт.

33

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Utility wheels, hubs & weights 1/8" x 1 1/2"

2шт.

34

O2887AB1

X

WASHER - spindle nut, utility wheels, hubs & weights

2шт.

35

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing (Timken #LM-67048), utility wheels, hubs & weights

2шт.

36

O5429N

X

CONE - inner bearing (Timken #13685), utility wheels, hubs & weights

2шт.

37

G13800

SEAL

- inner, utility wheels, hubs & weights (incl. ref. 40)

2шт.

40

A36017

WHEEL

- for use with Loader (7.50 x 16 tire), hubs

2шт.

41

O4557AB

BOLT - wheel to hub, for use with loader

12шт.

42

G14042

X

HUB ASSY., Includes: Ref. 43 & 44, wheel for use with loader

2шт.

43

VT2100

X

CUP - inner bearing (Timken #25520), wheels & hubs for use with loader

1шт.

44

O9149AB

X

CUP - outer bearing (Timken #25820), wheels & hubs for use with loader

1шт.

45

VT4450

X

CAP - wheels & hubs for use with loader

2шт.

46

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex castle (thick), wheels & hubs for use with loader

2шт.

47

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheels & hubs for use with loader 3/16" x 1 3/4"

2шт.

48

O4368AB

X

WASHER - spindle nut, wheels & hubs for use with loader

2шт.

49

VT4831

X

CONE - outer bearing (Timken #25877), wheels & hubs for use with loader

2шт.

50

VT2101

X

CONE - inner bearing (Timken #25580), wheels & hubs for use with loader

2шт.

51

O10021AB

X

"O" RING - wheels & hubs for use with loader

2шт.

52

O7059AB

X

RETAINER - oil seal, wheels & hubs for use with loader

2шт.

52

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4" x 5/8" flat hd., wheels & hubs for use with loader

10шт.

54

O7058AB

X

OIL SEAL, wheels & hubs for use with loader

2шт.

55

G12050M

WEIGHT SET - front wheel, for use with Loader, Includes: Ref. 56 - 59, wheels & hubs for use with loader

1шт.

56

NSS

NOT SOLD SEPARAT

WEIGHT - (Casting G1082) Order G12050M, wheels & hubs for use with loader

2шт.

57

11-848

BOLT - 1/2" x 3" rd. hd. sq. neck, wheels & hubs for use with loader

8шт.

58

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, wheels & hubs for use with loader

8шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Wheels & hubs for use with loader 1/2"

8шт.
