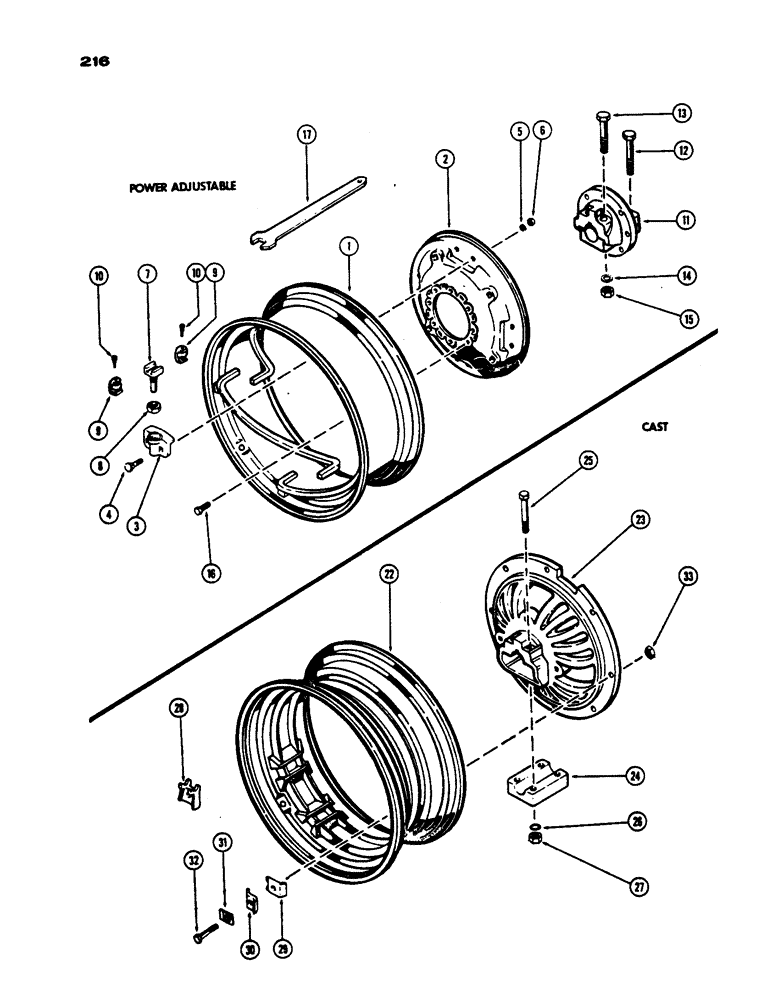

Запчасти Case IH 530 (216) - POWER ADJUSTED REAR WHEELS, CAST REAR WHEELS, PRIOR TO S/N 8262800 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
G12074
X
WHEEL ASSY. - rear, Includes: Ref. 1 - 10
2шт.
1
G13266
RIM - (Takes 12.4/11 x 28 tire)
1шт.
2
G15440
WHEEL
- center disc
1шт.
3
G15443
BODY,2" L
- jack screw
4шт.
4
111-600
BOLT - jack body (5/8 x 1-1/2" N.C. carr.)
8шт.
5
192-25
LOCK WASHER,5/8"
WASHER, LOCK, , Jack body bolt 5/8"
8шт.
6
129-107
NUT,5/8"-11, G5
Jack body bolt 5/8"-11, G5
8шт.
7
G15444
JACK SCREW,7/8" - 14 x 2.85"
- jack
4шт.
8
G15445
NUT
- lock, jack screw
4шт.
9
A9406
STOP
BODY - wheel stop
2шт.
10
A9440
STOP
SCREW - lock, stop body
2шт.
11
G1087
X
HUB - rear wheel
2шт.
12
G10841
BOLT
BOLT - hub, inner (3/4 x 4-1/2" N.F. hex)
4шт.
13
G10840
BOLT
- hub, outer (3/4 x 3-3/4" N.F. hex)
4шт.
14
193-35
LOCK WASHER,Int Tooth, 3/4"
WASHER, LOCK, Int Tooth, 3/4"
8шт.
15
G10842
NUT
WASHER - hub bolts (3/4" N.F. hex)
8шт.
16
O30739HT
X
BOLT - wheel to hub (9/16 x 1-5/32" N.F. spec. hd.)
16шт.
17
G15024
WRENCH - screw jack
1шт.
22
G45104
RIM - cast rear wheels (Takes 13.6 x 28 or 14.9/13 x 28 tire)
2шт.
G14322
WHEEL ASSY. - center disc, cast rear wheels, Includes: Ref. 23 - 27
2шт.
23
NSS
NOT SOLD SEPARAT
WHEEL - (Order G14322), cast rear
1шт.
24
G1265
CLAMP - hub half, cast rear wheels
1шт.
25
G49047
BOLT
- hub clamp (3/4 x 5" N.F. hex), cast rear wheels
4шт.
26
193-35
LOCK WASHER,Int Tooth, 3/4"
WASHER, LOCK, , Cast rear wheels Int Tooth, 3/4"
4шт.
27
G10842
NUT
- (3/4" N.F. hex), cast rear wheels
4шт.
28
6487A
X
CLAMP - rim drive, cast rear wheels
4шт.
29
O10854AB
X
CLAMP - rim mounting (female), cast rear wheels
12шт.
30
O10855AB
X
CLAMP - rim mounting (male), cast rear wheels
12шт.
31
4936AA
LUG - locking, rim clamp bolt, cast rear wheels
16шт.
31
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
Rim clamps, cast rear wheels Hex, 5/8"-11 x 3", G5
16шт.
33
O7243AB
X
NUT - rim clamp bolts (5/8" N.C. hex), cast rear wheels
16шт.
Выбрано товаров: 31
